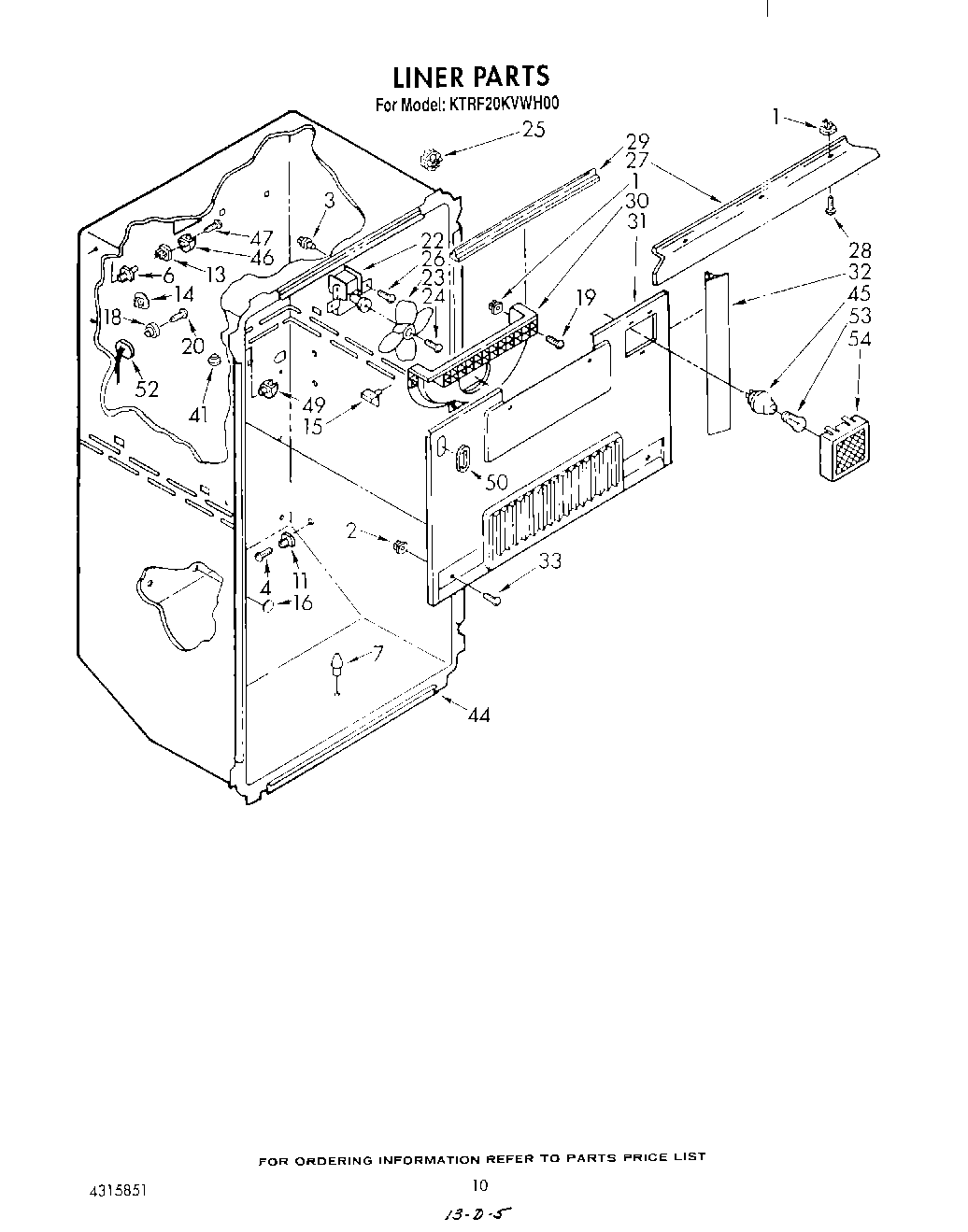

KTRF20KVWH00 06 – LINER

Products

Position	Product
1	Grommet
2	Grommet
3	Screw, Grommet
4	Screw, 8-15 x 1
6	Stud
7	Grommet, Crisper Cover
11	Stud, Shelf
13	Screw Grommet
14	Hole, Plug
15	Retainer, Stud (4)
16	Hole, Plug
17	Screw, Anchor (3)
18	Receptacle Cap
19	WP489478 Whirlpool Refrigerator Screw
19	SCREW
20	WP489069 Whirlpool Compactor Screw
22	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
23	WP1100938 Whirlpool Refrigerator Fan Blade
24	WP487887 Whirlpool Refrigerator Screw
25	Grommet
26	WP488488 Whirlpool Refrigerator Screw
27	Baffle, Liner Top
29	Gasket, Sealing
30	Scroll, Fan
31	Cover, Evaporator
32	Gasket, Evaporator
41	Grommet
44	Liner (Not A Serviceable Part)
45	Socket
46	Shelf Stud, Saddle L.S.
47	WP488729 Whirlpool Refrigerator Door Screw
49	Shelf Stud Saddle (R.S.)
50	Hole Plug, Evaporator
52	Wiring, Ice Maker
53	W11679940 Whirlpool Refrigerator Light Bulb Assembly
54	Light Lens
