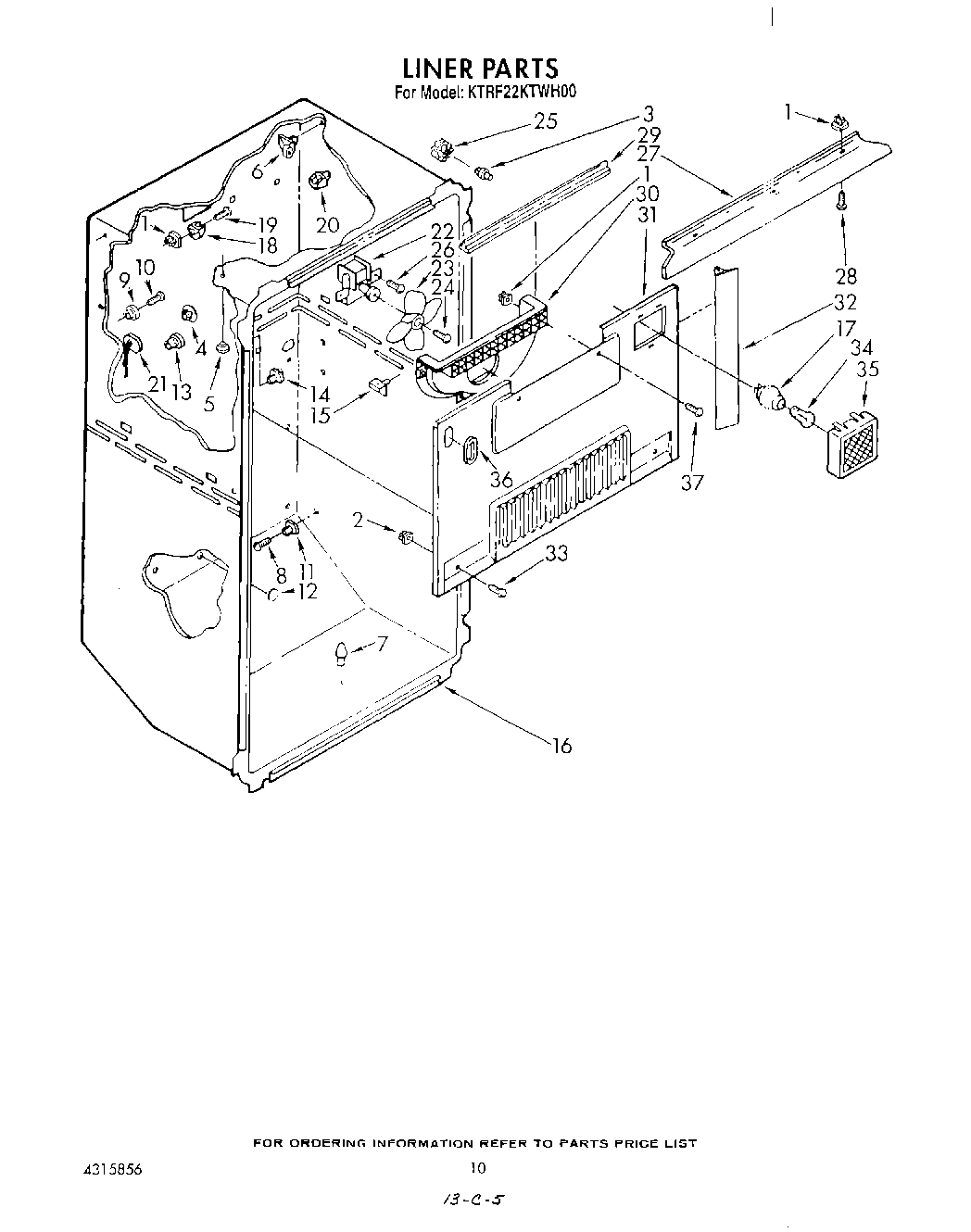

KTRF22KTPL00 07 – LINER

Products

Position	Product
1	Grommet
2	Grommet
3	Screw, Grommet
4	Hole, Plug
5	Grommet
6	Stud, Support (2)
7	Grommet, Crisper Cover
8	Screw, 8-15 x 1
9	Receptacle Cap
10	WP489069 Whirlpool Compactor Screw
11	Stud, Shelf
12	Hole, Plug
13	Screw Grommet
14	Shelf Stud
15	Retainer, Stud (4)
16	Liner (Not A Serviceable Part)
17	Socket
18	Shelf Stud, Saddle L.S.
19	WP488729 Whirlpool Refrigerator Door Screw
20	Shelf Stud Saddle (R.S.)
21	Wiring, Ice Maker
22	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
23	WP1100938 Whirlpool Refrigerator Fan Blade
24	WP487887 Whirlpool Refrigerator Screw
25	Grommet
26	WP488488 Whirlpool Refrigerator Screw
27	Baffle, Liner Top
29	Gasket, Sealing
30	Scroll, Fan
31	Cover, Evaporator
32	Gasket, Evaporator Cover
34	RANGE ONLY 40W 120V APPL BULB
35	Light Lens
36	Hole Plug, Evaporator
37	W11624204 Whirlpool Screw
