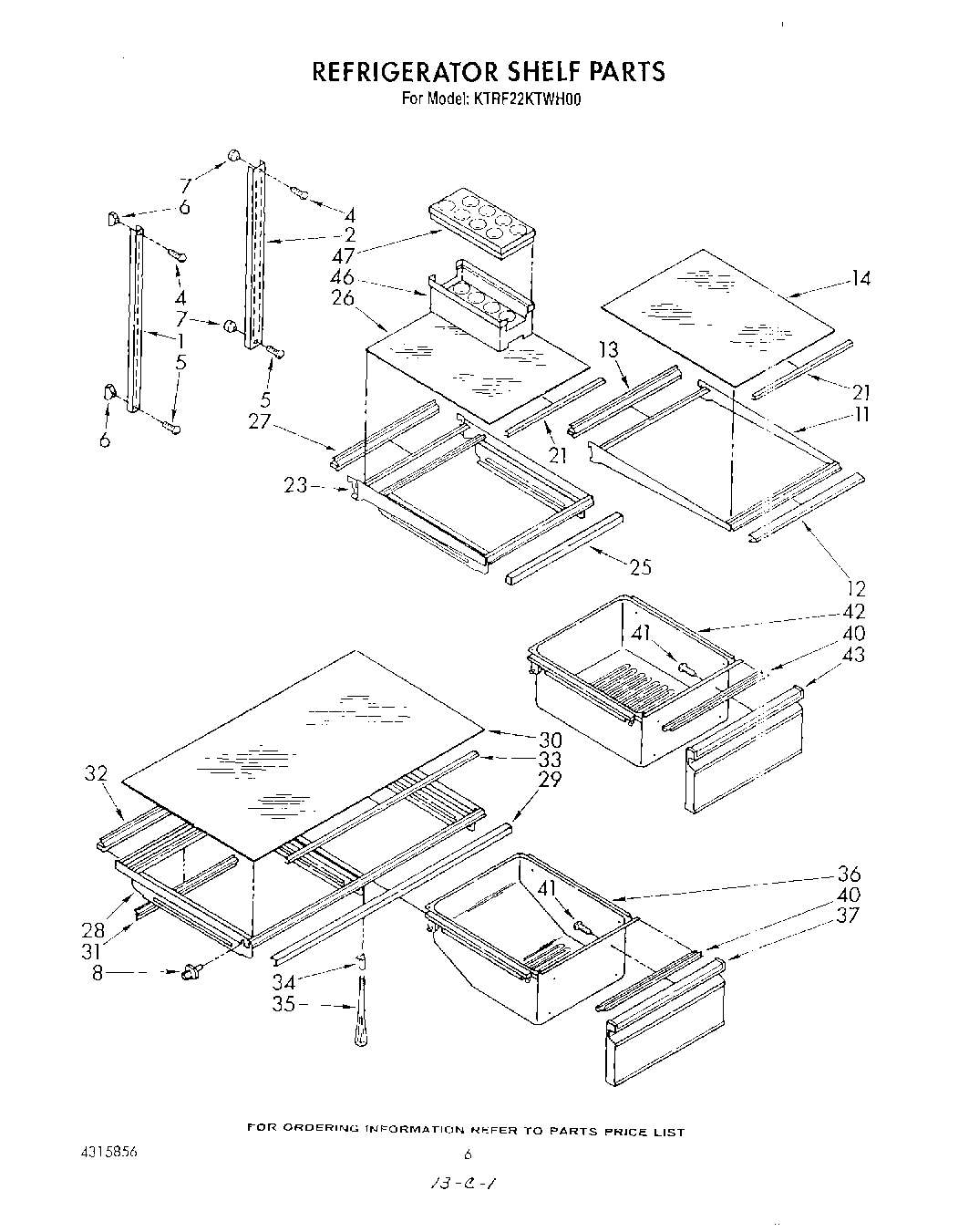

KTRF22KTWH00 04 – REFRIGERATOR SHELFadmin2025-04-26T12:30:53+00:00KTRF22KTWH00 04 – REFRIGERATOR SHELF
Products
| Position | Product |
|---|
| 1 | Ladder, Shelf (Side) (2) |
| 2 | Ladder (Center) |
| 4 | Screw, (Repair) 10 x 1 1/4 |
| 4 | Screw, 8 x 1-1/4 (3) |
| 5 | Screw, 8-32 x 1-1/4 |
| 5 | Screw (Repair) |
| 6 | 520965 Whirlpool Refrigerator Support |
| 7 | Screw Support, Center Ladder (2) |
| 8 | Shelf, Stud (2) |
| 11 | Shelf, Cantilever |
| 12 | Trim, Shelf |
| 13 | Reflector, Cantilever |
| 14 | Glass, Cantilever |
| 21 | Shelf Gasket, Glass |
| 23 | Met Pan, Shelf Cantilever |
| 25 | Trim, Frame |
| 26 | Glass, Meat Pan |
| 27 | Reflector, Cantilever Shelf |
| 28 | Crisper Cover, Frame |
| 29 | Trim, Frame |
| 30 | Glass, Crisper Cover |
| 31 | Crisper Gasket, Rear |
| 32 | Reflector, Glass Shelf |
| 33 | Shelf Gasket, Glass |
| 34 | Support, Cover |
| 35 | Post, Cover |
| 36 | Crisper Pan (2) |
| 37 | Front Cover, Crisper (2) |
| 40 | Crisper Gasket, Front |
| 41 | WP488729 Whirlpool Refrigerator Door Screw |
| 42 | Meat Pan |
| 43 | Front Cover, Meat Pan |
| 46 | Egg Container, Bottom |
| 47 | Egg Container, Top |
