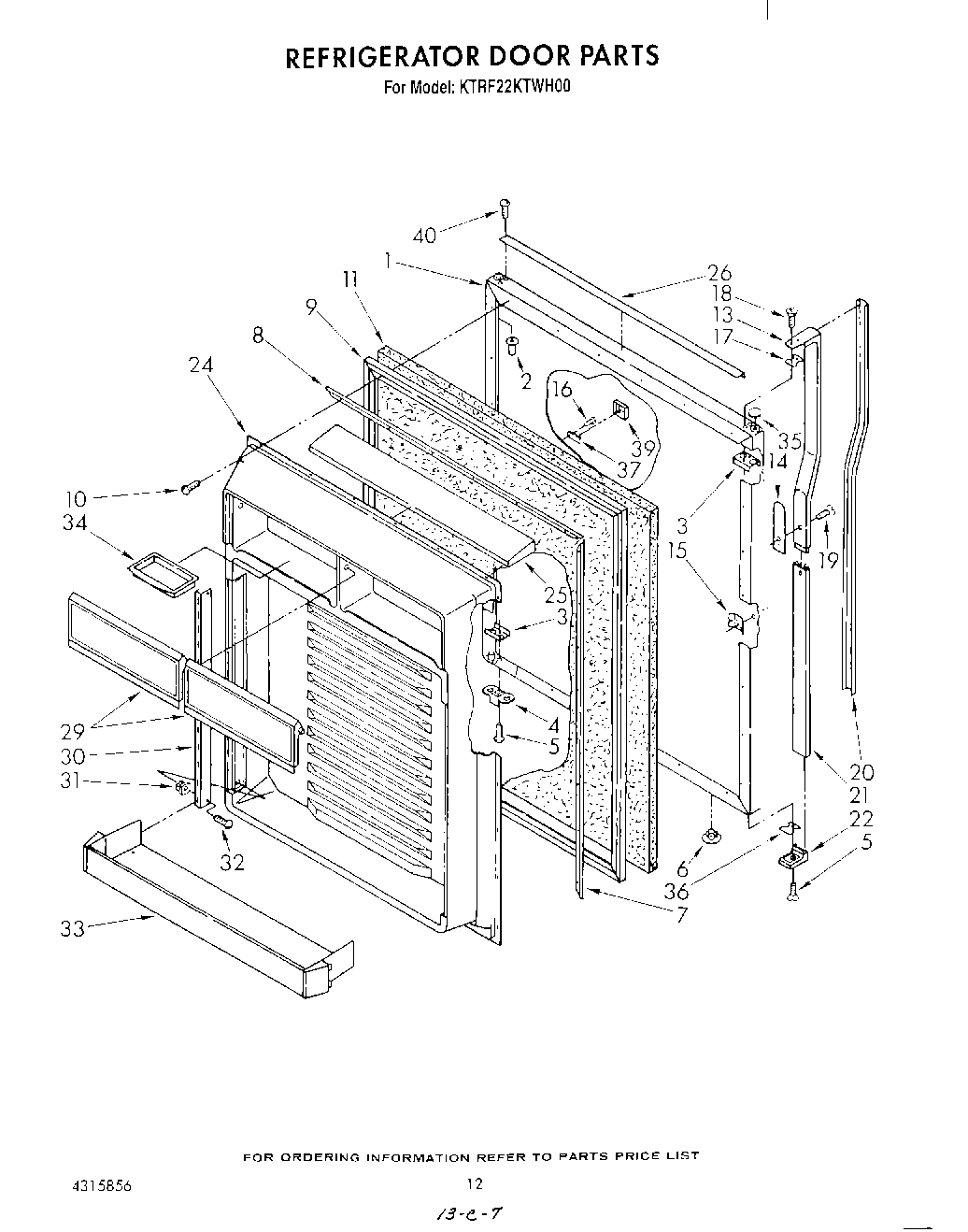

KTRF22KTWH00 09 – REFRIGERATOR DOOR , NOT ILLUSTRATED

KTRF22KTWH00 09 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Written by

in

KTRF22KTWH00 09 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350942 Whirlpool Spray Paint
	Paint, Spray (13 Oz.) (Platinum)
	WPL LIT4315856
	WPL LIT1117797
	Torx Key
	Leveler (Thinner)
	WPL LIT1117590
	WPL LIT1117302
	285006 Whirlpool Spray
	350956 Whirlpool Spray Assembly
	Toast
1	Refrigerator Door Panel (Toast)
1	Refrigerator Door Panel (Platinum) (Also Order Item 11)
1	Refrigerator Door Panel (White)
1	Refrigerator Door Panel (Almond)
2	Cap, Hinge Sleeve (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	Hole Plug (2) (Platinum)
6	Hole Plug (2) (Almond)
6	Hole Plug (2)
6	Hole Plug (2) (Toast)
7	Retainer, Gasket Side
8	Retainer, Gasket Top
9	Door, Gasket Magnetic
10	WP489069 Whirlpool Compactor Screw
10	SCREW
13	Handle
14	Spacer, Handle
15	WP939101 Whirlpool Refrigerator Plate
16	WP488729 Whirlpool Refrigerator Door Screw
17	Spacer
18	Screw (Repair)
18	WP488920 Whirlpool Refrigerator Screw
20	Insert, Handle
21	Retainer, Insert (Bottom)
22	Handle End
24	Interior, Door Panel
25	Support, Door Dike
26	Trim, Door
29	Door, Utility
30	Shelf Ladder, Door
31	Expansion Clip
33	Cantilever, Door Shelf
35	Hole Plug (Almond)
35	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
35	Hole Plug (Toast)
35	Hole Plug (Platinum)
36	Shim, End Cap
37	Clip, Medallion
39	Handle Plug (White)
39	Handle Plug (Toast)
39	Handle Plug (Platinum)
39	Handle Plug (Almond)
40	72113 Whirlpool Touch-Up Paint
40	Enamal, Toast (1 Qt. Uncut)
40	Almond (Uncut)
40	WPL 876029
40	WP72107 Whirlpool Touchup
40	799344 Whirlpool Refrigerator Paint
40	72017 Whirlpool Appliance Touch-Up Paint White
40	72032 Whirlpool Touch Up Paint Black
40	Platinum (Uncut)
40	WPL 72112
40	WPL 799832
40	WPL 799833
40	Screw (Repair)
40	Enamel, Black (1 Qt. Uncut)
40	CEMENT, ALUMILASTIC (1 1/4 OZ.)
40	TAPE, VINYL (3/4 X 108“)
40	WP542638 Whirlpool Refrigerator Grease
40	WP505587 Whirlpool Refrigerator Sealer
40	WP503695 Whirlpool Refrigerator Sealer
40	606755 Whirlpool Refrigerator Bag
40	511873 Whirlpool Refrigerator Paint
40	212643 Whirlpool Refrigerator Permagum Sealer
40	876370 Whirlpool Refrigerator Insulation
