KTRF22MSTOY0 05 – FREEZER SHELF

KTRF22MSTOY0 05 – FREEZER SHELF

Written by

in

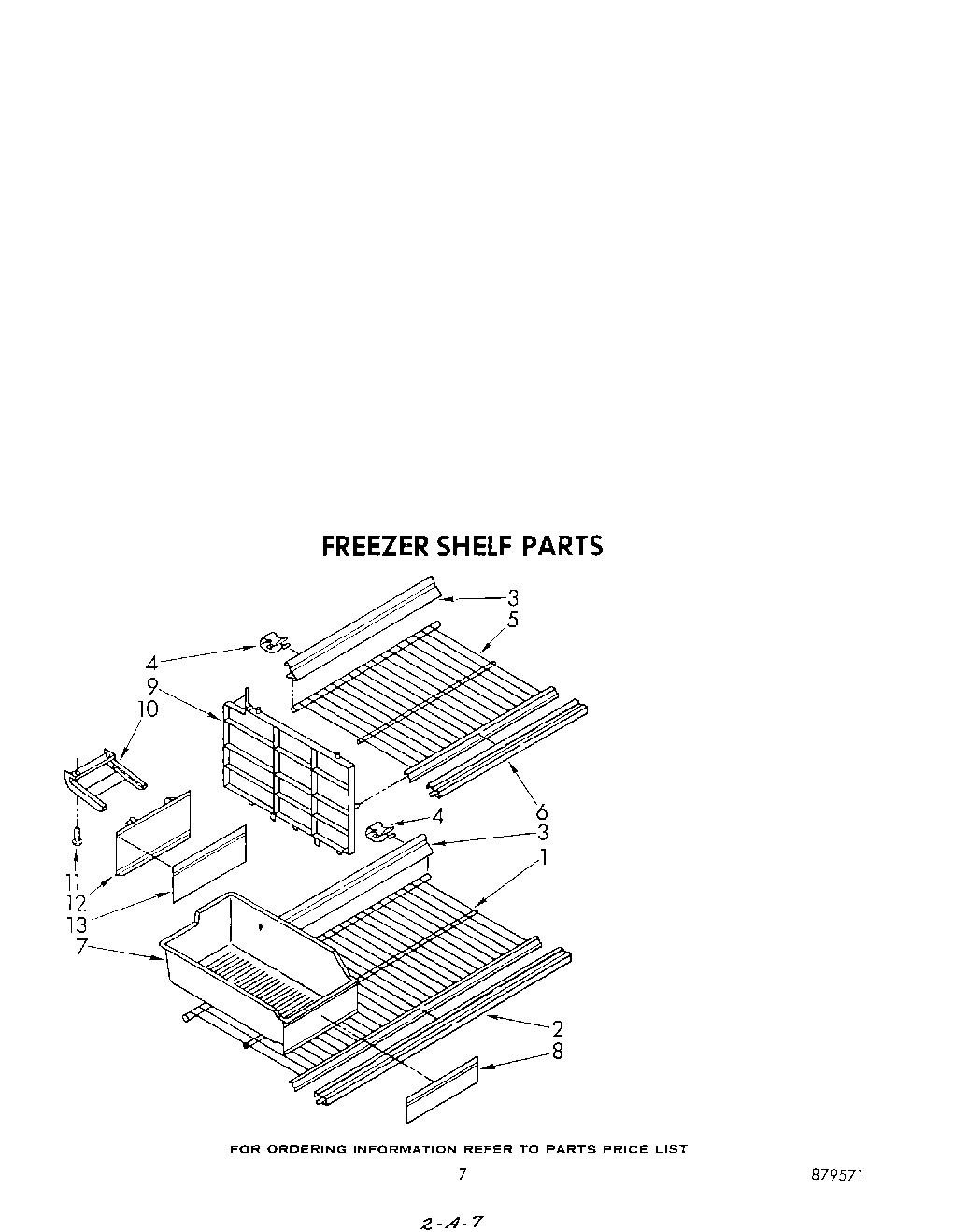

KTRF22MSTOY0 05 – FREEZER SHELF

Products

PositionProduct
1Shelf, Freezer (Lower)
2Trim, Shelf Front
3Reflector, Shelf
4Clip, Reflector
5Shelf, Freezer (Upper)
6Trim, Shelf Front
7Ice Cube, Pan
8Overlay, Ice Cube Pan
9Ice Compartment Slide
10Slide, Ice Compartment
11WP489069 Whirlpool Compactor Screw
12Front, Ice Compartment
13Overlay, Ice Compartment
