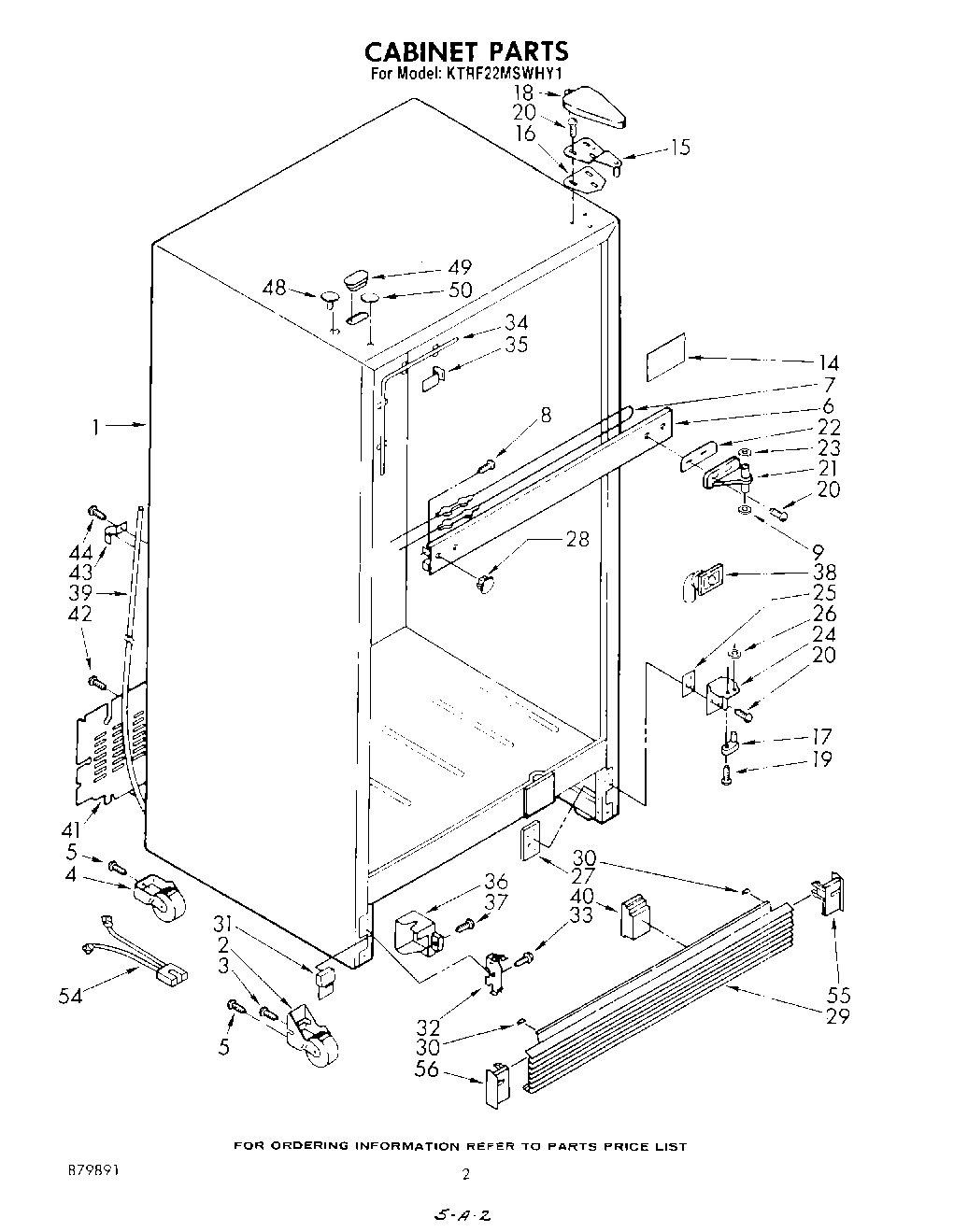

KTRF22MSTOY1 02 – CABINET
Written by
in
KTRF22MSTOY1 02 – CABINET
Products
Position
Product
1
Cabinet (Not A Serviceable Part)
2
Roller, Front
3
Screw, 5/16-24 x 1
4
WPW10250570 Whirlpool Refrigerator Cabinet Roller
5
Screw, 1/4-28 x 1/2 (2)
6
WPL 1100303
6
Center Rail (Almond)
6
WPL 1100304
6
Center Rail (White)
7
Heater, Mullion
8
Screw, 8 x 3/8
9
WP487802 Whirlpool Refrigerator Washer
9
Screw (Repair)
14
Seal, Strip
15
Hinge, Top
16
Shim, Hinge
17
Hinge Pin, Bottom
18
Hinge Cover (Toast)
18
1119787 Whirlpool Refrigerator Hinge Cover
19
Screw 10-32 x 5/16
20
WP999367 Whirlpool Refrigerator Screw
20
Screw (Repair)
21
Hinge, Center
22
Shim, Hinge Center
23
WP488296 Whirlpool Washer Refrigerator
24
Hinge, Bottom
25
Shim, Bottom Hinge
27
Tap Plate
28
Hole, Plug (Almond)
28
Plug, Hole (2) (Toast)
28
Hole, Plug (White)
28
Hole Plug (2) (Platinum)
29
Grille
30
Bumper, Grille (2)
31
Filler, Grille
32
WPL 989068
33
W11624204 Whirlpool Screw
34
Heater, Stile
35
WPL 935663
36
WPL 549947
37
WP488729 Whirlpool Refrigerator Door Screw
38
WPL 841687
39
8316810 Whirlpool Refrigerator Drain Tube
40
Insert, Air Baffle Grille
41
WPL 850459
43
WPL 836077
44
WP489069 Whirlpool Compactor Screw
46
Air Duct, Seal
48
Hole Plug (Almond)
48
Hole, Plug (White)
48
Hole, Plug (Platinum)
48
Hole, Plug (Toast)
49
Hole Plug (Toast)
49
Hole Plug (Platinum)
49
Hole Plug (White)
49
Hole Plug (Almond)
50
Hole Plug (3) (Toast)
50
Hole Plug (3) (Platinum)
50
Hole Plug (2) (Almond)
50
Hole Plug (2) (White)
54
WPL 548734
55
Grille, End Cap (R.S)
56
Grille, End Cap (L.S.)
←
