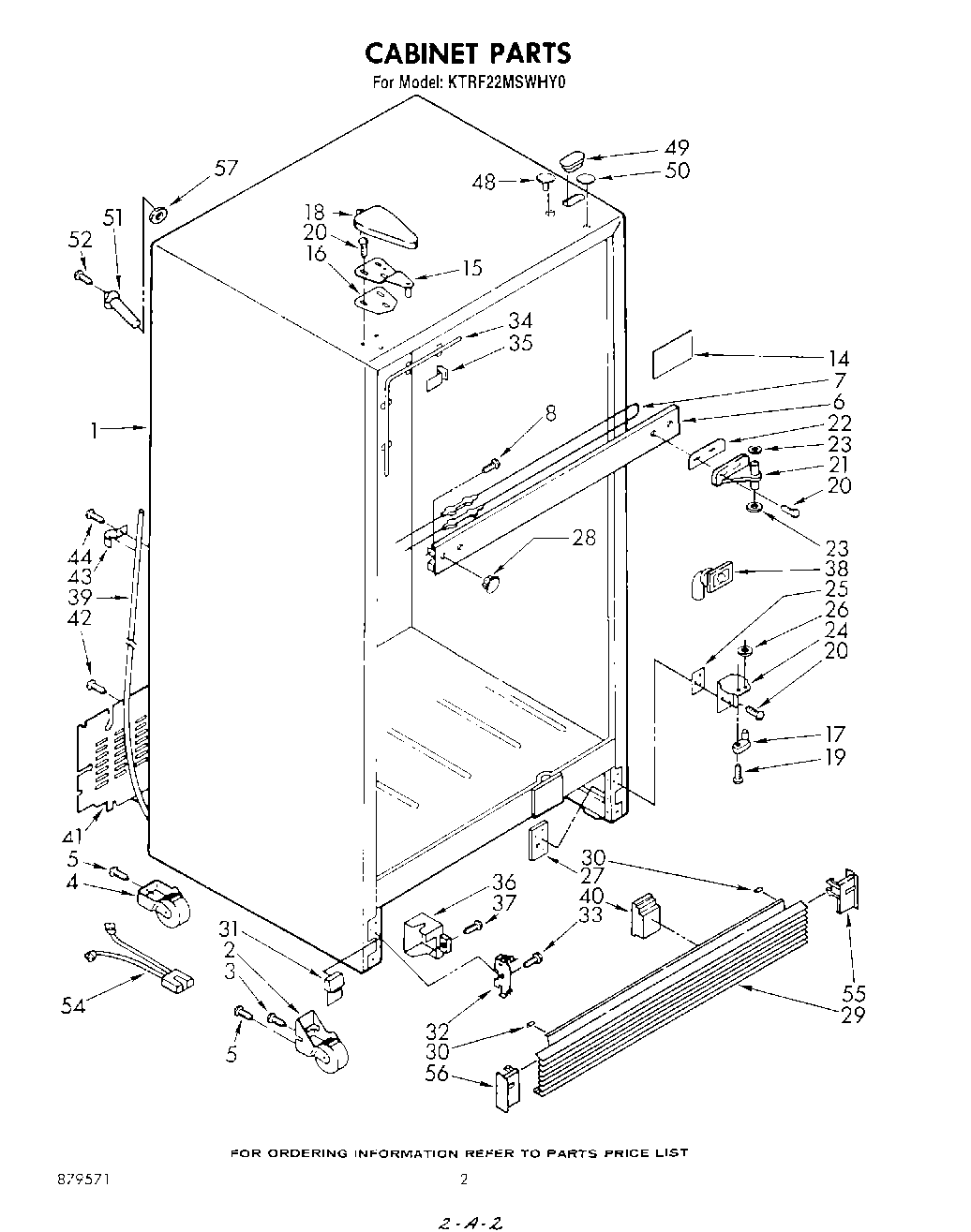

KTRF22MSWHY0 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Center Rail (Almond)
6	Center Rail (Golden Harvest)
6	Center Rail (Coffee)
6	Center Rail (White)
6	WPL 1100304
6	WPL 1100303
7	Heater, Mullion
8	Screw, 8 x 3/8
8	Screw (Repair)
14	Seal, Strip
15	Hinge, Top
16	Shim, Hinge
17	Hinge Pin, Bottom
18	1119787 Whirlpool Refrigerator Hinge Cover
18	Hinge Cover (Toast)
19	Screw 10-32 x 5/16
20	WP999367 Whirlpool Refrigerator Screw
20	Screw (Repair)
21	Hinge, Center
22	Shim, Hinge Center
23	WP488296 Whirlpool Washer Refrigerator
24	Hinge, Bottom
25	Shim, Bottom Hinge
26	WP487802 Whirlpool Refrigerator Washer
27	Tap Plate
28	Hole Plug (2) (Platinum)
28	Hole, Plug (White)
28	Hole, Plug (Almond)
28	Plug, Hole (2) (Toast)
29	Grille
30	Bumper, Grille (2)
31	Filler, Grille
32	WPL 989068
33	W11624204 Whirlpool Screw
34	Heater, Stile
35	WPL 935663
36	WPL 549947
37	WP488729 Whirlpool Refrigerator Door Screw
38	WPL 841687
39	8316810 Whirlpool Refrigerator Drain Tube
40	Insert, Air Baffle Grille
41	WPL 850459
43	WPL 836077
44	WP489069 Whirlpool Compactor Screw
46	Air Duct, Seal
48	Hole Plug (Almond)
48	Hole, Plug (White)
48	Hole, Plug (Platinum)
48	Hole, Plug (Toast)
49	Hole Plug (Toast)
49	Hole Plug (Platinum)
49	Hole Plug (White)
49	Hole Plug (Almond)
50	Hole Plug (3) (Toast)
50	Hole Plug (2) (White)
50	Hole Plug (3) (Platinum)
50	Hole Plug (2) (Almond)
51	WP2196157 Whirlpool Fill Tube
52	WP98165 Whirlpool Screw
54	WPL 548734
55	Grille, End Cap (R.S)
56	Grille, End Cap (L.S.)
57	WP1106508 Whirlpool Refrigerator Gasket
