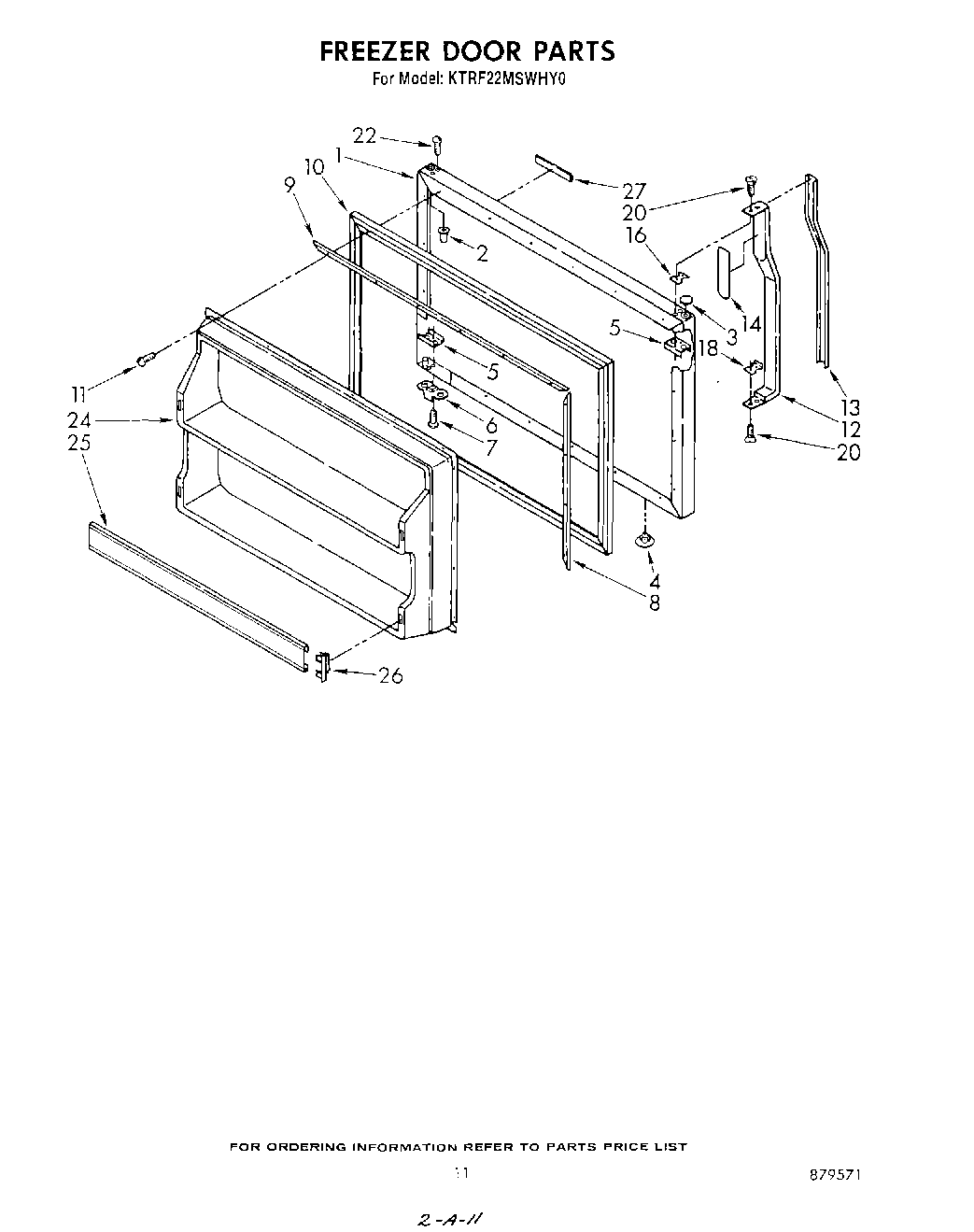

KTRF22MSWHY0 08 – FREEZER DOOR

KTRF22MSWHY0 08 – FREEZER DOOR

Written by

in

KTRF22MSWHY0 08 – FREEZER DOOR

Products

PositionProduct
1Freezer, Door Panel (Toast)
1Freezer, Door Panel (Platinum) (Also Order Item 15)
1Freezer, Door Panel (Almond)
1Freezer, Door Panel (White)
2Cap, Hinge Sleeve (2)
3Hole Plug (Platinum)
3Hole Plug (Toast)
3Hole Plug (Almond)
3WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
4Hole Plug (2) (Almond)
4Hole Plug (2) (Platinum)
4Hole Plug (2)
4Hole Plug (2) (Toast)
5W10833053 Whirlpool Refrigerator Plate
6Bracket, Door Stop
7Screw (Repair)
7WP488921 Whirlpool Refrigerator Screw
8Retainer, Gasket Side
9Retainer, Gasket Top
10Door Gasket, Magnetic
11SCREW
11WP489069 Whirlpool Compactor Screw
12Handle Center
13Insert Handle (Black) (For Platinum Model)
13Insert Handle
14Spacer, Handle
16Spacer, Handle
18Spacer
20WP488920 Whirlpool Refrigerator Screw
20Screw (Repair)
22WP8281206 Whirlpool Refrigerator Screw
24Interior Door Panel Freezer Model Only)
25Trim, Door Shelf
26Retainer, Door Trim (2)
27Insert, Nameplate
