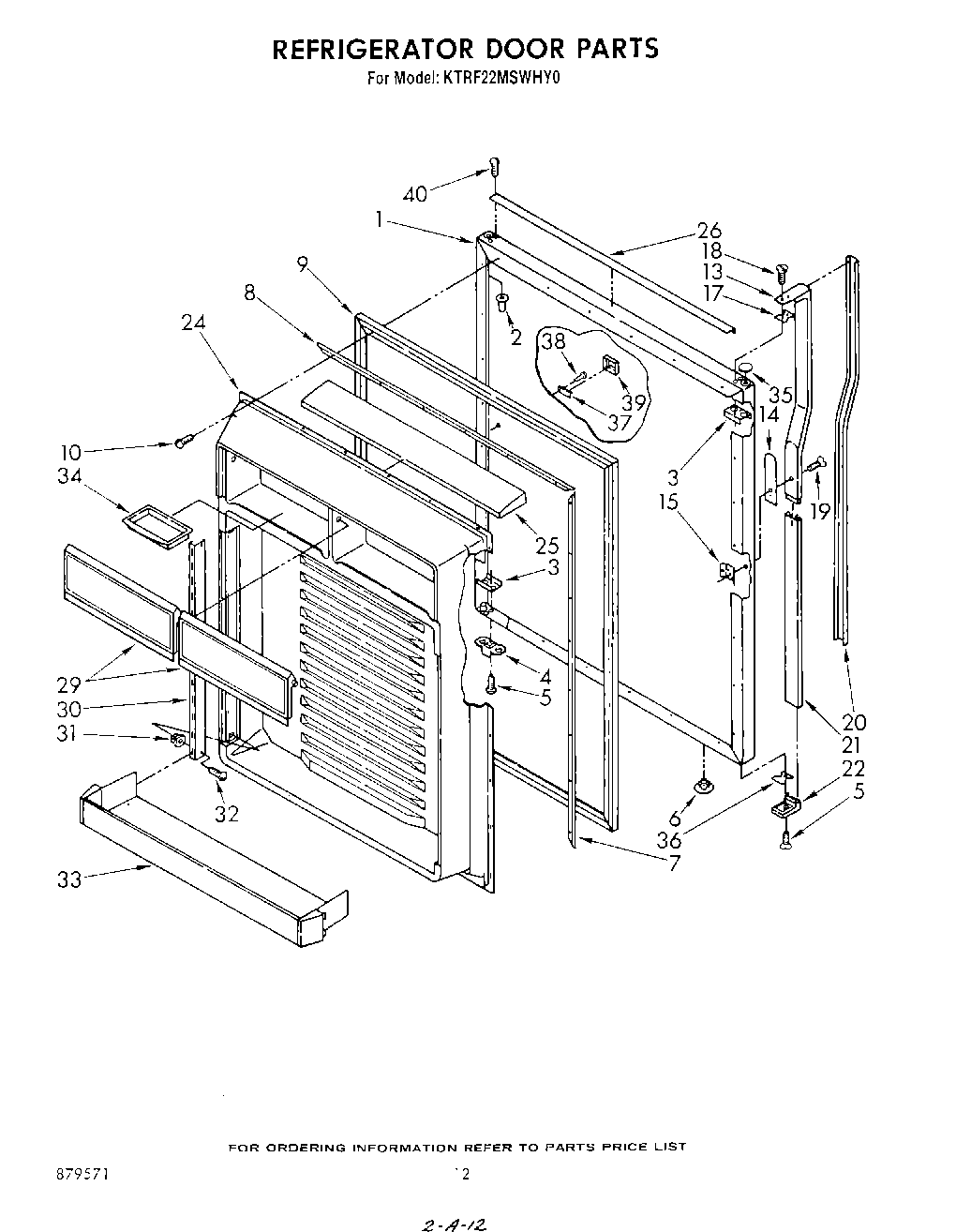

KTRF22MSWHY0 09 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Toast)
1	Refrigerator Door Panel (Platinum) (Also Order Item 11)
1	Refrigerator Door Panel (Almond)
1	Refrigerator Door Panel (White)
2	Cap, Hinge Sleeve (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
5	Screw (Repair)
6	Hole Plug (2) (Toast)
6	Hole Plug (2) (Platinum)
6	Hole Plug (2)
6	Hole Plug (2) (Almond)
7	Retainer, Gasket Side
8	Retainer, Gasket Top
9	Door, Gasket Magnetic
10	SCREW
10	WP489069 Whirlpool Compactor Screw
13	Handle
14	Spacer, Handle
15	WP939101 Whirlpool Refrigerator Plate
17	Spacer
18	WP488920 Whirlpool Refrigerator Screw
18	Screw (Repair)
20	Insert, Handle
20	Insert, Handle (Black) (For Platinum Model)
21	Retainer, Insert (Bottom)
22	Handle End
24	Interior, Door Panel
25	Support, Door Dike
26	Trim, Door
29	Door, Utility
30	Shelf Ladder, Door
31	Expansion Clip
33	Cantilever, Door Shelf
35	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
35	Hole Plug (Almond)
35	Hole Plug (Platinum)
35	Hole Plug (Toast)
36	Shim, End Cap
37	Clip, Medallion
38	WP488729 Whirlpool Refrigerator Door Screw
39	Handle Plug (Almond)
39	Handle Plug (Platinum)
39	Handle Plug (Toast)
39	Handle Plug (White)
40	WP8281206 Whirlpool Refrigerator Screw
