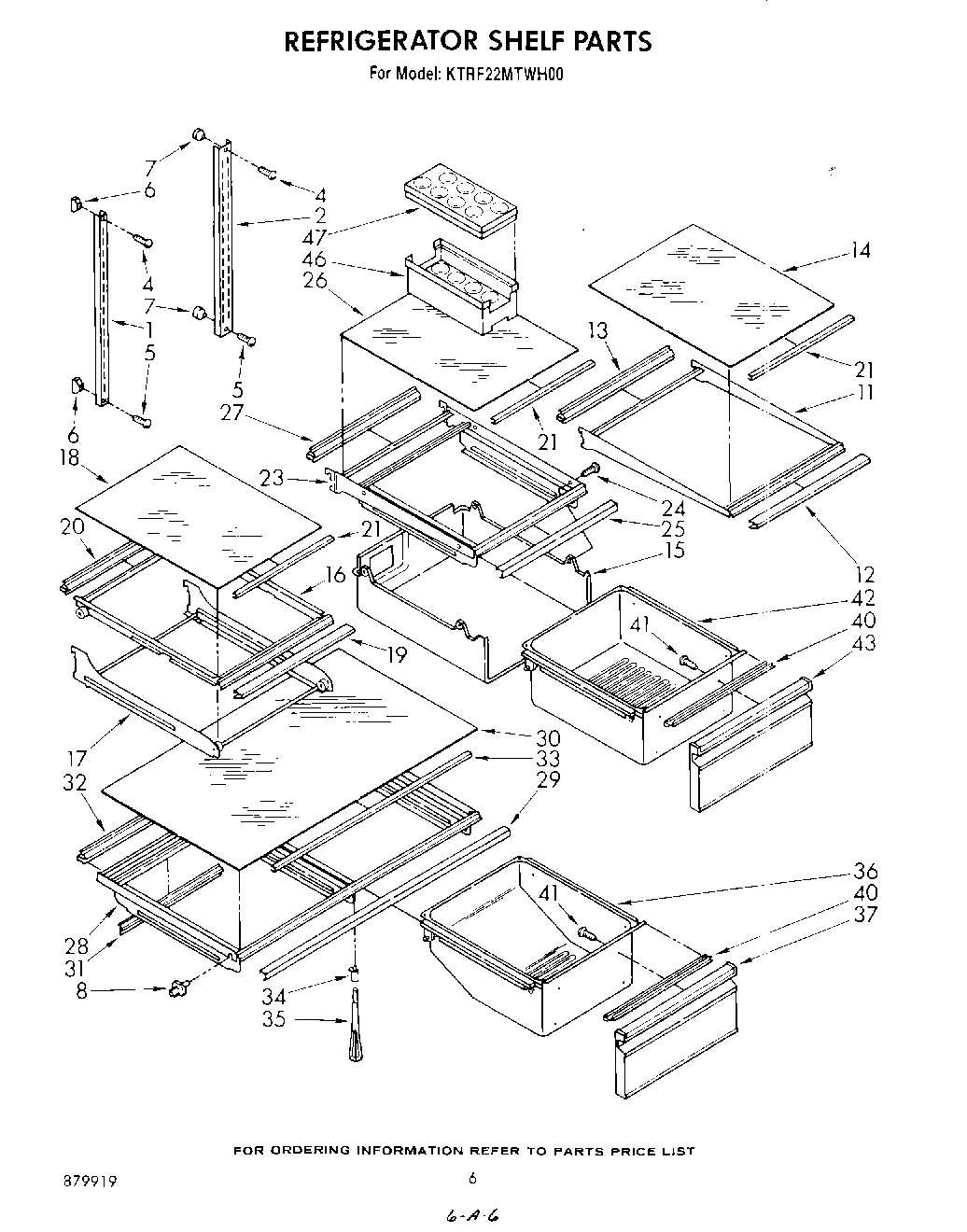

KTRF22MTAL00 04 – REFRIGERATOR SHELF

Products

Position	Product
1	Ladder, Shelf (Side) (2)
2	Ladder (Center)
4	Screw, 8 x 1-1/4 (3)
4	Screw, (Repair) 10 x 1 1/4
5	Screw, 8-32 x 1-1/4
5	Screw (Repair)
6	520965 Whirlpool Refrigerator Support
7	Screw Support, Center Ladder (2)
8	Shelf, Stud (2)
11	Shelf, Cantilever
13	Reflector, Cantilever
14	Glass, Cantilever
15	Meat, Pan Housing
16	Roll Out, Shelf
17	Frame-Cantilever, Shelf
18	Glass, Shelf
19	Trim, Shelf
20	Reflector, Glass Shelf
21	Shelf Gasket, Glass
23	Met Pan, Shelf Cantilever
24	WPL 489085
25	Trim, Frame
26	Glass, Meat Pan
27	Reflector, Cantilever Shelf
28	Crisper Cover, Frame
29	Trim, Frame
30	Glass, Crisper Cover
31	Crisper Gasket, Rear
32	Reflector, Glass Shelf
33	Shelf Gasket, Glass
34	Support, Cover
35	Post, Cover
36	Crisper Pan (2)
37	Front Cover, Crisper (2)
40	Crisper Gasket, Front
41	WP488729 Whirlpool Refrigerator Door Screw
42	Meat Pan
43	Front Cover, Meat Pan
46	Egg Container, Bottom
47	Egg Container, Top
