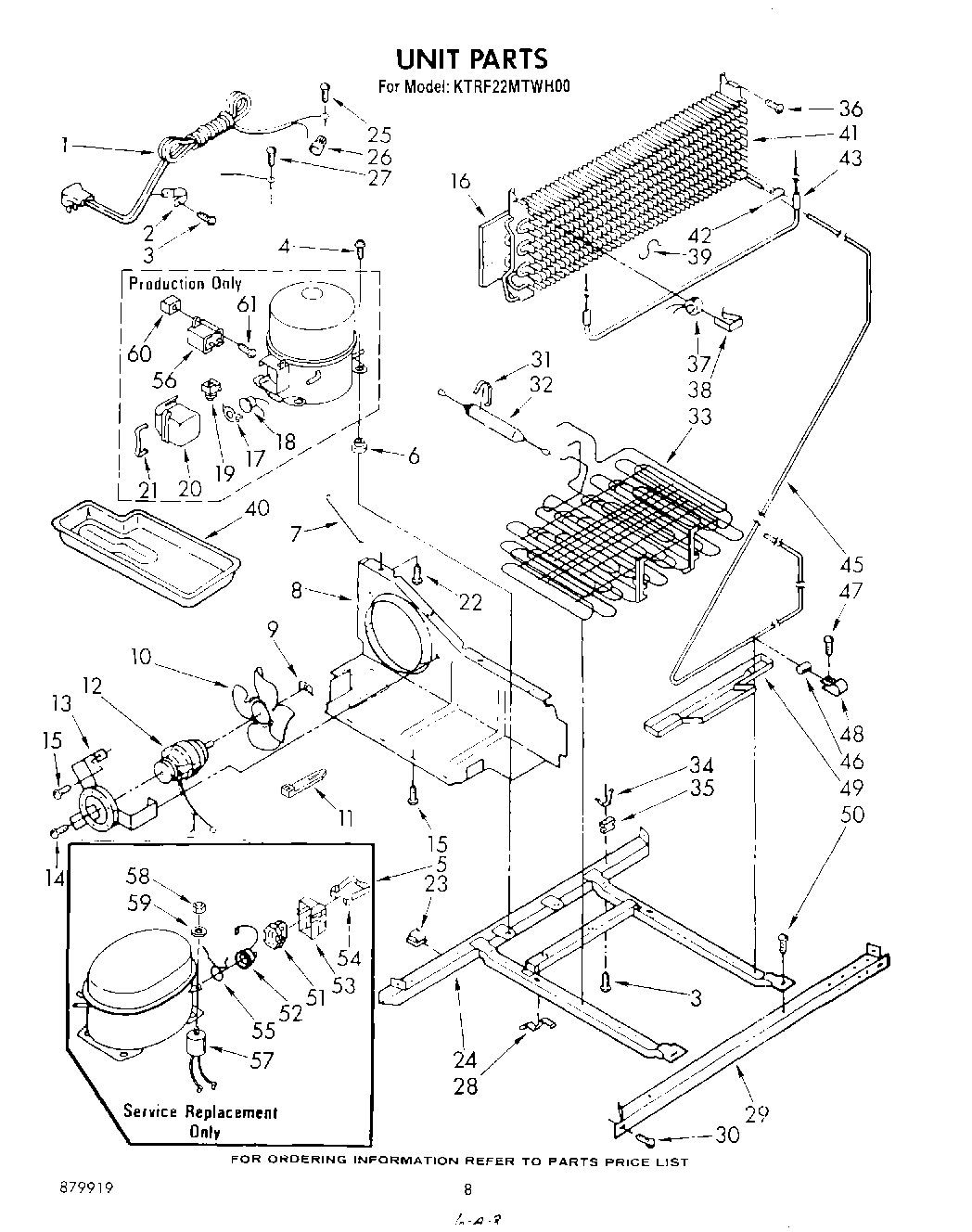

KTRF22MTWH00 06 – UNIT

Products

Position	Product
1	Cord, Service
2	549193 Whirlpool Refrigerator Power Clamp
3	W11624204 Whirlpool Screw
5	Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 58) (Also Order)
6	876811 Whirlpool Grommet
7	Guard, Fan
8	Baffle, Air
9	WP486692 Whirlpool Refrigerator Nut
10	Fan, Blade
11	Strap
12	833697 Whirlpool Condenser Fan Motor
13	Bracket, Motor
14	681390 Whirlpool Refrigerator Screw
15	Screw, 8 x 3/8
16	Baffle, Air
17	Overload Spring
18	Overload
19	Relay
20	Case, Relay
21	Spring, Case
22	Screw, 8-15 x 3/8
23	Clip, Wire (2)
24	Frame
25	Screw, 8-32 x 3/8
26	Wire Connector
27	303776 Whirlpool Dishwasher Screw
28	Clip (2)
29	Rail, Front
30	489340 Whirlpool Refrigerator Screw
31	Clamp
32	W10843121 Whirlpool Refrigerator Tube
33	Condenser & Precooler Assembly
34	Clamp (4)
35	Grommet (4)
37	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
38	Clamp
39	Support, Heater
40	Tray, Evaporator
41	Evaporator
42	Clip, Heater (2)
43	Heater, Defrost
45	Exchanger, Heat
46	Dampener (2)
47	WPW10141625 Whirlpool Refrigerator Screw Assembly
48	Clamp Tube
49	Pan, Drip
50	Screw, 1/4-28 x 1/2 (2)
51	WP2262181 Whirlpool Refrigerator Start Relay
52	Overload
53	Cover, Terminal
54	Strap
55	Overload Spring
56	WPW10662129 Whirlpool Refrigerator Run Capacitor
57	Capacitor
58	Nut
59	Washer
60	Screw Grommet
61	VALVE, ACCESS (5/8“)
61	W11693756 Whirlpool Screw Assembly
61	978026 Whirlpool Refrigerator Primary Valve
61	978027 Whirlpool Refrigerator Primary Valve
61	978030 Whirlpool Refrigerator Valve
61	WP978025 Whirlpool Refrigerator Valve
61	VALVE, ACCESS (1/2“)
61	876764 Whirlpool Refrigerator Primary Valve
