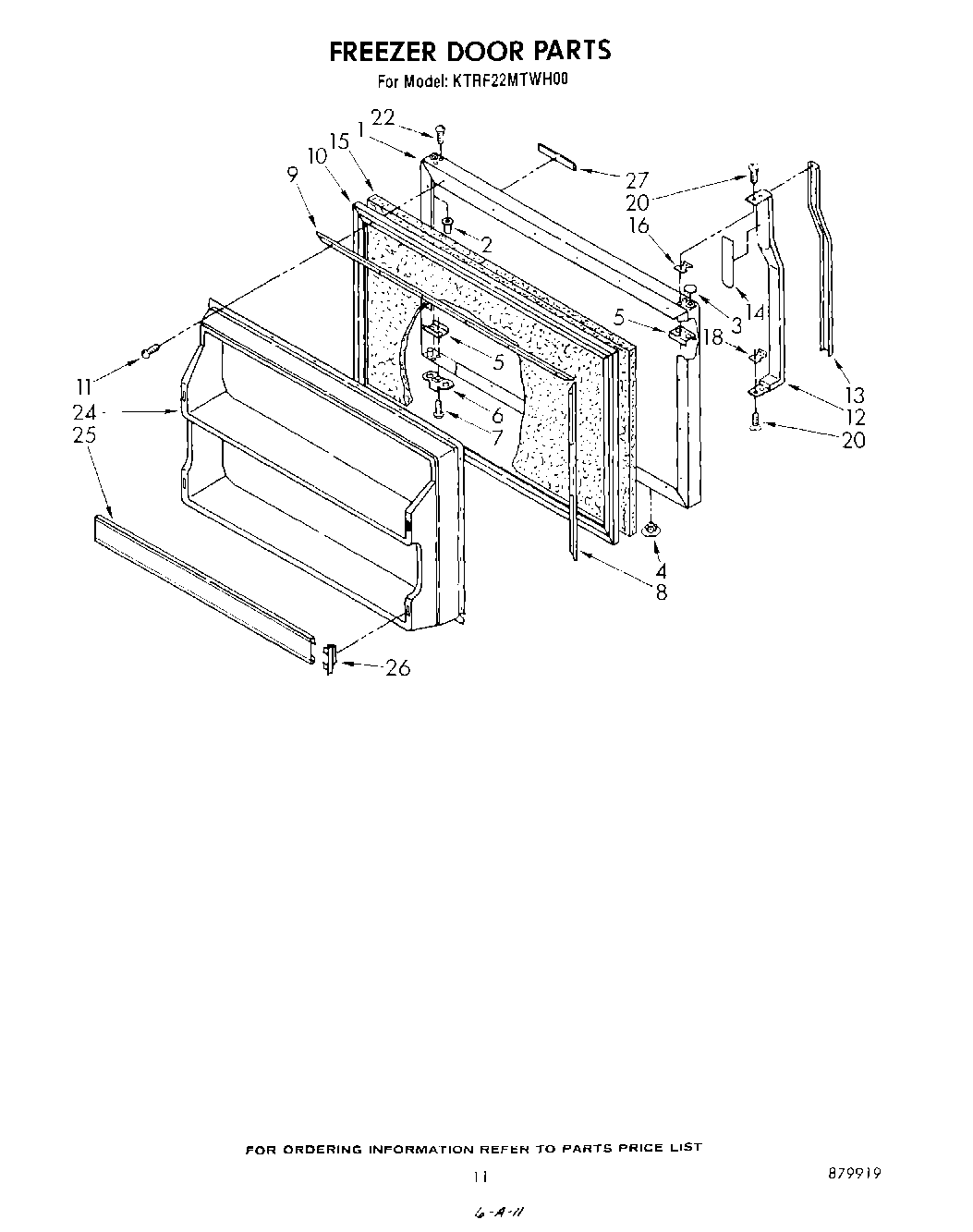

KTRF22MTWH00 08 – FREEZER DOORadmin2025-04-26T12:31:54+00:00KTRF22MTWH00 08 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer, Door Panel (Toast) |
| 1 | Freezer, Door Panel (Platinum) (Also Order Item 15) |
| 1 | Freezer, Door Panel (Almond) |
| 1 | Freezer, Door Panel (White) |
| 2 | Cap, Hinge Sleeve (2) |
| 3 | Hole Plug (Toast) |
| 3 | Hole Plug (Platinum) |
| 3 | Hole Plug (Almond) |
| 3 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 4 | Hole Plug (2) (Almond) |
| 4 | Hole Plug (2) (Platinum) |
| 4 | Hole Plug (2) |
| 4 | Hole Plug (2) (Toast) |
| 5 | W10833053 Whirlpool Refrigerator Plate |
| 6 | Bracket, Door Stop |
| 7 | WP488921 Whirlpool Refrigerator Screw |
| 8 | Retainer, Gasket Side |
| 9 | Retainer, Gasket Top |
| 10 | Door Gasket, Magnetic |
| 11 | WP489069 Whirlpool Compactor Screw |
| 11 | SCREW |
| 12 | Handle Center |
| 13 | Insert Handle |
| 14 | Spacer, Handle |
| 15 | WPL 876029 |
| 16 | Spacer, Handle |
| 18 | Spacer |
| 20 | Screw (Repair) |
| 20 | WP488920 Whirlpool Refrigerator Screw |
| 22 | Screw (Repair) |
| 24 | Interior Door Panel Freezer Model Only) |
| 25 | Trim, Door Shelf |
| 26 | Retainer, Door Trim (2) |
| 27 | Insert, Nameplate |
