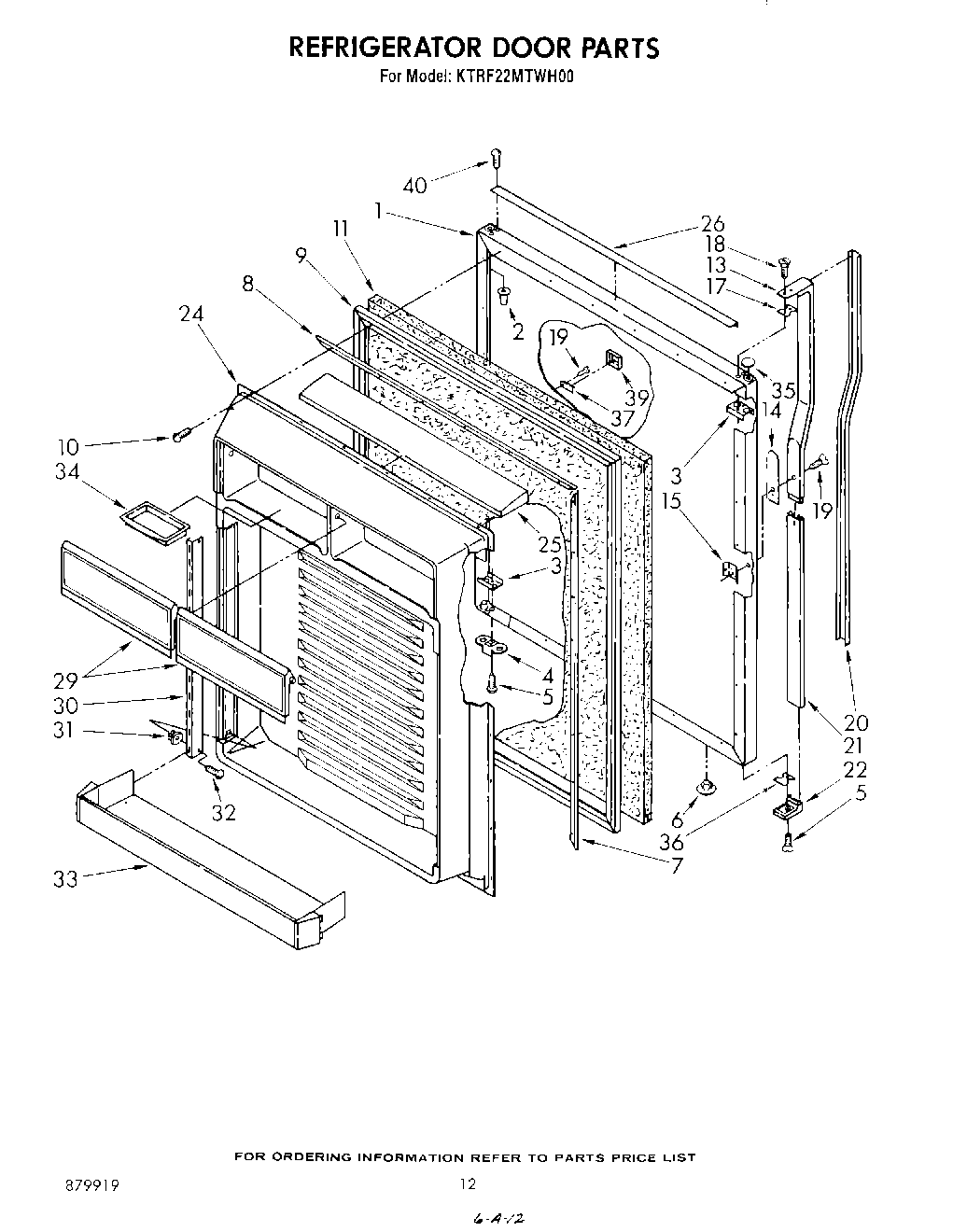

KTRF22MTWH00 09 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Platinum) (Also Order Item 11)
1	Refrigerator Door Panel (Toast)
1	Refrigerator Door Panel (White)
1	Refrigerator Door Panel (Almond)
2	Cap, Hinge Sleeve (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	Hole Plug (2) (Toast)
6	Hole Plug (2) (Platinum)
6	Hole Plug (2) (Almond)
6	Hole Plug (2)
7	Retainer, Gasket Side
8	Retainer, Gasket Top
9	Door, Gasket Magnetic
10	WP489069 Whirlpool Compactor Screw
10	SCREW
11	WPL 876029
13	Handle
14	Spacer, Handle
15	WP939101 Whirlpool Refrigerator Plate
17	Spacer
18	WP488920 Whirlpool Refrigerator Screw
18	Screw (Repair)
20	Insert, Handle
21	Retainer, Insert (Bottom)
22	Handle End
24	Interior, Door Panel
25	Support, Door Dike
26	Trim, Door
29	Door, Utility
30	Shelf Ladder, Door
31	Expansion Clip
32	WP488729 Whirlpool Refrigerator Door Screw
33	Cantilever, Door Shelf
35	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
35	Hole Plug (Toast)
35	Hole Plug (Almond)
35	Hole Plug (Platinum)
36	Shim, End Cap
37	Clip, Medallion
39	Handle Plug (White)
39	Handle Plug (Toast)
39	Handle Plug (Platinum)
39	Handle Plug (Almond)
40	Screw (Repair)
