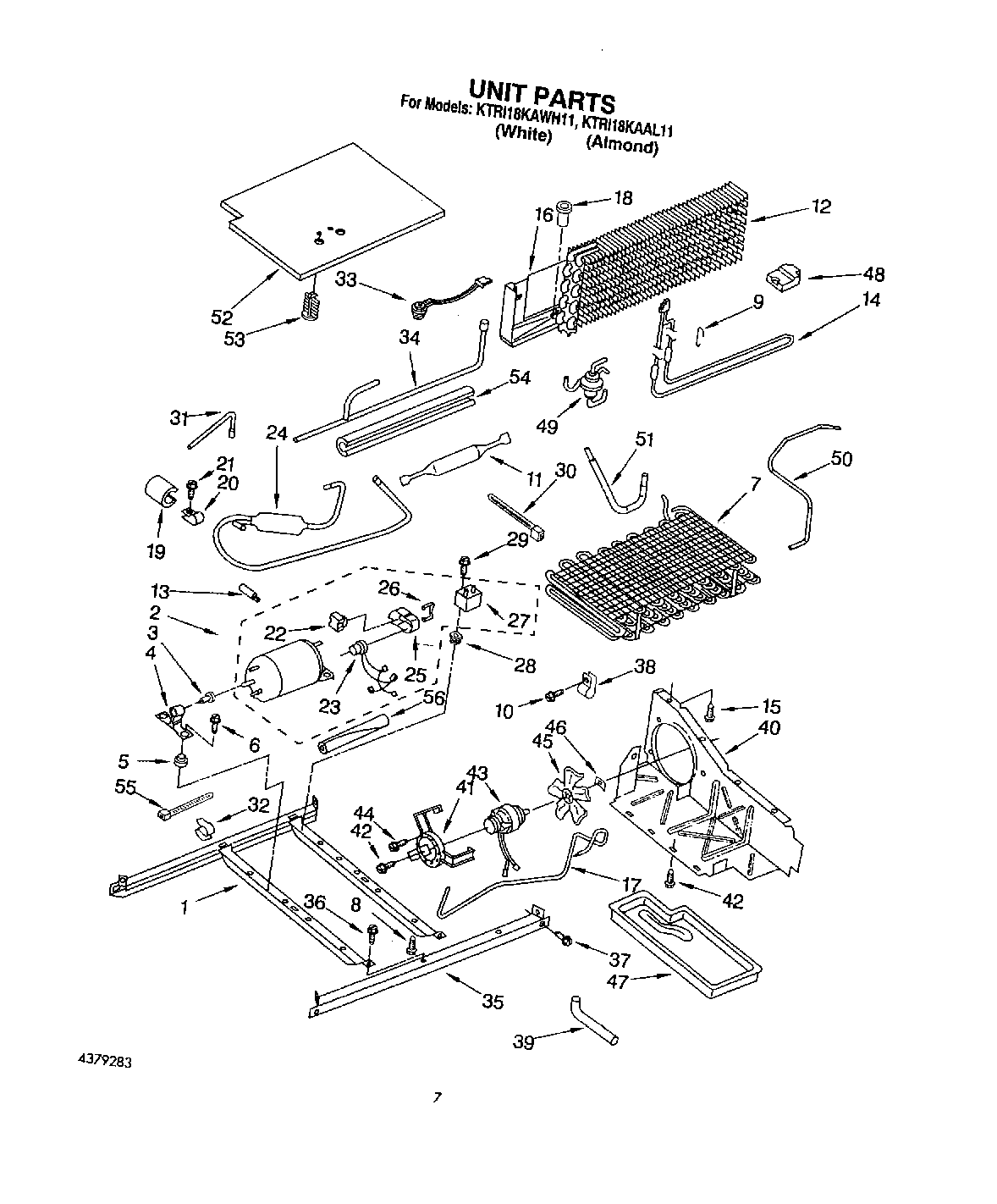

KTRI18KAAL11 05 – UNIT

Products

Position	Product
1	Unit, Frame
2	Compressor KIt Includes Items 22 (23, 25, 26 & 27)
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	Grommet, Compressor (4)
6	Screw (4)
7	Condenser Assembly
9	Support, Heater
10	WP489128 Whirlpool Refrigerator Screw
11	W10843121 Whirlpool Refrigerator Tube
12	Evaporator
13	Capacitor, Start
14	Heater, Defrost
16	Drain Pan & Heat Shield
17	Tube, Discharge
18	Drain Fitting
19	WP2158826 Whirlpool Refrigerator Dampener
20	Clamp Tube
21	WP489478 Whirlpool Refrigerator Screw
22	Relay (See Overload)
23	Overload (Production (Includes Relay))
23	Overload (Service (Includes Relay))
24	Muffler
25	Terminal Cover (Service)
26	Strap, Cover
27	WPW10662129 Whirlpool Refrigerator Run Capacitor
28	Screw Grommet
29	W11693756 Whirlpool Screw Assembly
30	WPW10339879 Whirlpool Wire Tie
31	Tube, Process
32	Clip, Wire (2)
33	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
34	Tube Assembly, Suction Line
35	Unit, Rail
36	WP489427 Whirlpool Refrigerator Screw
37	489340 Whirlpool Refrigerator Screw
38	Tube Clamp
39	Fitting, Drain
40	Air, Baffle
41	Fan, Mounting Bracket
42	WP489464 Whirlpool Refrigerator Screw
43	833697 Whirlpool Condenser Fan Motor
44	681390 Whirlpool Refrigerator Screw
45	Fan Blade
46	WP486692 Whirlpool Refrigerator Nut
47	Tray, Evaporator
48	Wedge, Air Baffle
49	Fluid Control Valve
50	Tube, Condenser To Fluid Valve
51	Tube Fluid Valve To Heat Loop
52	Cover, Unit Bottom
53	489396 Whirlpool Refrigerator Clip
54	WP2002171 Whirlpool Refrigerator Sleeve
56	WP978025 Whirlpool Refrigerator Valve
56	VALVE, ACCESS (5/8“)
56	VALVE, ACCESS (1/2“)
56	876764 Whirlpool Refrigerator Primary Valve
56	978026 Whirlpool Refrigerator Primary Valve
56	978027 Whirlpool Refrigerator Primary Valve
56	978030 Whirlpool Refrigerator Valve
56	Sleeve
