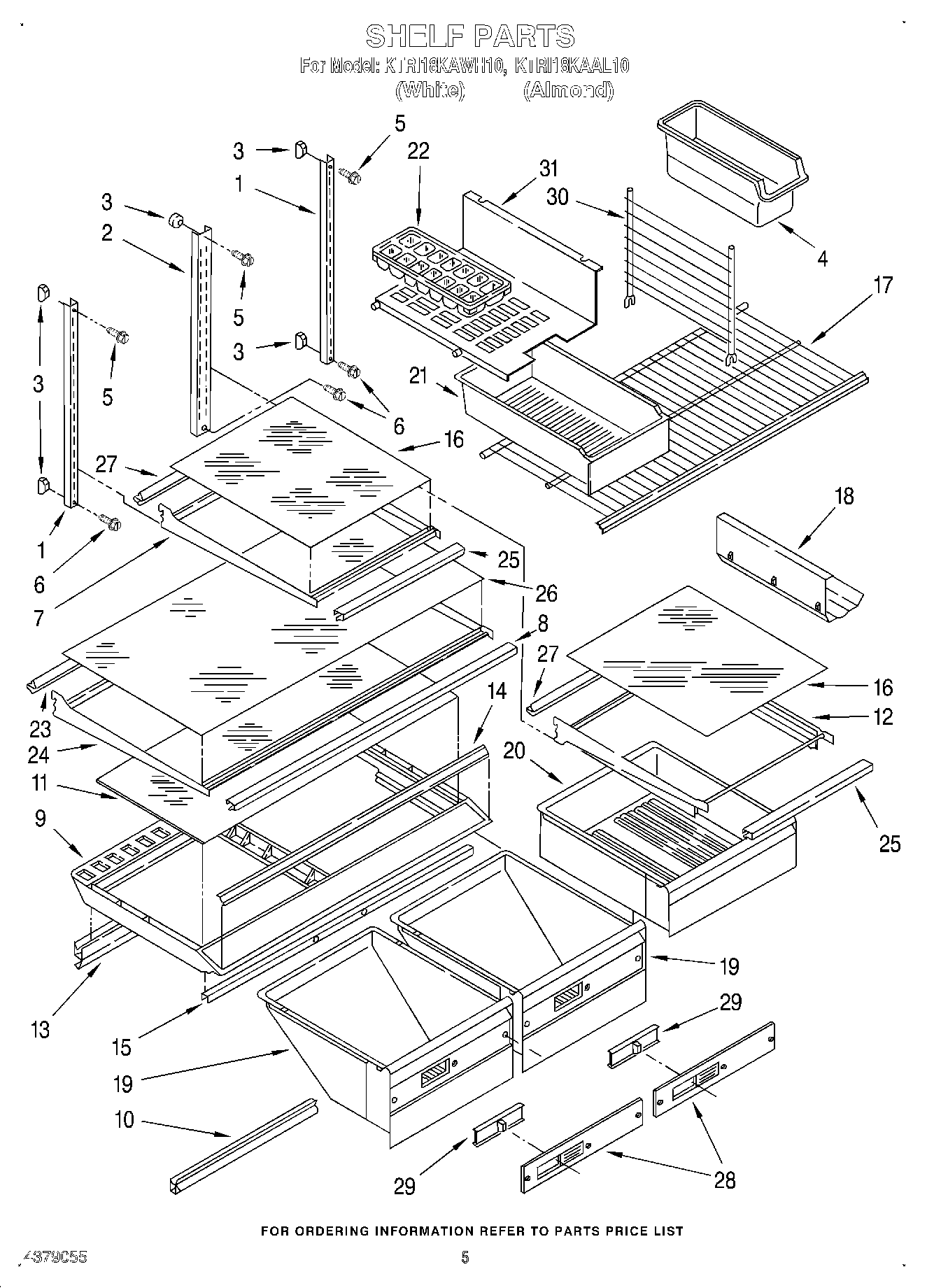

KTRI18KAWH10 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL LIT2168662
	WPL LIT1126160
	WPL LIT4379055
	WPL LIT2162463
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	WP982704 Whirlpool Refrigerator Container
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever
8	Gasket, Shelf
9	Crisper Cover
10	Crisper, Gasket Front (2)
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
13	Crisper, Gasket Rear (2)
14	Trim, Crisper Cover
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Glass
17	Shelf, Freezer
18	Wine & Egg Rack
19	Pan, Crisper
20	Pan, Meat
21	PAN-ICE
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Retainer, Shelf
24	Shelf, Full Cantilever
25	Gasket
26	Glass, Full Shelf
27	Retainer, Glass
28	Front, Pan
29	Slide, Front
30	Divider
31	72017 Whirlpool Appliance Touch-Up Paint White
31	511873 Whirlpool Refrigerator Paint
31	350942 Whirlpool Spray Paint
31	Almond (Uncut)
31	Leveler (Thinner)
31	212643 Whirlpool Refrigerator Permagum Sealer
31	350956 Whirlpool Spray Assembly
31	WP72107 Whirlpool Touchup
31	799344 Whirlpool Refrigerator Paint
31	606755 Whirlpool Refrigerator Bag
31	833938 Whirlpool Refrigerator Terminal
31	72032 Whirlpool Touch Up Paint Black
31	285006 Whirlpool Spray
31	WPL 799833
31	WPL 876029
31	CEMENT, ALUMILASTIC (1 1/4 OZ.)
31	Shelf, Ice Tray
31	TAPE, VINYL (3/4 X 108“)
31	WP542638 Whirlpool Refrigerator Grease
31	WP505587 Whirlpool Refrigerator Sealer
31	WP503695 Whirlpool Refrigerator Sealer
31	876370 Whirlpool Refrigerator Insulation
31	350930 Whirlpool White Spray Paint
