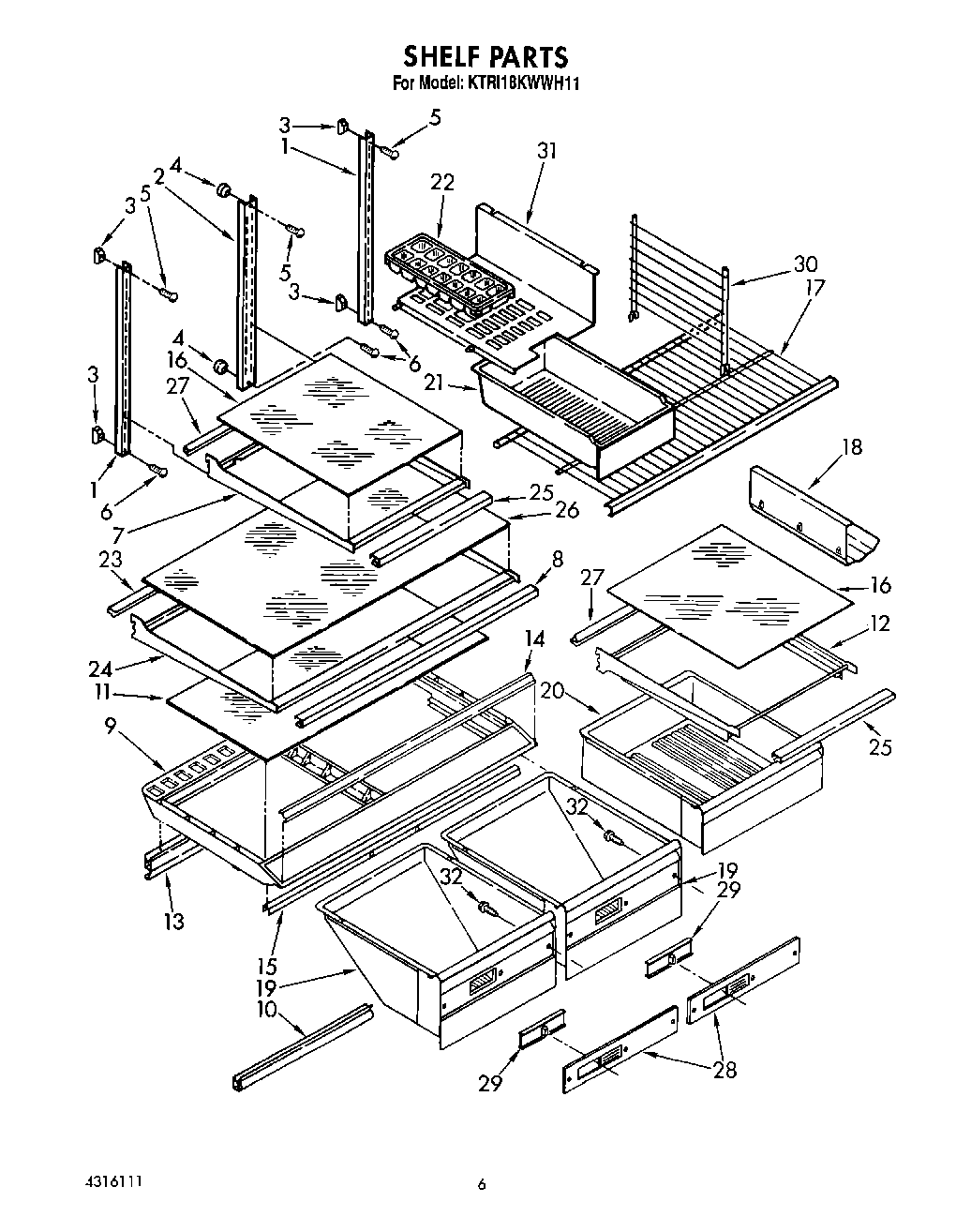

KTRI18KWWH11 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL LIT1126076
	WPL LIT1126160
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT4316047
	WPL LIT2149915
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Screw Support, Center Ladder (2)
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever
8	Trim, Shelf
9	Crisper Cover
10	Crisper, Gasket Front (2)
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
13	Crisper, Gasket Rear (2)
14	Trim, Crisper Cover
15	WP2172748 Whirlpool Drawer Support
16	Glass, Shelf
17	Shelf, Freezer
18	Wine & Egg Rack
19	Pan, Crisper
20	Pan, Meat
21	PAN-ICE
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Retainer, Shelf
24	Shelf, Full Cantilever
25	Trim, Shelf
26	Glass, Full Shelf
27	Retainer, Glass
28	Front, Pan
29	Slide, Front
30	Divider
31	Shelf, Ice Tray
32	350942 Whirlpool Spray Paint
32	WPL 876029
32	799344 Whirlpool Refrigerator Paint
32	212643 Whirlpool Refrigerator Permagum Sealer
32	WPL 799833
32	285006 Whirlpool Spray
32	72017 Whirlpool Appliance Touch-Up Paint White
32	CEMENT, ALUMILASTIC (1 1/4 OZ.)
32	TAPE, VINYL (3/4 X 108“)
32	350956 Whirlpool Spray Assembly
32	WP542638 Whirlpool Refrigerator Grease
32	72032 Whirlpool Touch Up Paint Black
32	Almond (Uncut)
32	Leveler (Thinner)
32	511873 Whirlpool Refrigerator Paint
32	606755 Whirlpool Refrigerator Bag
32	833938 Whirlpool Refrigerator Terminal
32	876370 Whirlpool Refrigerator Insulation
32	Screw (6)
32	WP503695 Whirlpool Refrigerator Sealer
32	WP72107 Whirlpool Touchup
32	WP505587 Whirlpool Refrigerator Sealer
32	350930 Whirlpool White Spray Paint
