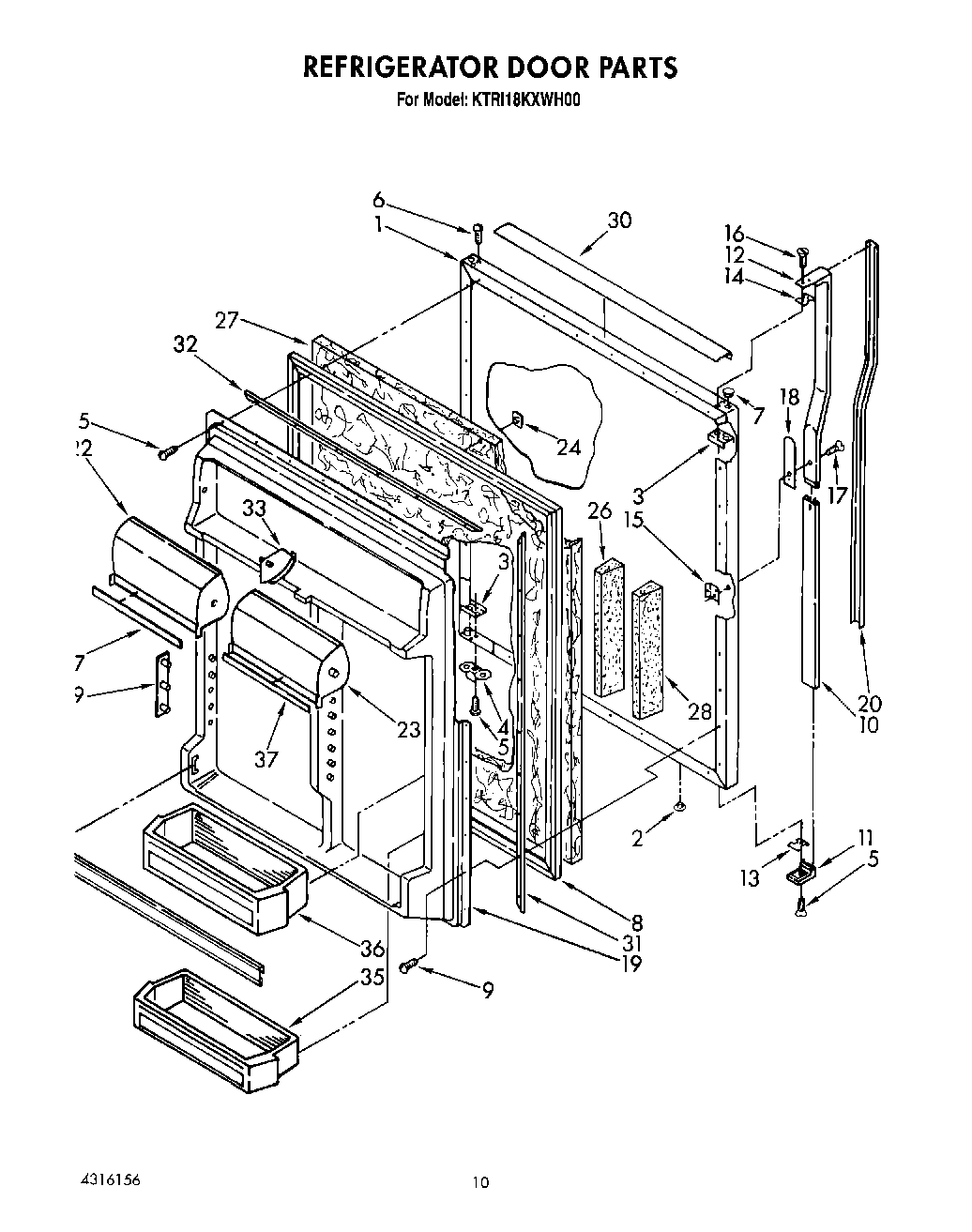

KTRI18KXAL00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
1	Panel, Refrigerator Door (Also Order Item 27) (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	Retainer, Insert
11	Handle End
12	Handle
13	Shim, End Cap
14	Spacer
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Spacer, Handle
19	Interior Door Panel
20	Insert, Handle (White)
20	Insert, Handle (Almond)
21	Trim, Door Shelf
22	Compartment Door, Utility
23	Compartment Door, Butter
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
26	WPL 1118008
27	WPL 876029
28	WPL 1118007
29	Pin Plate (8)
30	Trim, Door
31	Retainer, Gasket Side (2)
32	WPL 1115137
33	WP1118001 Whirlpool Hinge Pin
35	Shelf Bin (2) (Wide)
36	Shelf Bin (2) (Narrow)
37	WPL 4318428
37	WPL 4318427
37	Trimless Glass (
37	Trimless Glass (Almond (R.H.))
37	Trimless Glass (White (R.H.))
37	Trimless Glass (Woodgrain)
37	Trimless Glass (Black)
37	Trimless Glass (Black (R.H.))
37	Trim, Compartment Door
37	WPL 4318429
