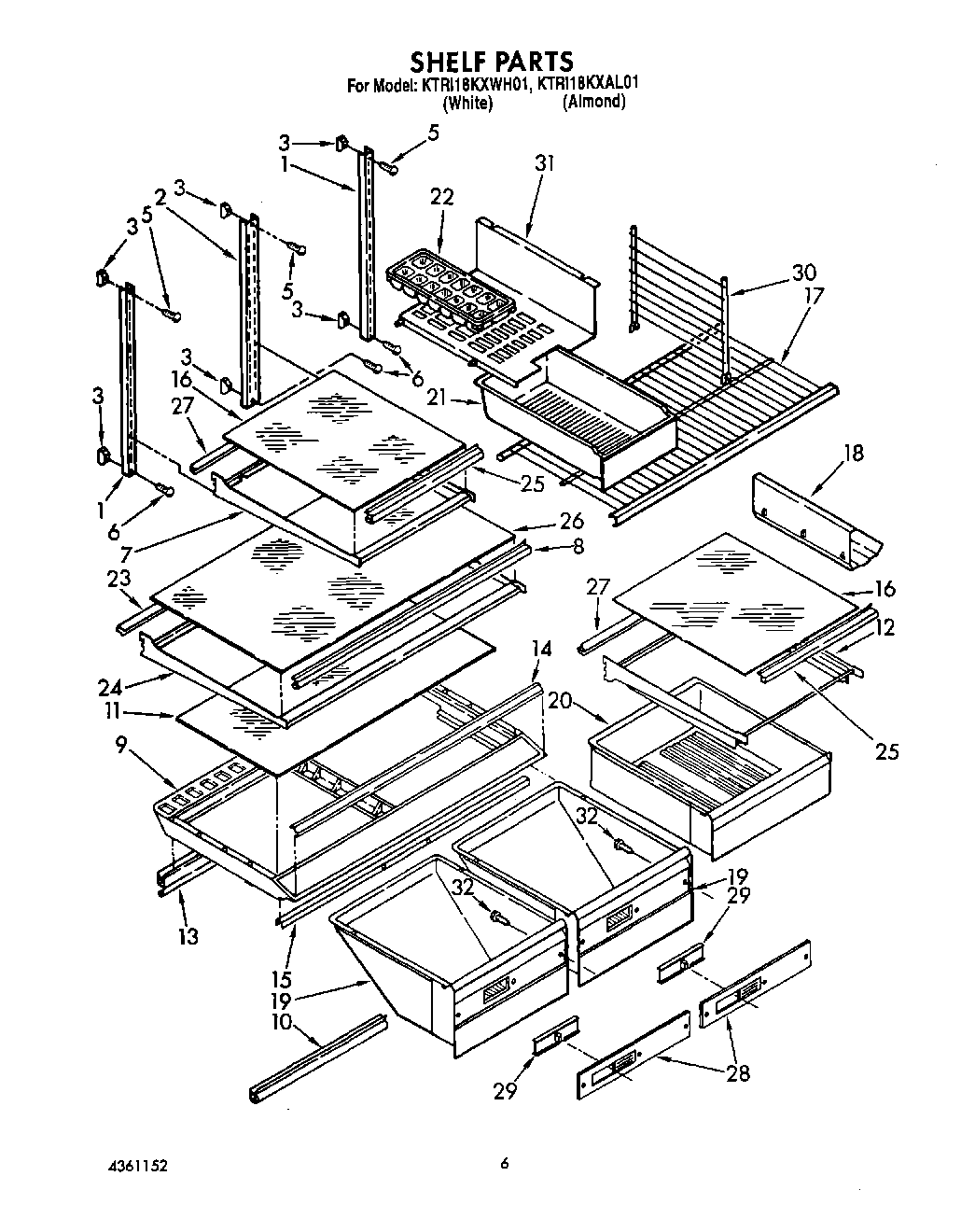

KTRI18KXAL01 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL LIT4361152
	WPL LIT1126451
	WPL LIT1126160
	WPL LIT2154850
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever
8	Gasket, Shelf
9	Crisper Cover
10	Crisper, Gasket Front (2)
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
13	Crisper, Gasket Rear (2)
14	Trim, Crisper Cover
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Glass
17	Shelf, Freezer
18	Wine & Egg Rack
19	Pan, Crisper
20	Pan, Meat
21	PAN-ICE
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Retainer, Shelf
24	Shelf, Full Cantilever
25	Gasket
26	Glass, Full Shelf
27	Retainer, Glass
28	Front, Pan
29	Slide, Front
30	Divider
31	Shelf, Ice Tray
32	212643 Whirlpool Refrigerator Permagum Sealer
32	Screw (6)
32	606755 Whirlpool Refrigerator Bag
32	511873 Whirlpool Refrigerator Paint
32	350942 Whirlpool Spray Paint
32	Almond (Uncut)
32	Leveler (Thinner)
32	WP72107 Whirlpool Touchup
32	799344 Whirlpool Refrigerator Paint
32	72017 Whirlpool Appliance Touch-Up Paint White
32	350956 Whirlpool Spray Assembly
32	833938 Whirlpool Refrigerator Terminal
32	876370 Whirlpool Refrigerator Insulation
32	WPL 876029
32	72032 Whirlpool Touch Up Paint Black
32	285006 Whirlpool Spray
32	WPL 799833
32	CEMENT, ALUMILASTIC (1 1/4 OZ.)
32	TAPE, VINYL (3/4 X 108“)
32	WP542638 Whirlpool Refrigerator Grease
32	WP505587 Whirlpool Refrigerator Sealer
32	WP503695 Whirlpool Refrigerator Sealer
32	350930 Whirlpool White Spray Paint
