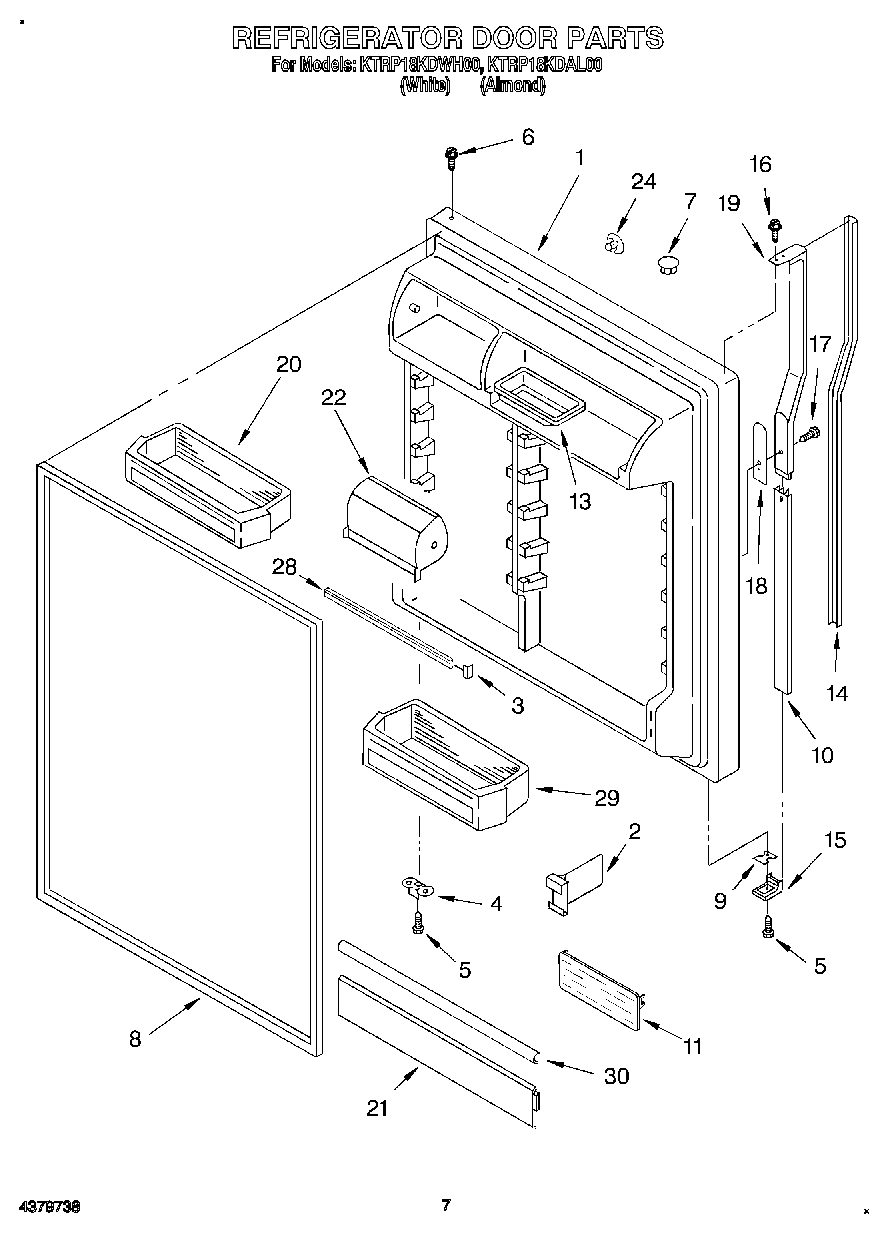

KTRP18KDAL00 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Includes Item 8) (Almond)
1	Panel, Refrigerator Door (Includes Item 8) (White)
2	Divider (3)
3	ENDCAP-TRM
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
9	Shim, Bottom
10	Retainer, Insert
11	WP2188234 Whirlpool Shelf
13	Butter, Tray
14	Insert, Handle (White)
14	Insert, Handle (Almond)
15	Handle End
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Spacer, Handle
19	Handle
20	Bin, Door Shelf (Narrow) (2)
21	WPW10421484 Whirlpool Refrigerator Door Trim
22	WP2218113 Whirlpool Dairy Door
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug, Handle (Almond)
28	TRIM-DOOR
29	Bin, Door Shelf (Wide) (2)
