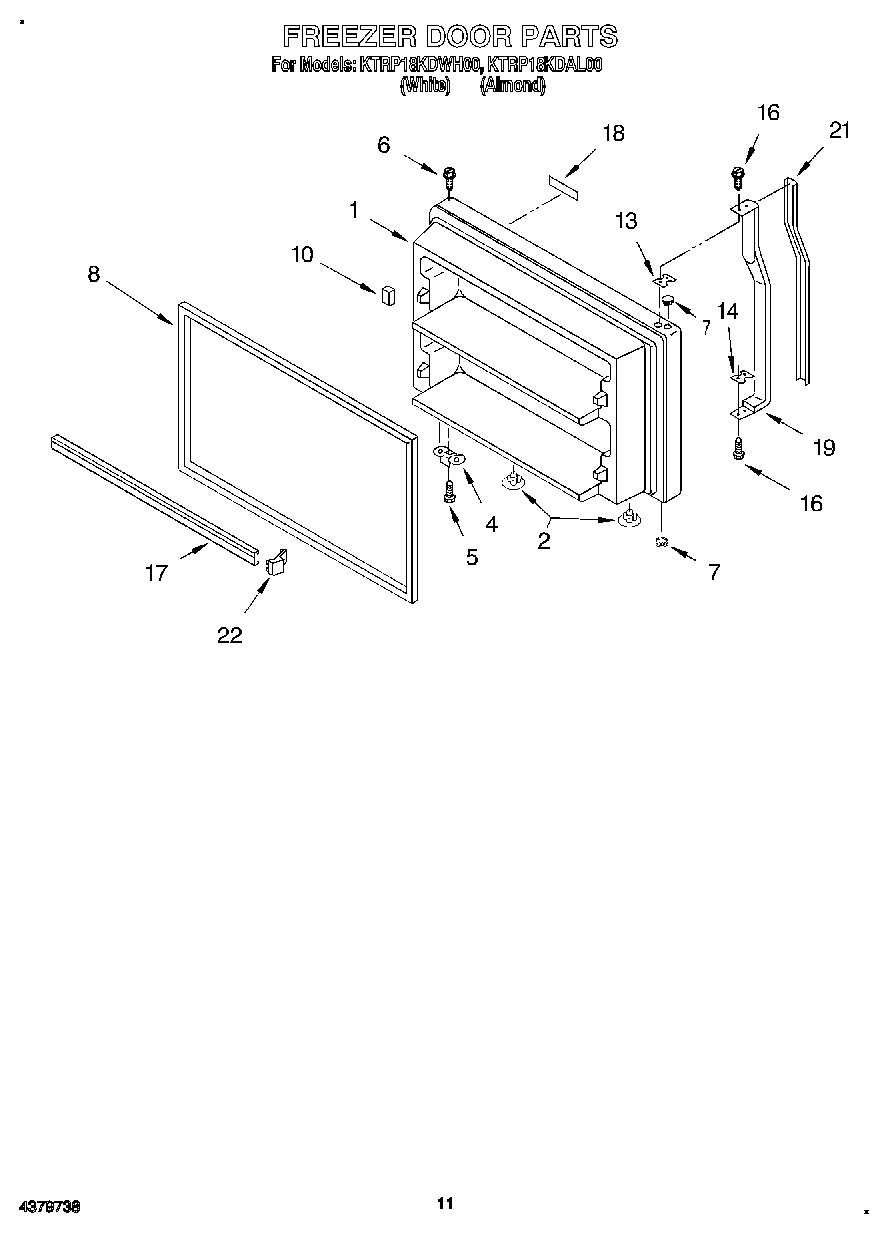

KTRP18KDAL00 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2169008
	WPL LIT2179217
	WPL LIT2172667
	Torx Key
1	Panel, Freezer Door (Includes Item 8) (Almond)
1	Panel, Freezer Door (Includes Item 8) (White)
2	Hole Plug (2)
2	Hole Plug (2) (Almond)
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	Door Gasket, Magnetic (Service)
10	Door Clip, Freezer Light
13	Spacer, Handle
14	Shim, Bottom
16	WP488920 Whirlpool Refrigerator Screw
17	Trim, Door Shelf (2)
18	Nameplate (White Model)
18	Nameplate (Almond Model)
19	Handle
21	Insert, Handle (Almond)
21	Insert, Handle (White)
22	350942 Whirlpool Spray Paint
22	212643 Whirlpool Refrigerator Permagum Sealer
22	Almond (Uncut)
22	350930 Whirlpool White Spray Paint
22	WP72107 Whirlpool Touchup
22	Door Reversal Instructions
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	511873 Whirlpool Refrigerator Paint
22	606755 Whirlpool Refrigerator Bag
22	833938 Whirlpool Refrigerator Terminal
22	WPL 799833
22	WPL 799832
22	TAPE, VINYL (3/4 X 108“)
22	285006 Whirlpool Spray
22	72032 Whirlpool Touch Up Paint Black
22	ENDCAP
22	WP542638 Whirlpool Refrigerator Grease
22	WP505587 Whirlpool Refrigerator Sealer
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
22	WP503695 Whirlpool Refrigerator Sealer
22	876370 Whirlpool Refrigerator Insulation
22	WPL 876029
