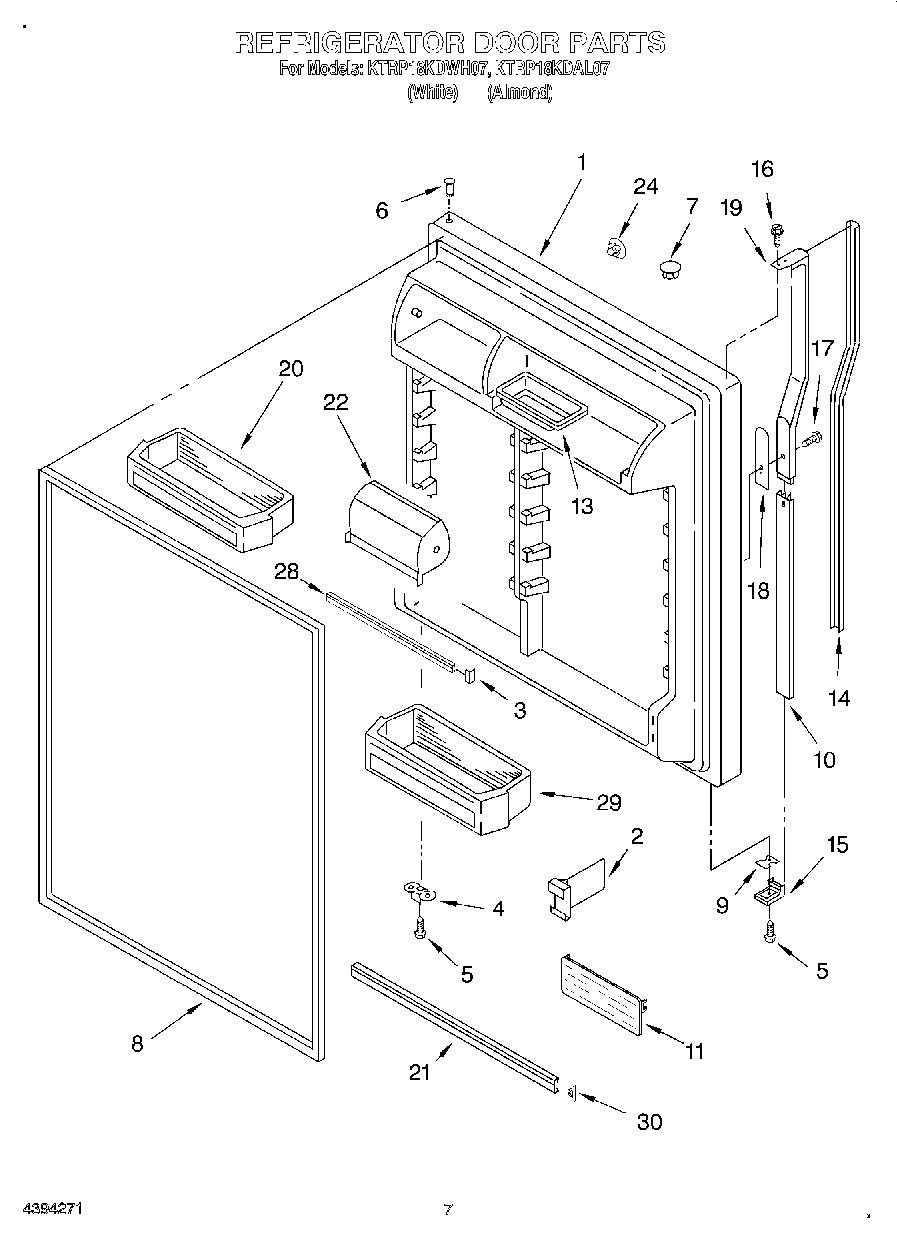

KTRP18KDWH07 04 – REFRIGERATOR DOOR

KTRP18KDWH07 04 – REFRIGERATOR DOOR

Written by

in

KTRP18KDWH07 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.8) (Almond)
1Refrigerator Door (Includes No.8) (White)
2Divider (3)
3ENDCAP-TRM
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
82159057 Whirlpool Refrigerator Fresh Food Door Gasket
9Shim, Bottom
10Retainer, Insert
11WP2188234 Whirlpool Shelf
13Butter, Tray
14Insert, Handle (Almond)
14Insert, Handle (White)
15Handle End
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18Spacer, Handle
19Handle
20Bin, Door Shelf (Narrow) (2)
21WPW10421484 Whirlpool Refrigerator Door Trim
22WP2218113 Whirlpool Dairy Door
24WP2189000 Whirlpool Refrigerator Handle Plug
24Hole Plug, Handle (Almond)
28TRIM-DOOR
29Bin, Door Shelf (Wide) (2)
30Plug, Trim (2)
