KTRP19KGAL00 04 – REFRIGERATOR DOOR

KTRP19KGAL00 04 – REFRIGERATOR DOOR

Written by

in

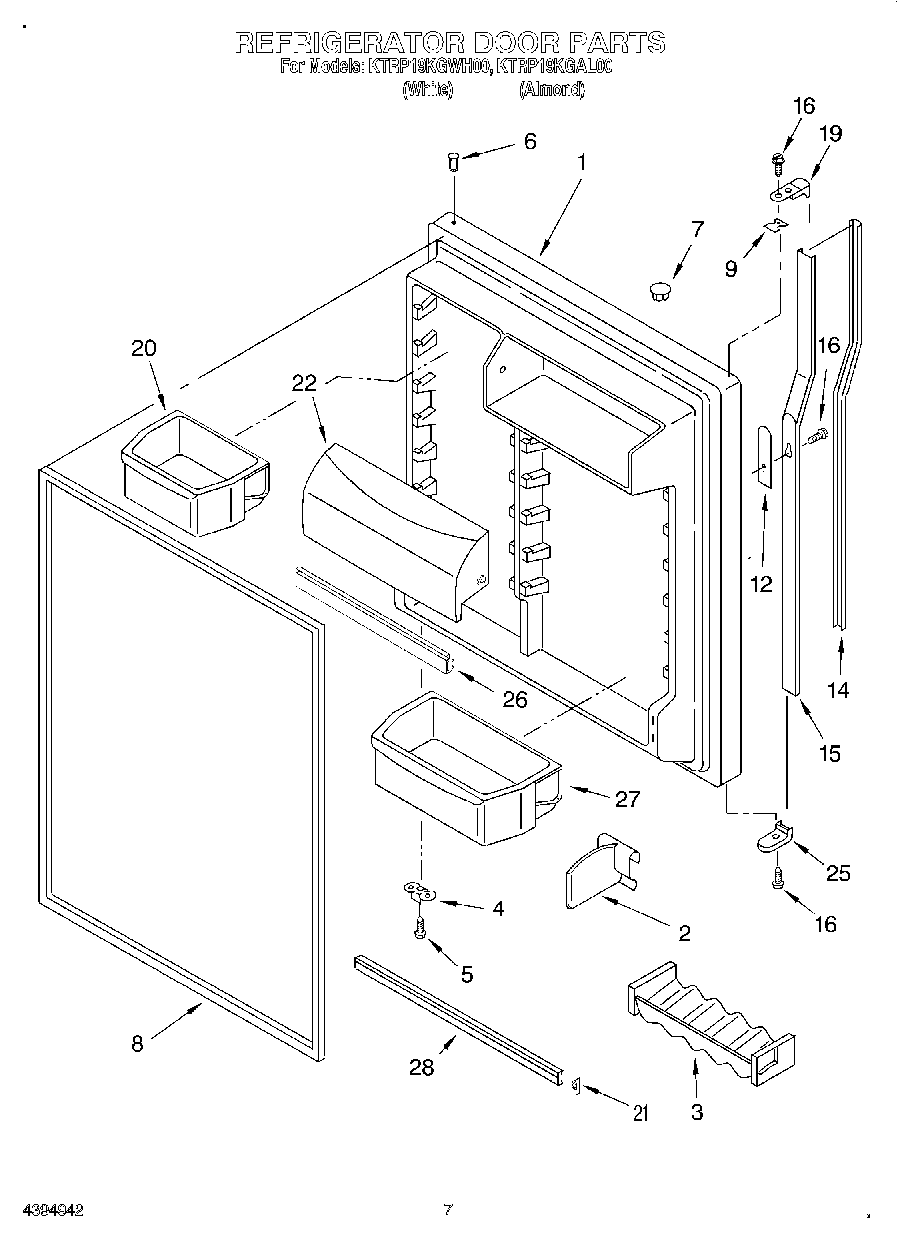

KTRP19KGAL00 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.6 & No.8) (Almond)
1Refrigerator Door (Includes No.6 & No.8) (White)
2Divider-Door
3Beverage Holder
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159057 Whirlpool Refrigerator Fresh Food Door Gasket
9Shim, Bottom
12Spacer
14Insert, Handle (Almond)
14Insert, Handle (White)
15Retainer, Insert (White)
15Retainer, Insert (Almond)
16WP489357 Whirlpool Recessed Screw
19Endcap
19Endcap (Almond)
20Bin, Door Shelf (3)
21WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
22WP2313637 Whirlpool Cutting Grid Assembly
25Endcap, Handle (White)
25Endcap, Handle (Almond)
26Gasket, Door Compartment
27Bin, Door Shelf
28WPW10421484 Whirlpool Refrigerator Door Trim
100FeaturePak (Includes 4, 8, 10, 14, 16, 20, 31, 41, 45) Also See Ref. & Frz.Dr. Pgs.
