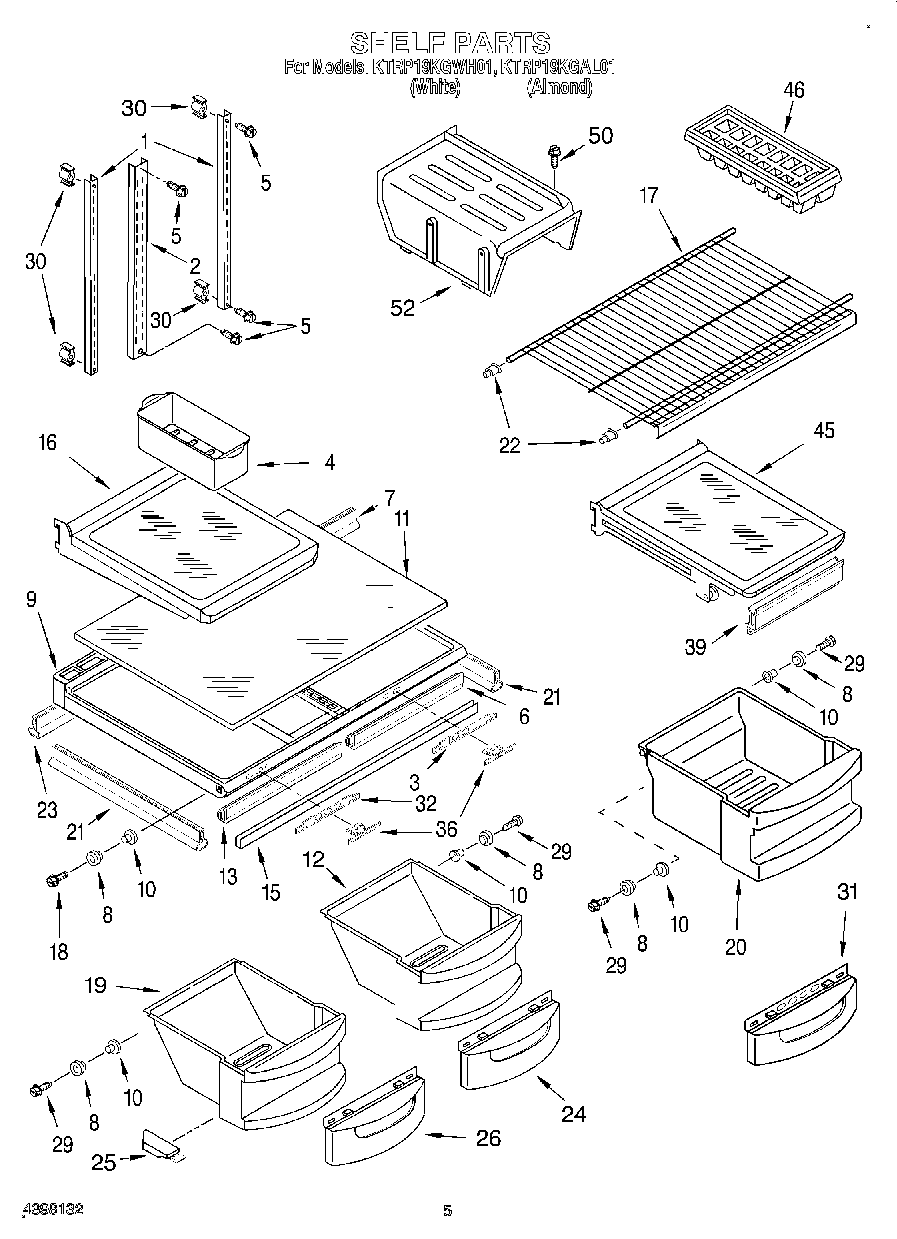

KTRP19KGAL01 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	Slide, Humidity
4	W10136387A Whirlpool Refrigerator Egg Container
5	W11544659 Whirlpool Refrigerator Screw
6	WP1125528 Whirlpool Refrigerator Gasket
7	Gasket, Crisper Cover (Rear)
8	Roller
9	Crisper Cover (Includes Rollers)
10	Eyelet, Roller
11	Glass, Crisper Cover
12	Pan, Crisper (Includes Rollers)
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard (3)
17	WP2176275 Whirlpool Refrigerator Wire Shelf
18	WPW10272364 Whirlpool Refrigerator Screw
19	Pan, Crisper (Includes Rollers)
20	Pan, Meat (Includes Rollers)
21	Gasket, Crisper Cover (Side) (4)
22	2163762 Whirlpool Refrigerator Cup Assembly
23	Gasket, Pan Cover-Rear
24	Window
25	Cap, Crisper (Right Side)
25	Cap, Crisper (Left Side)
26	Window
29	WP489261 Whirlpool Refrigerator Screw
30	Support, Screw
31	Window, Meat Pan
32	Slide, Humidity
36	Button, Humidity Control
39	Gasket, Front
45	Shelf Assembly, Spillguard
46	WP841180A Whirlpool Microwave Glass Turntable Tray
50	WP489478 Whirlpool Refrigerator Screw
52	Shelf, Ice Tray
100	FeaturePak (Includes 4, 8, 10, 14, 16, 20, 31, 41, 45) Also See Ref. & Frz.Dr. Pgs.
