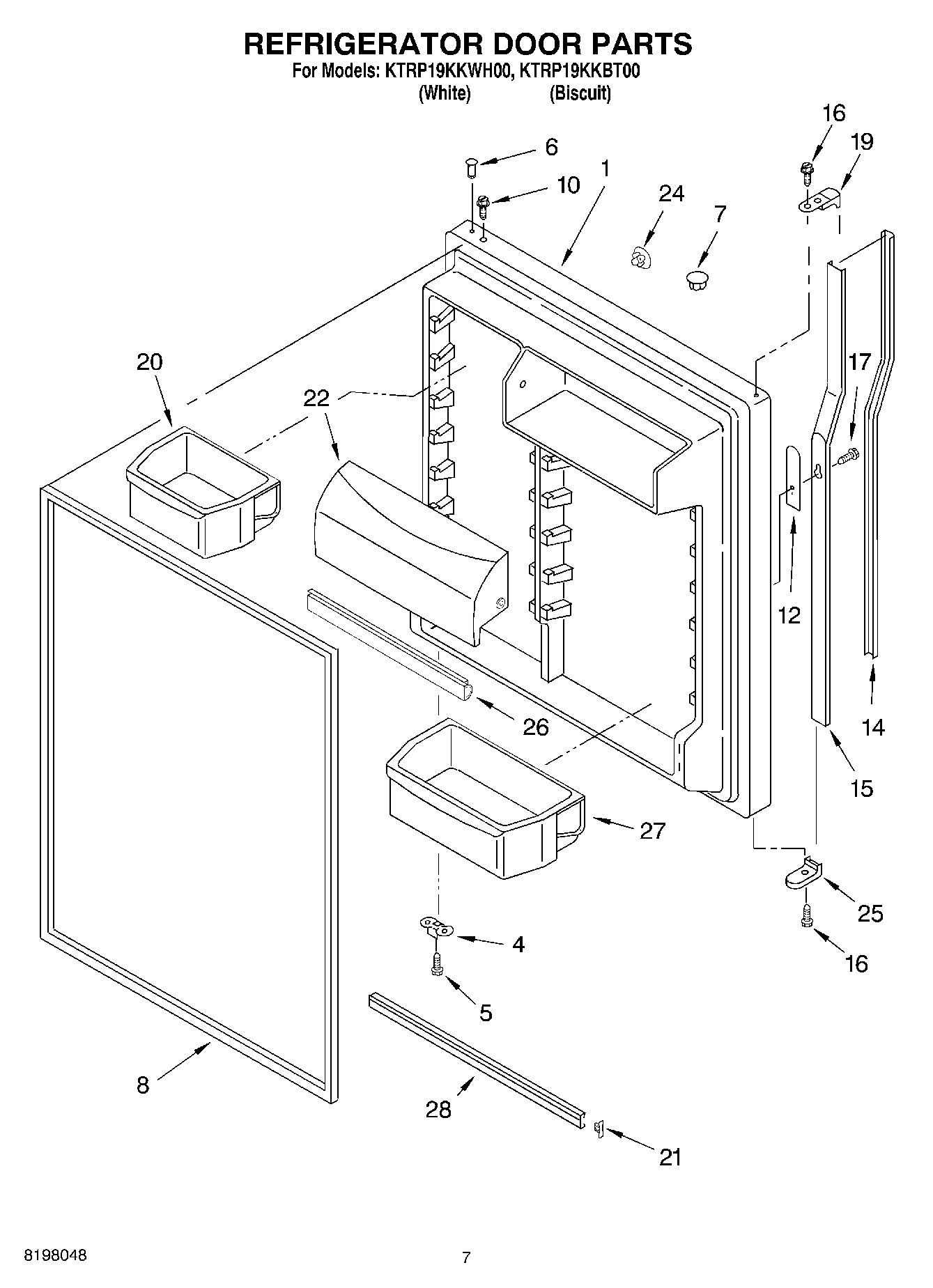

KTRP19KKBT00 04 – REFRIGERATOR DOORadmin2025-04-26T12:31:35+00:00KTRP19KKBT00 04 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Biscuit (Includes No.6 & No.8)) |
| 1 | Refrigerator Door (Includes No.6 & No.8) (White) |
| 4 | W11745278 Whirlpool Bracket |
| 5 | WP488921 Whirlpool Refrigerator Screw |
| 6 | WP2183003 Whirlpool Thimble |
| 7 | WP2212649 Whirlpool Refrigerator Button Plug |
| 7 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 8 | 2159057 Whirlpool Refrigerator Fresh Food Door Gasket |
| 10 | WP8281206 Whirlpool Refrigerator Screw |
| 12 | Spacer |
| 14 | Insert, Handle (Biscuit) |
| 14 | Insert, Handle (White) |
| 15 | Retainer, Insert (Biscuit) |
| 15 | Retainer, Insert (White) |
| 16 | WP489357 Whirlpool Recessed Screw |
| 17 | Screw |
| 19 | Endcap |
| 19 | Endcap (Biscuit) |
| 20 | Bin, Door Shelf (3) |
| 21 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 22 | Door, Compartment |
| 24 | WP2200936 Whirlpool Refrigerator Handle Plug |
| 24 | WP2189000 Whirlpool Refrigerator Handle Plug |
| 25 | Endcap, Bottom (Biscuit) |
| 25 | Endcap, Handle (White) |
| 26 | Gasket, Door Compartment |
| 27 | Bin, Door Shelf |
| 28 | WPW10421484 Whirlpool Refrigerator Door Trim |
