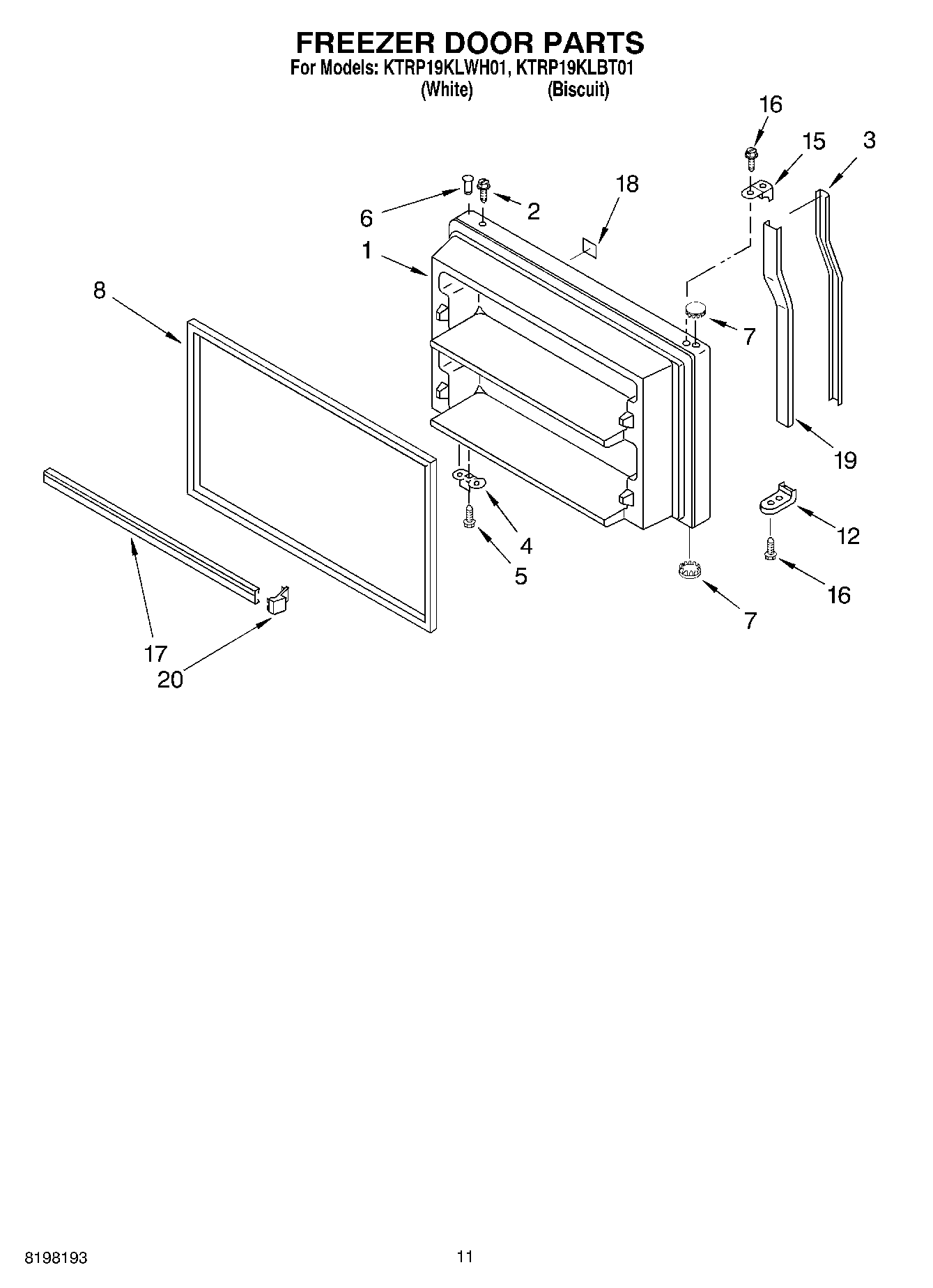

KTRP19KLWH01 06 – FREEZER DOOR, OPTIONAL

KTRP19KLWH01 06 – FREEZER DOOR, OPTIONAL

Written by

in

KTRP19KLWH01 06 – FREEZER DOOR, OPTIONAL

Products

Position	Product
1	Freezer Door Panel (Biscuit)
1	Freezer Door (Includes Illus. 2,6 & 8)
2	WP8281206 Whirlpool Refrigerator Screw
3	Insert, Handle (White)
3	Insert, Handle (Biscuit)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	WP2212649 Whirlpool Refrigerator Button Plug
8	2159327 Whirlpool Refrigerator Door Gasket
12	Endcap (Biscuit)
12	Endcap
15	Endcap (Biscuit)
15	Endcap
16	WP489357 Whirlpool Recessed Screw
17	Trim-Door (2)
18	Nameplate (Biscuit)
18	Nameplate (White)
19	Insert, Retainer (White)
19	Insert, Handle (Biscuit)
20	72032 Whirlpool Touch Up Paint Black
20	212643 Whirlpool Refrigerator Permagum Sealer
20	TAPE, VINYL (3/4 X 108“)
20	285006 Whirlpool Spray
20	ENDCAP
20	W11729596 Whirlpool Ice Maker Field Install Kit
20	606755 Whirlpool Refrigerator Bag
20	511873 Whirlpool Refrigerator Paint
20	4392901 Whirlpool Biscuit Spray Paint
20	4392899 Whirlpool Biscuit Touch-Up Paint
20	350942 Whirlpool Spray Paint
20	Almond (Uncut)
20	WP72107 Whirlpool Touchup
20	799344 Whirlpool Refrigerator Paint
20	72017 Whirlpool Appliance Touch-Up Paint White
20	350956 Whirlpool Spray Assembly
20	833938 Whirlpool Refrigerator Terminal
20	876370 Whirlpool Refrigerator Insulation
20	WPL 876029
20	WPL 799833
20	WPL 799832
20	Enamel, Black (1 Qt. Uncut)
20	CEMENT, ALUMILASTIC (1 1/4 OZ.)
20	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
20	Torx Key
20	WP542638 Whirlpool Refrigerator Grease
20	WP505587 Whirlpool Refrigerator Sealer
20	WP503695 Whirlpool Refrigerator Sealer
20	350930 Whirlpool White Spray Paint
