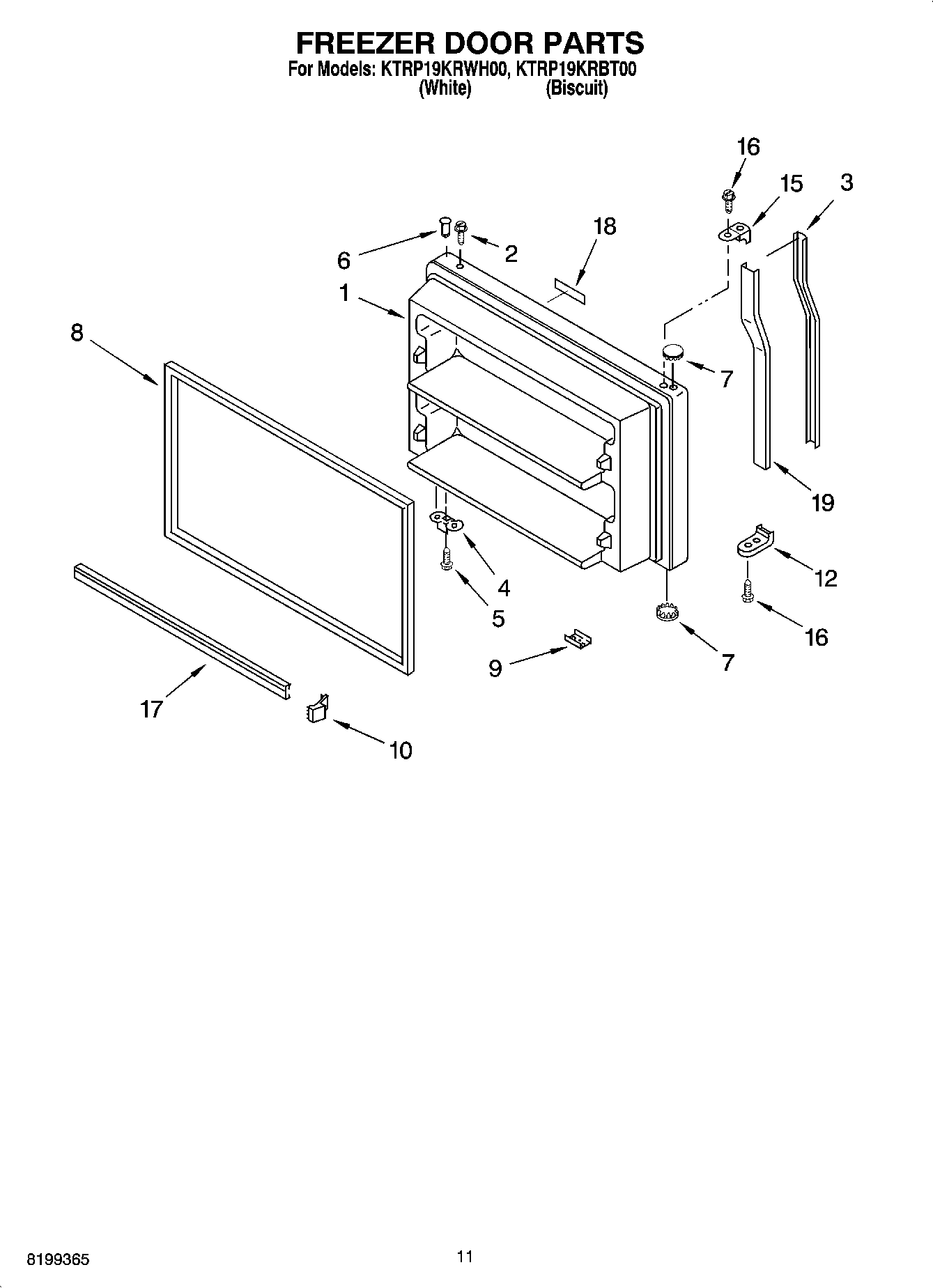

KTRP19KRWH00 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

KTRP19KRWH00 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Written by

in

KTRP19KRWH00 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
WPL ARI110904A
WPL ARI110903A
WPL ARI110902A
WPL ARI110901A
WPL ARI110905A
Cleaner, Stainless Steel
72032 Whirlpool Touch Up Paint Black
TAPE, VINYL (3/4 X 108“)
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
285006 Whirlpool Spray
1Freezer Door Panel (Biscuit)
1Freezer Door (Includes Illus. 2,6 & 8)
2WP8281206 Whirlpool Refrigerator Screw
3Insert, Handle (Biscuit)
3Insert, Handle (White)
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159327 Whirlpool Refrigerator Door Gasket
9Tap Plate
10ENDCAP
12Endcap (Biscuit)
12Endcap
15Endcap
15Endcap (Biscuit)
16WP489357 Whirlpool Recessed Screw
17Trim-Door (2)
18Nameplate (Biscuit)
18Nameplate (White)
19Insert, Handle (Biscuit)
19Insert, Retainer (White)
