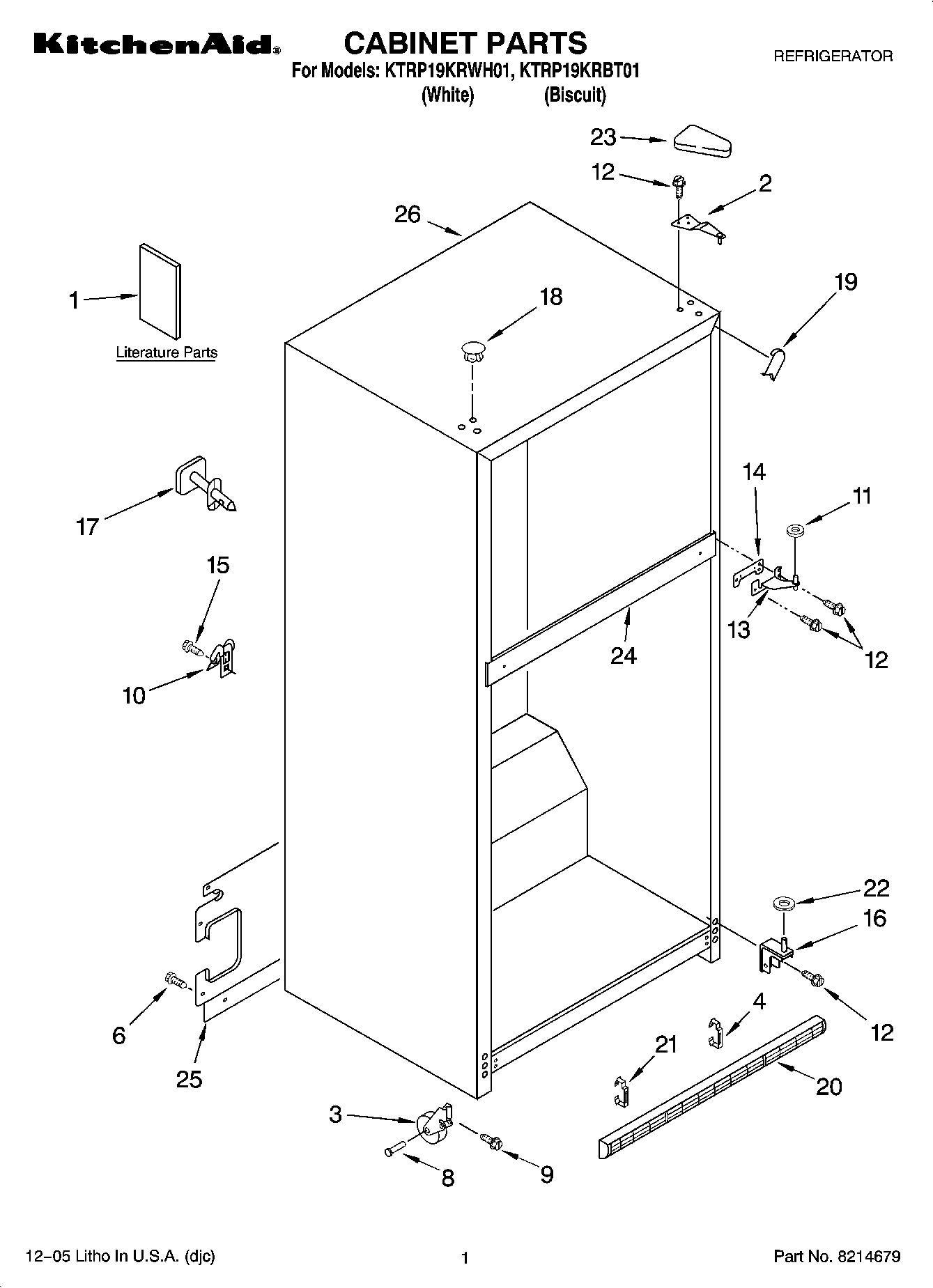

KTRP19KRWH01 01 – CABINET PARTS

Products

Position	Product
1	Energy Label
1	Use & Care Guide
1	Customer Instructions
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	2254385 Whirlpool Refrigerator Clip
6	WP489427 Whirlpool Refrigerator Screw
8	W11594405 Whirlpool Axle
9	WP3400504 Whirlpool Refrigerator Screw
10	549193 Whirlpool Refrigerator Power Clamp
11	WP489467 Whirlpool Hinge Shim
12	WP489497 Whirlpool Screw
13	WP2254618 Whirlpool Center Door Hinge
14	WP2183854 Whirlpool Refrigerator Shim
15	WP489464 Whirlpool Refrigerator Screw
16	WP2254473 Whirlpool Refrigerator Door Hinge
17	Fitting, Water Tube (Not Serviced)
18	WP2151652 Whirlpool Refrigerator Button Plug
18	Hole Plug (6) (Biscuit)
19	WPW10283959 Whirlpool Refrigerator Filler
19	W10283958 Whirlpool Refrigerator Filler
20	WP2254386 Whirlpool Refrigerator Grille
21	CLIP, GRILLE
22	WP487576 Whirlpool Washer
23	WP2213360 Whirlpool Refrigerator Cover
23	2213364 Whirlpool Refrigerator Cover
24	Rail Center (Not Serviced)
25	Cover, Unit
26	Cabinet (Not A Serviceable Part)
