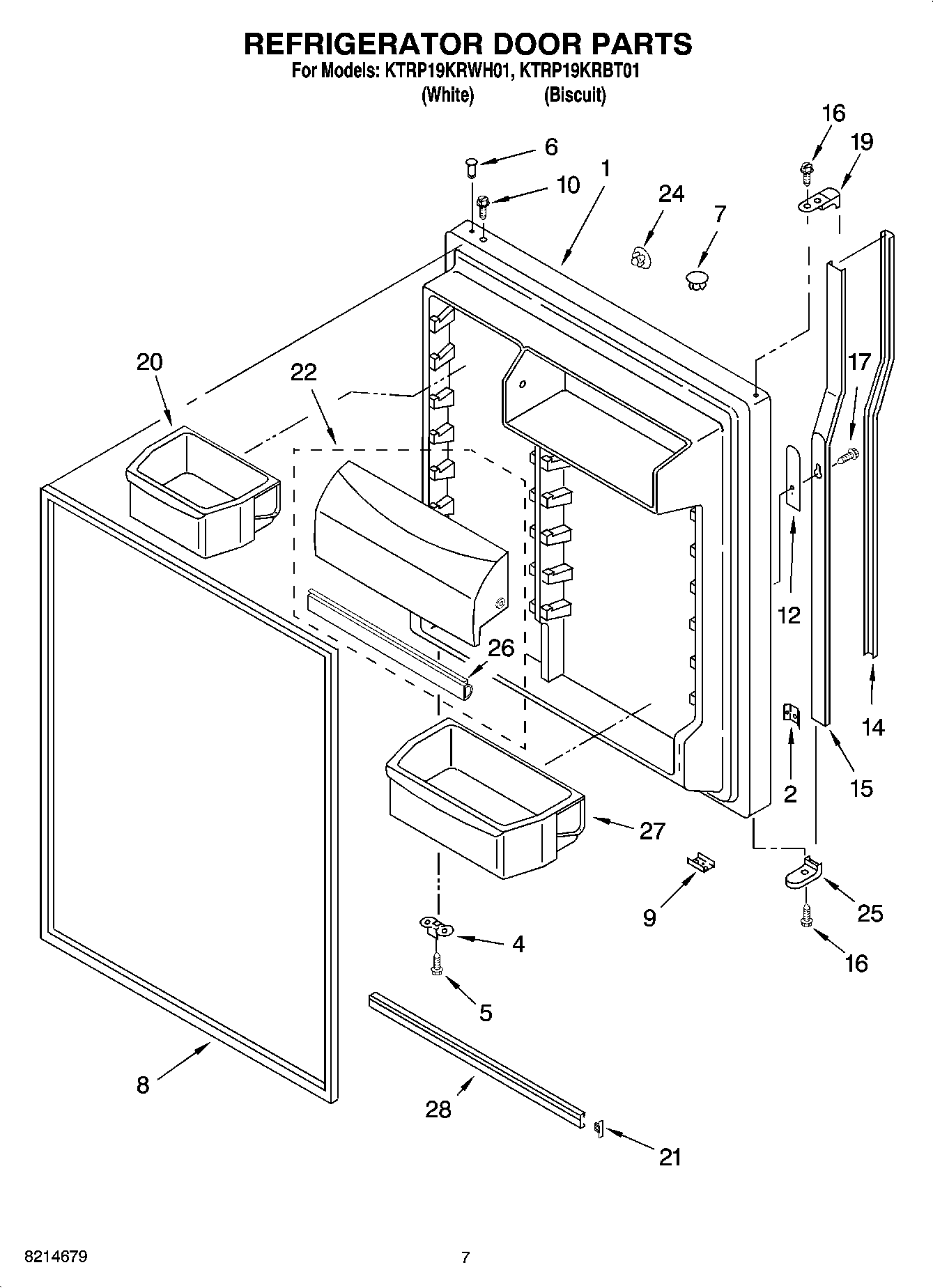

KTRP19KRWH01 04 – REFRIGERATOR DOOR PARTS

KTRP19KRWH01 04 – REFRIGERATOR DOOR PARTS

Written by

in

KTRP19KRWH01 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Biscuit (Includes No.6 & No.8))
1Refrigerator Door (Includes No.6 & No.8) (White)
2WP939101 Whirlpool Refrigerator Plate
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212649 Whirlpool Refrigerator Button Plug
82159057 Whirlpool Refrigerator Fresh Food Door Gasket
9Tap Plate
10WP8281206 Whirlpool Refrigerator Screw
12Spacer
14Insert, Handle (Biscuit)
14Insert, Handle (White)
15Retainer, Insert (Biscuit)
15Retainer, Insert (White)
16WP489357 Whirlpool Recessed Screw
17Screw
19Endcap
19Endcap (Biscuit)
20Bin, Door Shelf (3)
21WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
22Door, Compartment (Includes 9)
24WP2189000 Whirlpool Refrigerator Handle Plug
24WP2200936 Whirlpool Refrigerator Handle Plug
25Endcap, Handle (White)
25Endcap, Bottom (Biscuit)
26Gasket, Door Compartment
27Bin, Door Shelf
28WPW10421484 Whirlpool Refrigerator Door Trim
