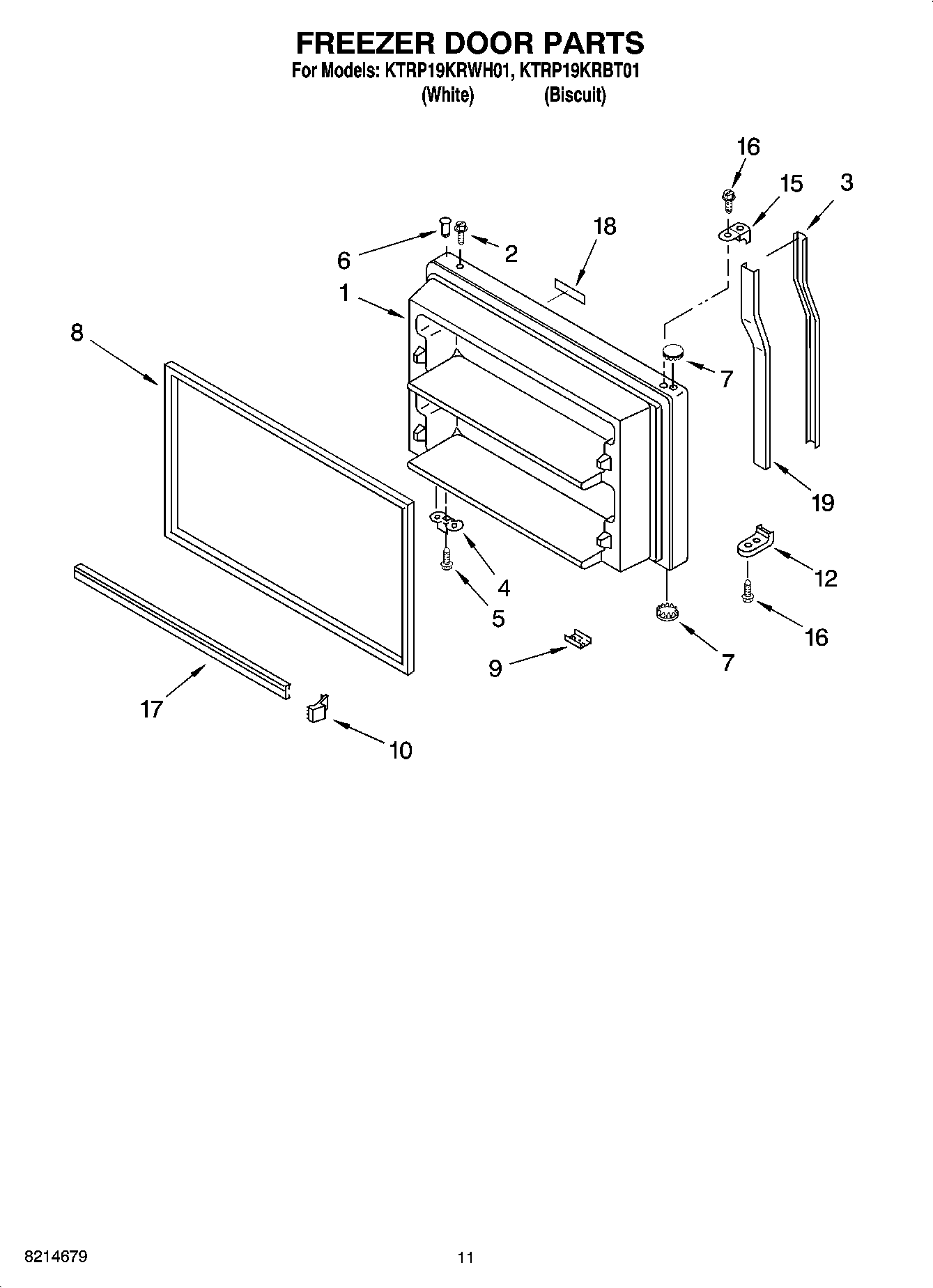

KTRP19KRWH01 06 – FREEZER DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

KTRP19KRWH01 06 – FREEZER DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KTRP19KRWH01 06 – FREEZER DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799832
	WPL 799833
	WPL 876029
	W11729596 Whirlpool Ice Maker Field Install Kit
	WPL ARI110915A
	WPL ARI110914A
	WPL ARI110913A
	WPL ARI110912A
	WPL ARI110916A
	Cleaner, Stainless Steel
	72032 Whirlpool Touch Up Paint Black
	TAPE, VINYL (3/4 X 108“)
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	Torx Key
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	876370 Whirlpool Refrigerator Insulation
	WP503695 Whirlpool Refrigerator Sealer
	WP505587 Whirlpool Refrigerator Sealer
	WP542638 Whirlpool Refrigerator Grease
	285006 Whirlpool Spray
1	Freezer Door Panel (Biscuit)
1	Freezer Door (Includes Illus. 2,6 & 8)
2	WP8281206 Whirlpool Refrigerator Screw
3	Insert, Handle (Biscuit)
3	Insert, Handle (White)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212649 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159327 Whirlpool Refrigerator Door Gasket
9	Tap Plate
10	ENDCAP
12	Endcap (Biscuit)
12	Endcap
15	Endcap
15	Endcap (Biscuit)
16	WP489357 Whirlpool Recessed Screw
17	Trim-Door (2)
18	Nameplate (Biscuit)
18	Nameplate (White)
19	Insert, Handle (Biscuit)
19	Insert, Retainer (White)
