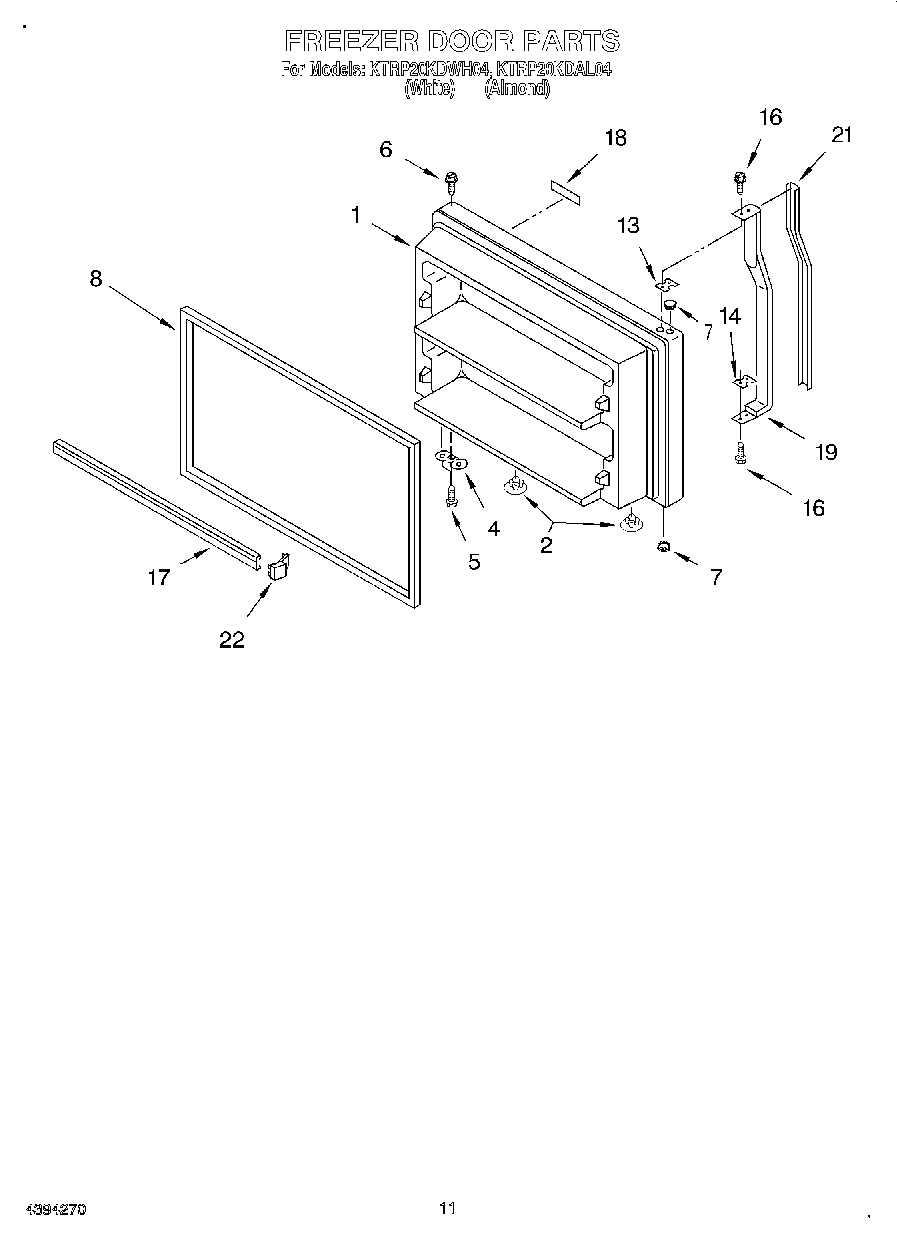

KTRP20KDAL04 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2180059
	WPL LIT2184594
	Torx Key
	WPL LIT2193090
1	Freezer Door (Includes No.23 & No.32) (Almond)
1	W11023679 Whirlpool Refrigerator Door Assembly
2	Hole Plug (2) (Almond)
2	Hole Plug (2)
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	WHITE DOOR GASKET-FIP
13	Spacer, Handle
14	Shim, Bottom
16	WP488920 Whirlpool Refrigerator Screw
17	Trim-Door (2)
18	Nameplate (White Model)
18	Nameplate (Almond Model)
19	Handle
21	Insert, Handle (White)
21	Insert, Handle (Almond)
22	Primer White (13 Oz. Spray Can)
22	Enamel Black (13 Oz. Spray Can)
22	Enamel White (13 Oz. Spray Can)
22	212643 Whirlpool Refrigerator Permagum Sealer
22	Door Reversal Instructions
22	Enamel Almond (13 Oz. Spray Can)
22	WPL 876029
22	799344 Whirlpool Refrigerator Paint
22	WP72107 Whirlpool Touchup
22	Almond (Uncut)
22	511873 Whirlpool Refrigerator Paint
22	606755 Whirlpool Refrigerator Bag
22	833938 Whirlpool Refrigerator Terminal
22	876370 Whirlpool Refrigerator Insulation
22	WP503695 Whirlpool Refrigerator Sealer
22	WP505587 Whirlpool Refrigerator Sealer
22	WP542638 Whirlpool Refrigerator Grease
22	TAPE, VINYL (3/4 X 108“)
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
22	WPL 799832
22	WPL 799833
22	72032 Whirlpool Touch Up Paint Black
22	ENDCAP
22	72017 Whirlpool Appliance Touch-Up Paint White
