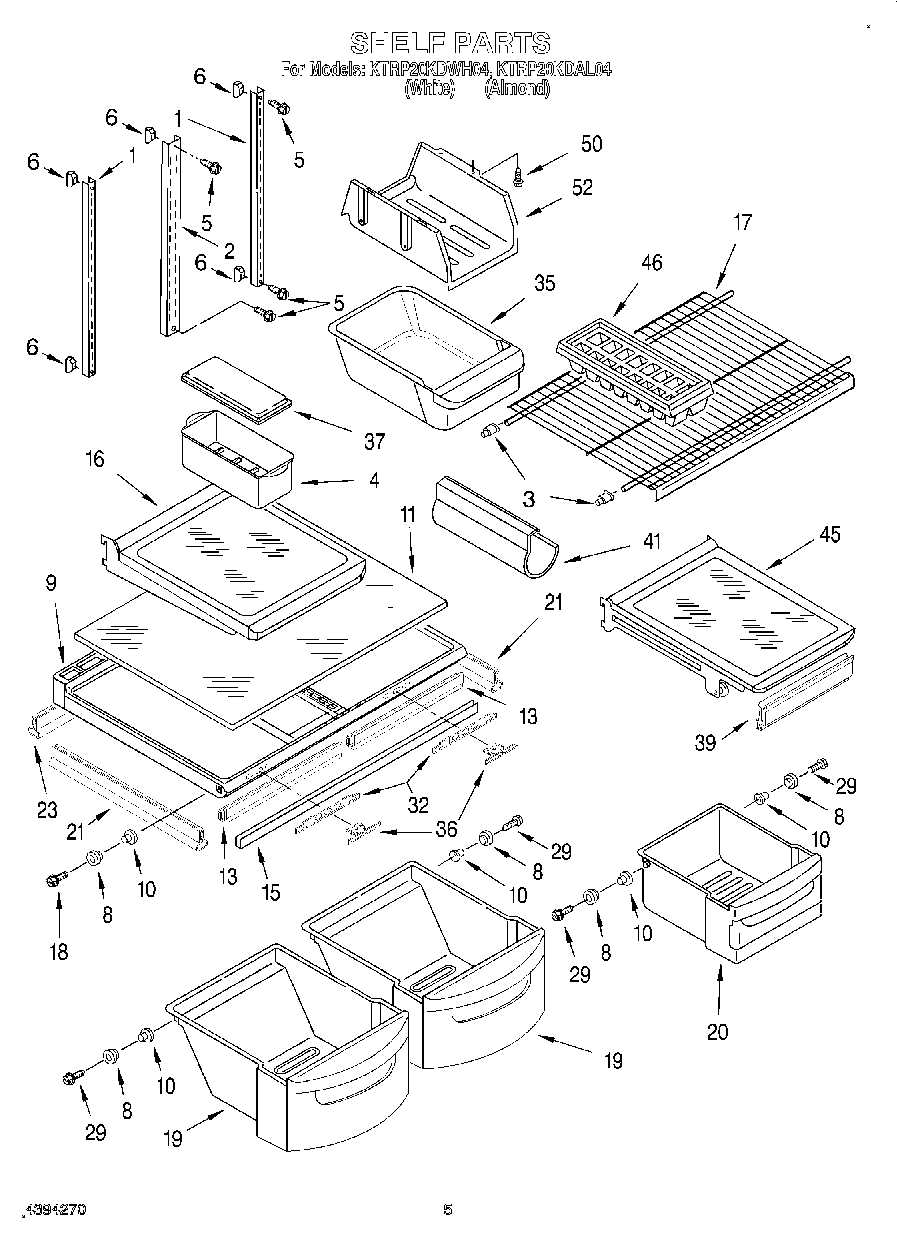

KTRP20KDWH04 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	2163762 Whirlpool Refrigerator Cup Assembly
4	W10136387A Whirlpool Refrigerator Egg Container
5	W11544659 Whirlpool Refrigerator Screw
6	520965 Whirlpool Refrigerator Support
8	Roller
9	Crisper Cover (Includes Rollers)
10	Eyelet, Roller
11	Glass, Crisper Cover
13	WP1125528 Whirlpool Refrigerator Gasket
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard (3) (Includes Rollers)
17	Shelf, Freezer
18	WPW10272364 Whirlpool Refrigerator Screw
19	Pan, Crisper (Includes Rollers)
20	Pan, Meat (Includes Rollers)
21	Gasket, Crisper Cover (Side) (4)
23	Gasket, Pan Cover-Rear
29	WP489261 Whirlpool Refrigerator Screw
32	Slide, Humidity
35	Pan, Ice Cube
36	Button, Humidity Control
37	Cover
39	Gasket, Front
41	W10777924 Whirlpool Refrigerator Wine Rack
45	Shelf Assembly, Spillguard (Incl. No.39 & No.40)
46	WP841180A Whirlpool Microwave Glass Turntable Tray
50	WP489442 Whirlpool Refrigerator Screw
52	Shelf
