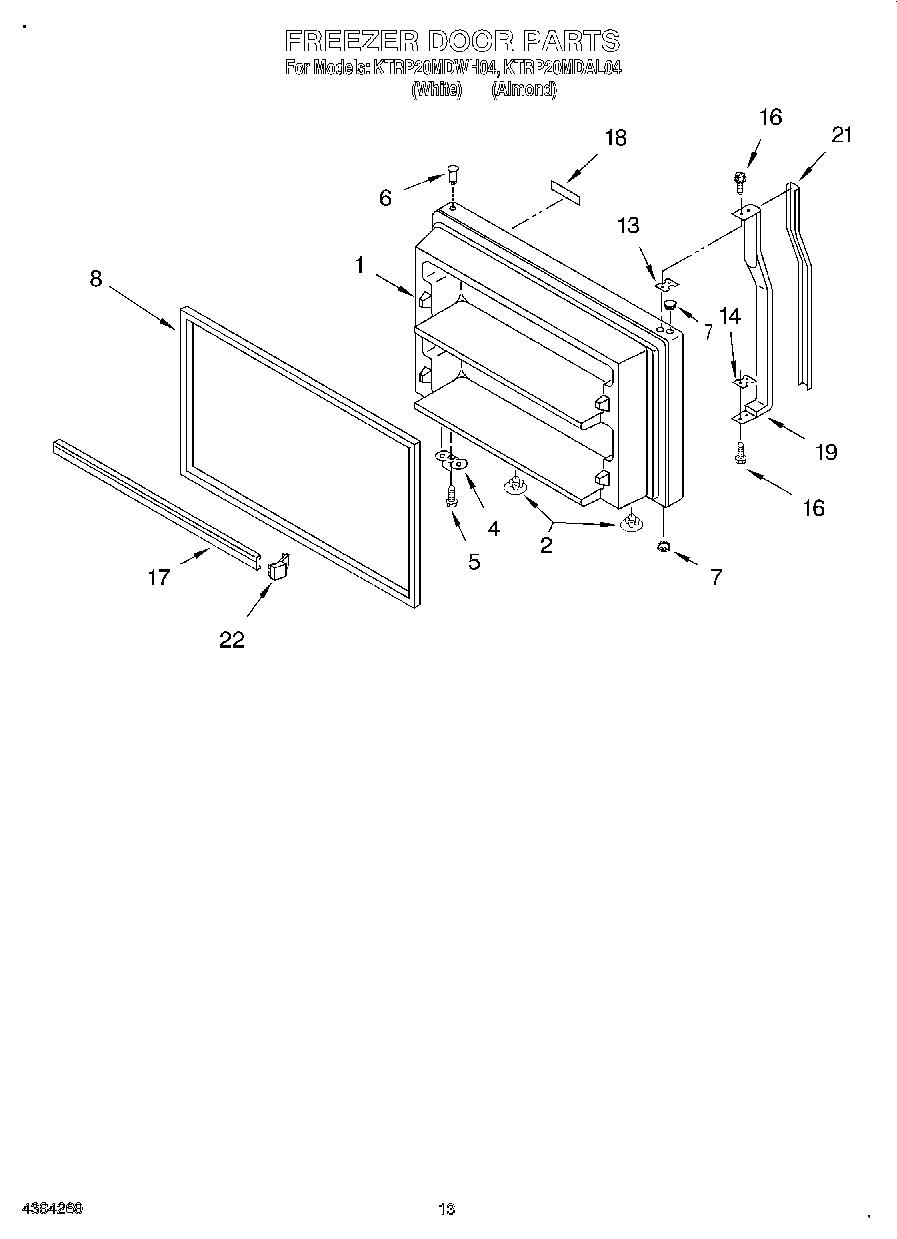

KTRP20MDAL04 07 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2184594
	Modular Icemaker Service Sheet
	Torx Key
	WPL LIT2193090
	WPL LIT2180059
1	W11023679 Whirlpool Refrigerator Door Assembly
1	Freezer Door (Includes No.23 & No.32) (Almond)
2	Hole Plug (2) (Almond)
2	Hole Plug (2)
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	WHITE DOOR GASKET-FIP
13	Spacer, Handle
14	Shim, Bottom
16	WP488920 Whirlpool Refrigerator Screw
17	Trim-Door (2)
18	Nameplate (White Model)
18	Nameplate (Almond Model)
19	Handle
21	Insert, Handle (White)
21	Insert, Handle (Almond)
22	350930 Whirlpool White Spray Paint
22	Door Reversal Instructions
22	72017 Whirlpool Appliance Touch-Up Paint White
22	799344 Whirlpool Refrigerator Paint
22	350956 Whirlpool Spray Assembly
22	WP72107 Whirlpool Touchup
22	Almond (Uncut)
22	212643 Whirlpool Refrigerator Permagum Sealer
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
22	WP542638 Whirlpool Refrigerator Grease
22	WP503695 Whirlpool Refrigerator Sealer
22	TAPE, VINYL (3/4 X 108“)
22	876370 Whirlpool Refrigerator Insulation
22	WPL 799832
22	WPL 799833
22	WPL 876029
22	833938 Whirlpool Refrigerator Terminal
22	606755 Whirlpool Refrigerator Bag
22	511873 Whirlpool Refrigerator Paint
22	285006 Whirlpool Spray
22	72032 Whirlpool Touch Up Paint Black
22	ENDCAP
22	350942 Whirlpool Spray Paint
22	WP505587 Whirlpool Refrigerator Sealer
