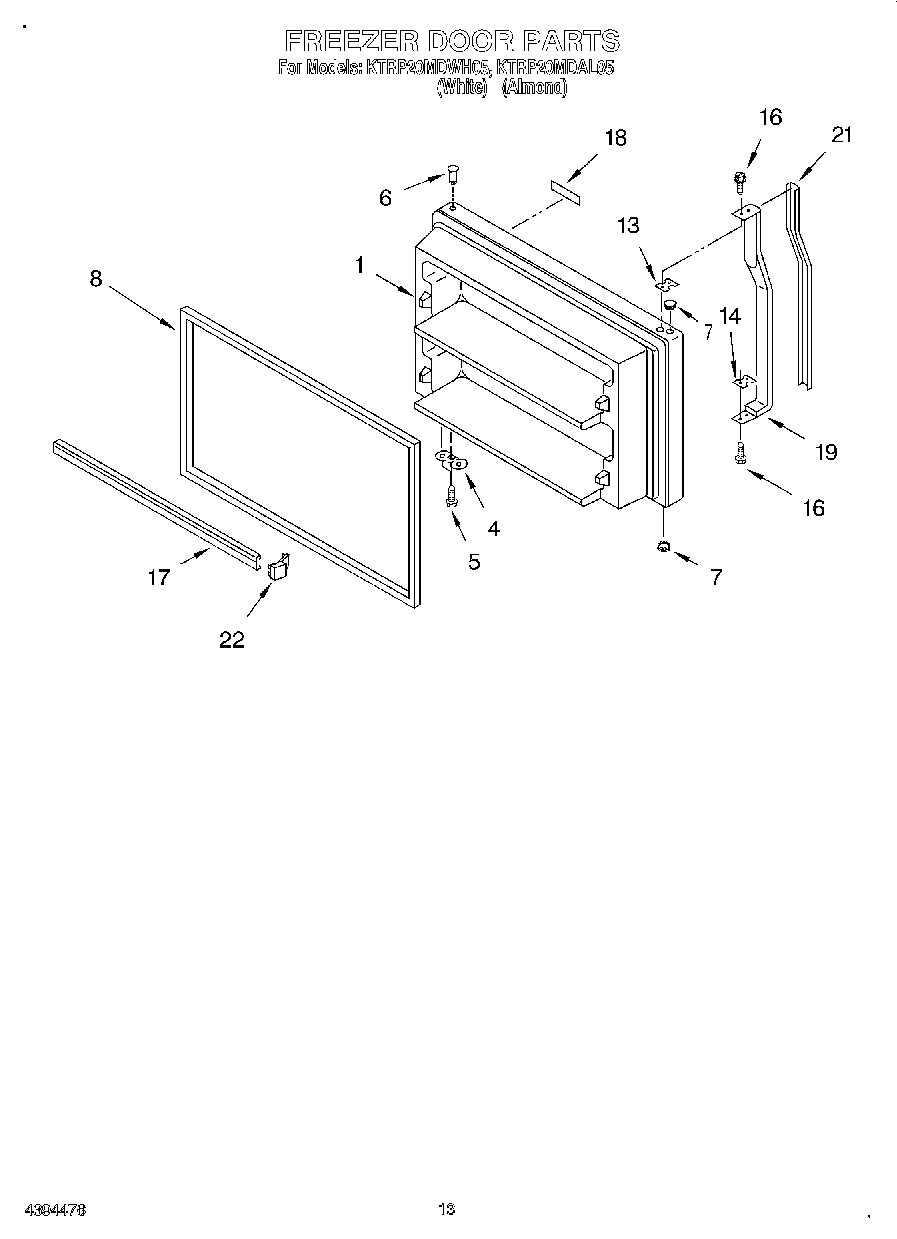

KTRP20MDAL05 07 – FREEZER DOOR, LIT/OPTIONAL

KTRP20MDAL05 07 – FREEZER DOOR, LIT/OPTIONAL

Written by

in

KTRP20MDAL05 07 – FREEZER DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2184594
WPL LIT2180059
WPL LIT2193090
Modular Icemaker Service Sheet
Torx Key
1W11023679 Whirlpool Refrigerator Door Assembly
1Freezer Door (Includes No.23 & No.32) (Almond)
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8Door Gasket, Magnetic
13Spacer, Handle
14Shim, Bottom
16WP488920 Whirlpool Refrigerator Screw
17Trim-Door (2)
18Nameplate (Almond Model)
18Nameplate (White Model)
19Handle
21Insert, Handle (Almond)
21Insert, Handle (White)
22Almond (Uncut)
2272032 Whirlpool Touch Up Paint Black
22Door Reversal Instructions
22ENDCAP
22285006 Whirlpool Spray
22CEMENT, ALUMILASTIC (1 1/4 OZ.)
22350956 Whirlpool Spray Assembly
2272017 Whirlpool Appliance Touch-Up Paint White
22799344 Whirlpool Refrigerator Paint
22WP72107 Whirlpool Touchup
22212643 Whirlpool Refrigerator Permagum Sealer
22350942 Whirlpool Spray Paint
22511873 Whirlpool Refrigerator Paint
22606755 Whirlpool Refrigerator Bag
22833938 Whirlpool Refrigerator Terminal
22876370 Whirlpool Refrigerator Insulation
22WP503695 Whirlpool Refrigerator Sealer
22WP505587 Whirlpool Refrigerator Sealer
22WP542638 Whirlpool Refrigerator Grease
22TAPE, VINYL (3/4 X 108“)
22WPL 799832
22WPL 799833
22WPL 876029
22350930 Whirlpool White Spray Paint
