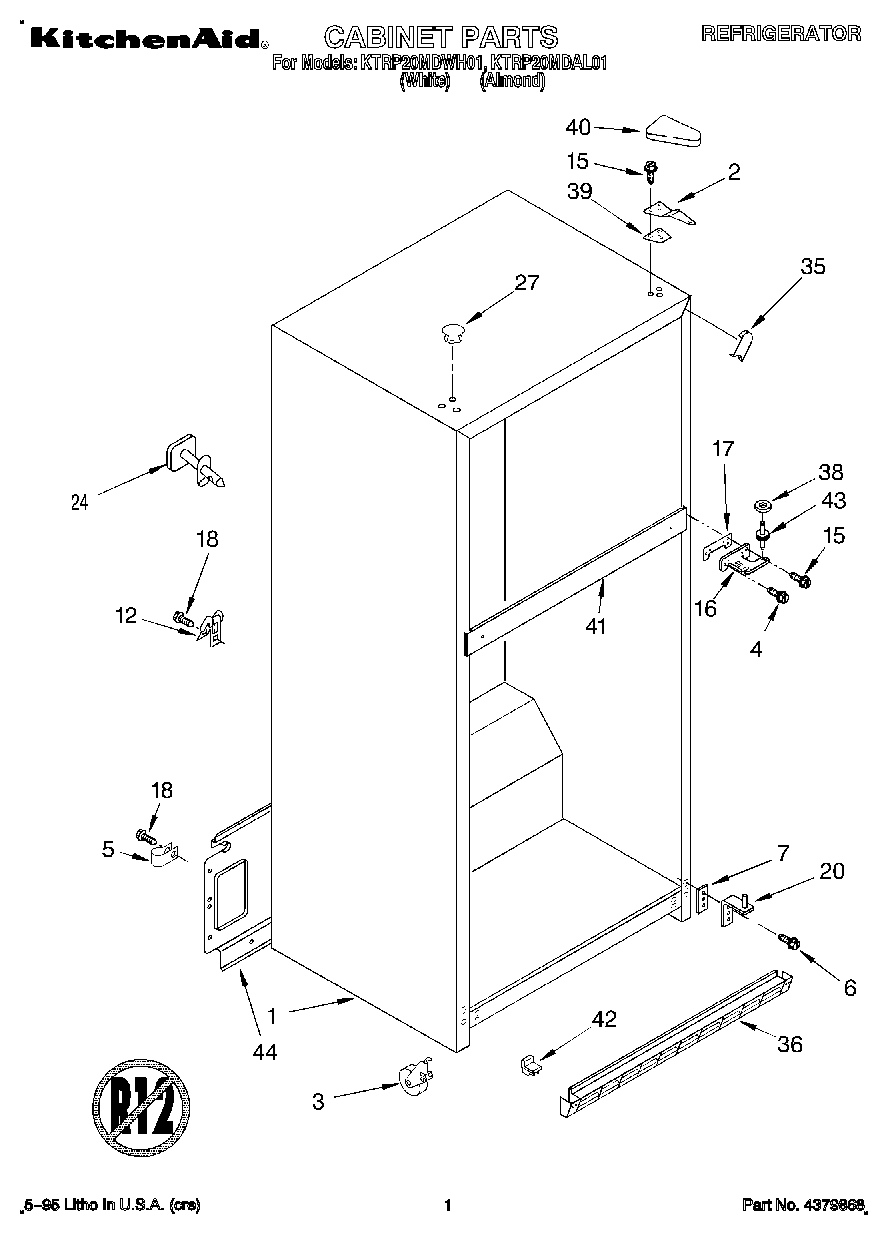

KTRP20MDWH01 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2WP2189412 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4Screw
5WP488366 Whirlpool Refrigerator Clamp
6Screw
7Shim, Bottom Hinge
12549193 Whirlpool Refrigerator Power Clamp
15WP999367 Whirlpool Refrigerator Screw
16WP2254618 Whirlpool Center Door Hinge
17Shim, Hinge Center
18WP489463 Whirlpool Refrigerator Screw
20Hinge, Butt
24Fitting, Water Tube (Not Serviced)
27Hole Plug (6) (Almond)
27WP2151652 Whirlpool Refrigerator Button Plug
35WPW10283959 Whirlpool Refrigerator Filler
35Corner Filler (2) (Almond)
36Grille (White)
36Grille (Almond)
38WP487576 Whirlpool Washer
39Shim, Hinge Top
40Cover, Hinge (Almond)
40WP2213360 Whirlpool Refrigerator Cover
41Rail Center (Not Serviced)
42Corner Filler, Grille (Almond)
42Corner Filler, Grille (White)
44Cover, Unit
