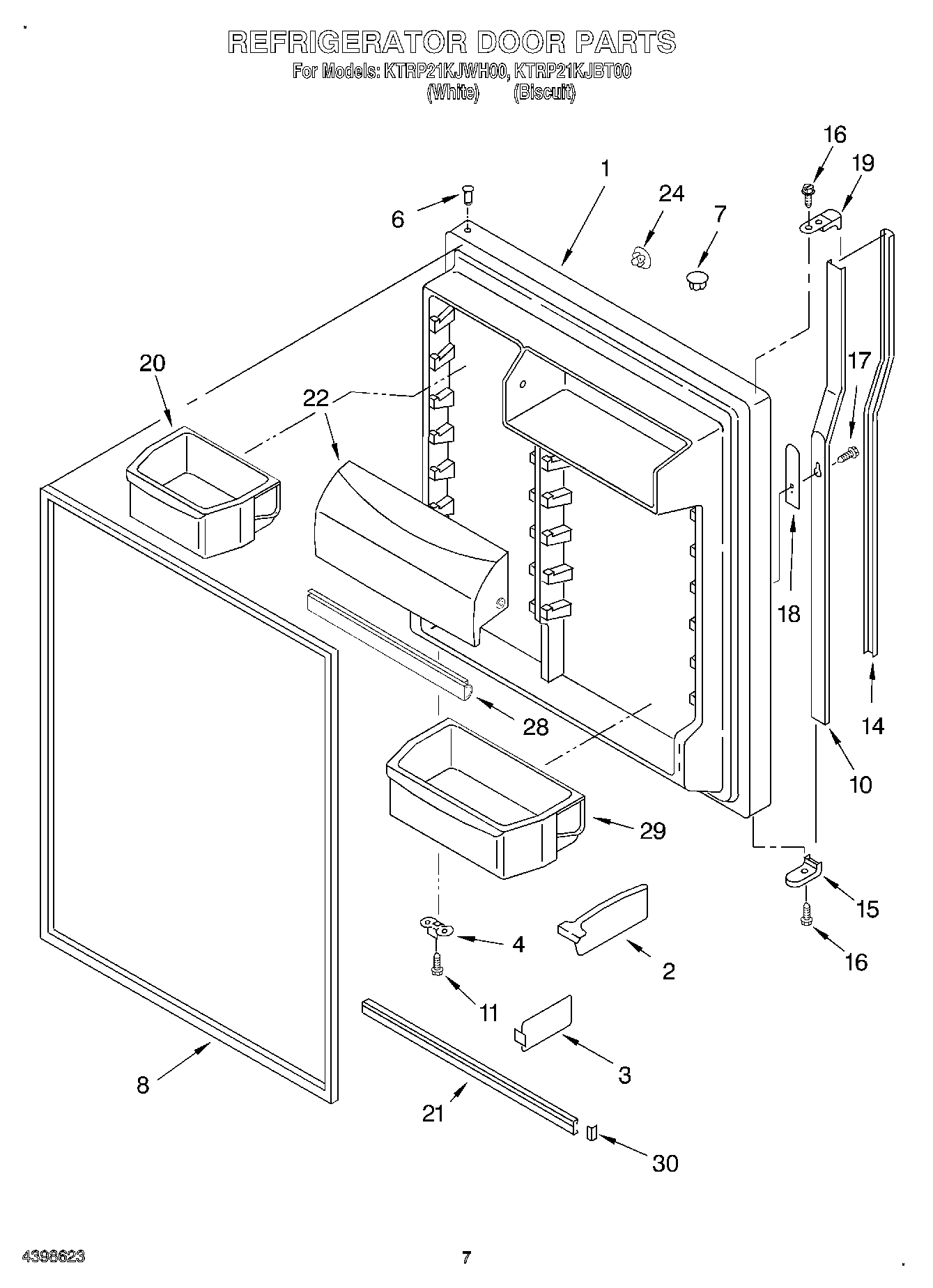

KTRP21KJBT00 04 – REFRIGERATOR DOOR

KTRP21KJBT00 04 – REFRIGERATOR DOOR

Written by

in

KTRP21KJBT00 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.8) (Biscuit)
1Refrigerator Door (Includes No.6 & No.8) (White)
3Divider-Door
4W11745278 Whirlpool Bracket
6WP2183003 Whirlpool Thimble
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159061 Whirlpool Refrigerator Door Gasket
10Retainer, Insert (Biscuit)
10Retainer, Insert (White)
11WP8281206 Whirlpool Refrigerator Screw
14Insert, Handle (Biscuit)
14Insert, Handle (White)
15Endcap, Handle (Almond)
15Endcap, Handle (White)
16WP489357 Whirlpool Recessed Screw
17Screw
18Spacer
19Endcap (Biscuit)
19Endcap
20Bin, Door Shelf Narrow (3)
21WPW10421486 Whirlpool Refrigerator Door Trim
22WP2313637 Whirlpool Cutting Grid Assembly
24WP2200936 Whirlpool Refrigerator Handle Plug
24WP2189000 Whirlpool Refrigerator Handle Plug
28Gasket, Door Compartment
29Bin, Door Shelf
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
