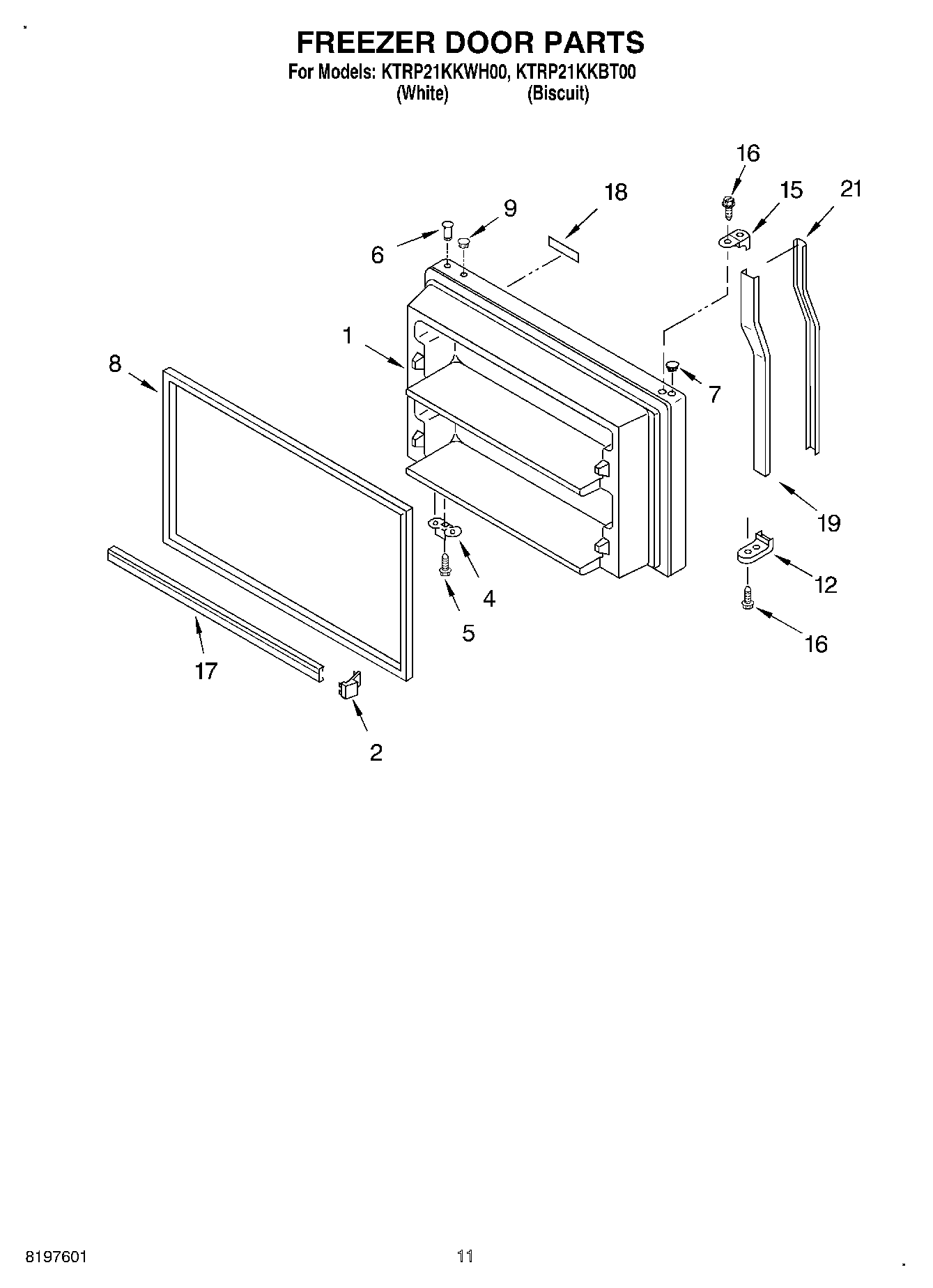

KTRP21KKWH00 06 – FREEZER DOOR, OPTIONAL

KTRP21KKWH00 06 – FREEZER DOOR, OPTIONAL

Written by

in

KTRP21KKWH00 06 – FREEZER DOOR, OPTIONAL

Products

PositionProduct
1W11023688 Whirlpool Refrigerator Door Assembly
1W11023679 Whirlpool Refrigerator Door Assembly
2ENDCAP
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212649 Whirlpool Refrigerator Button Plug
8WHITE DOOR GASKET-FIP
9WP2200936 Whirlpool Refrigerator Handle Plug
9WP2189000 Whirlpool Refrigerator Handle Plug
12Endcap (Biscuit)
12Endcap
15Endcap (Biscuit)
15Endcap
16WP489357 Whirlpool Recessed Screw
17Trim, Door Shelf (2)
18Nameplate (Biscuit)
18Nameplate (White)
19Insert, Retainer (White)
19Insert, Handle (Biscuit)
21511873 Whirlpool Refrigerator Paint
214392901 Whirlpool Biscuit Spray Paint
214392899 Whirlpool Biscuit Touch-Up Paint
21212643 Whirlpool Refrigerator Permagum Sealer
21Almond (Uncut)
21WPL 799832
21Insert, Handle (White)
21350942 Whirlpool Spray Paint
21799344 Whirlpool Refrigerator Paint
2172017 Whirlpool Appliance Touch-Up Paint White
21350930 Whirlpool White Spray Paint
2172032 Whirlpool Touch Up Paint Black
21285006 Whirlpool Spray
21WPL 799833
21WPL 876029
21TAPE, VINYL (3/4 X 108“)
21PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
21Torx Key
21WP542638 Whirlpool Refrigerator Grease
21WP505587 Whirlpool Refrigerator Sealer
21WP503695 Whirlpool Refrigerator Sealer
21CEMENT, ALUMILASTIC (1 1/4 OZ.)
21876370 Whirlpool Refrigerator Insulation
21833938 Whirlpool Refrigerator Terminal
21606755 Whirlpool Refrigerator Bag
21Insert, Handle (Biscuit)
