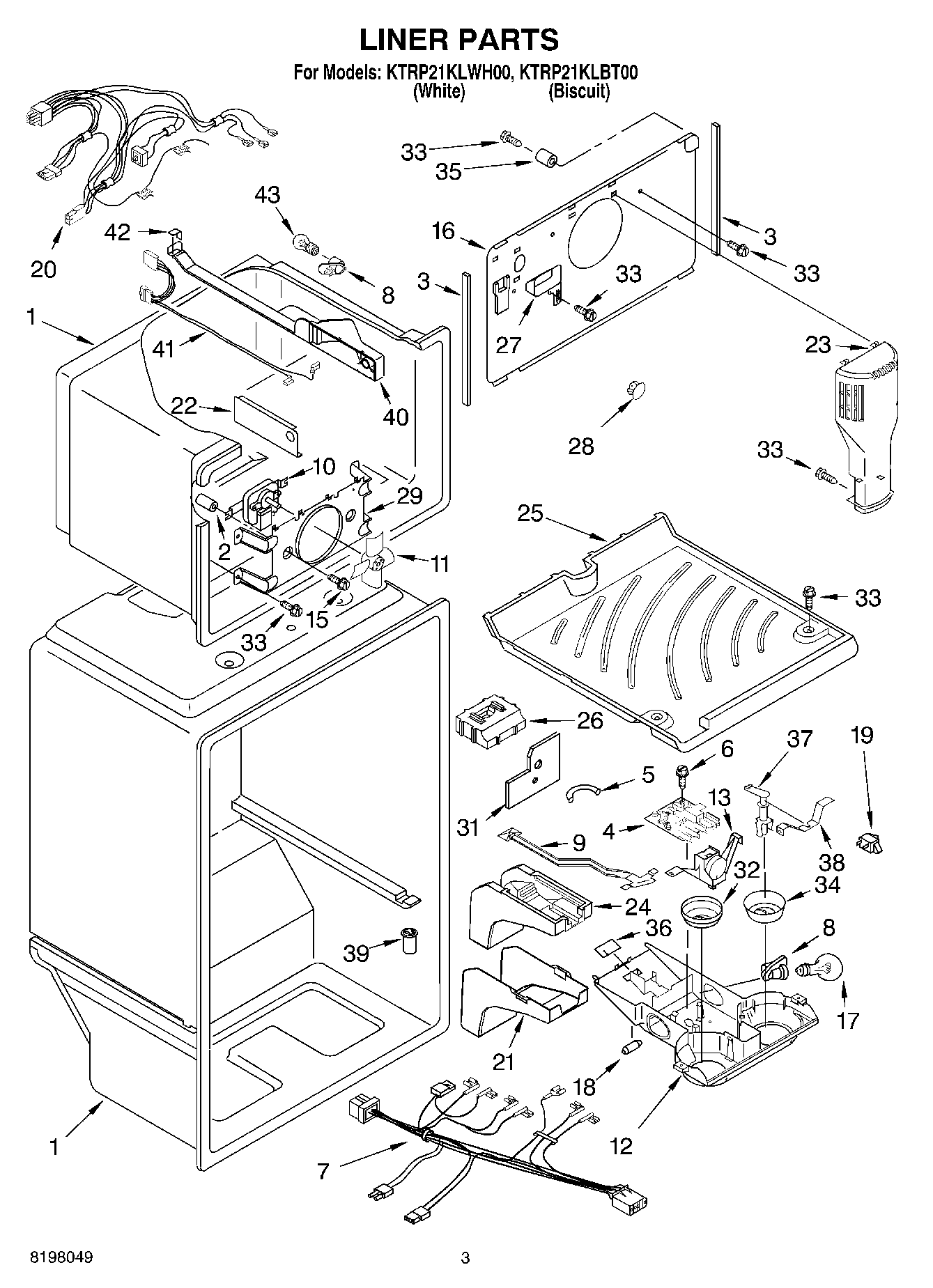

KTRP21KLBT00 02 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5	Thermostat Tube Barrier
6	WP98129 Whirlpool Screw
7	Wire Assembly, Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Items 5, 18 & 36)
15	Screw
16	Cover, Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Wire Assembly
21	Cover, Air Diffuser
22	Electrical Shield, Freezer Light
23	Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Floor, Freezer
26	AIR SEPARATOR ASSEMBLY
27	Cover, Hole
28	WP941839 Whirlpool Refrigerator Button Plug
29	Bracket, Fan Motor
31	Shield, heat
32	W10829461 Whirlpool Refrigerator Thermal Knob
33	3400518 Whirlpool Oven Foot Mount Screw
34	Knob, Damper
35	WP487996 Whirlpool Refrigerator Cap Tube
36	WP2205079 Whirlpool Refrigerator Seal
37	Post, Damper
38	Bracket, Damper Knob
39	WP2210509 Whirlpool Refrigerator Tub Valve
40	Housing Base
41	Wiring Harness, Freezer Light
42	Gasket, Rear
43	4396822 Whirlpool Refrigerator Light Bulb
