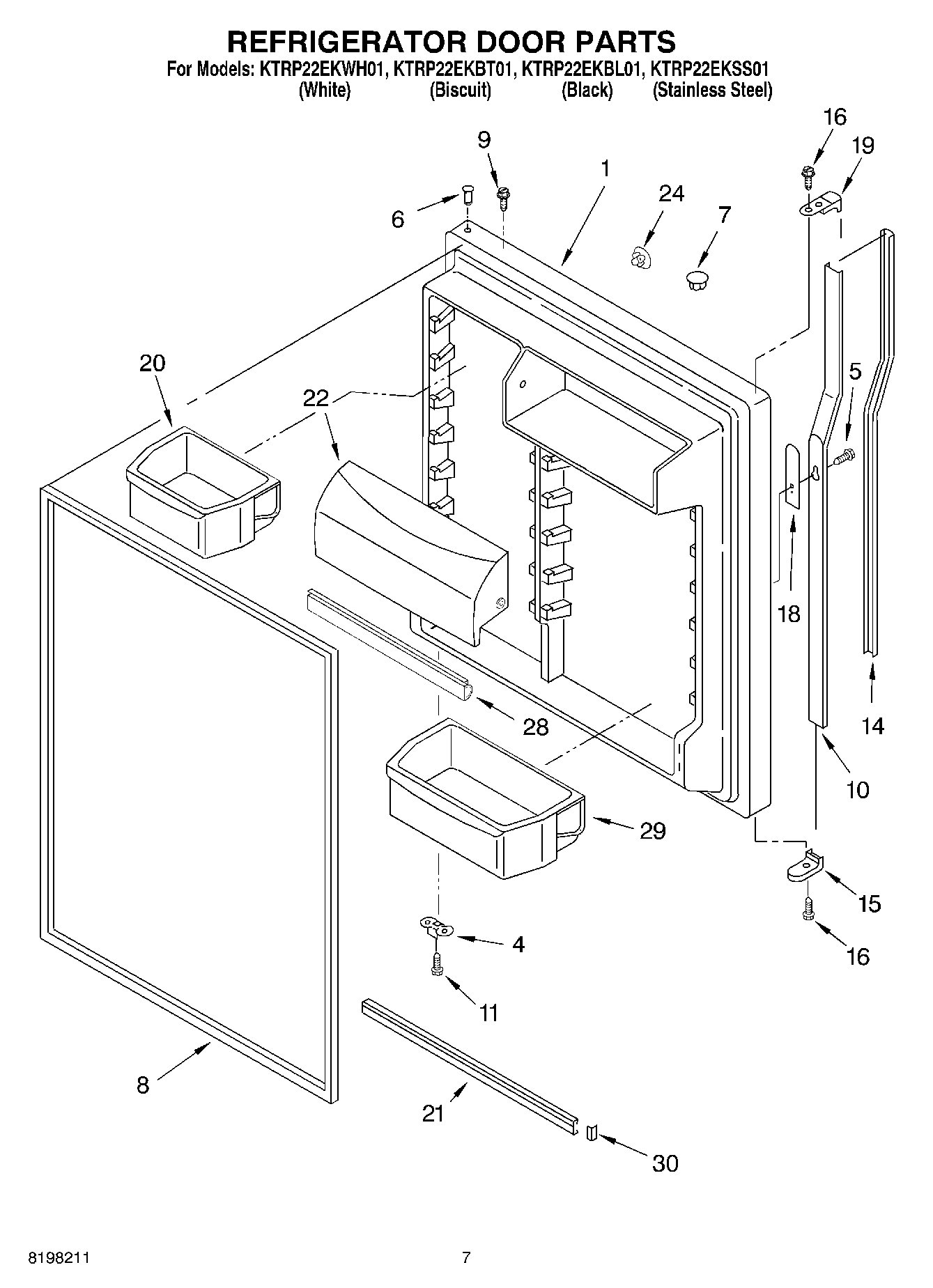

KTRP22EKBL01 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes 8) (Stainless Steel)
1	Refrigerator Door (Includes No.6 & No.8) (Biscuit)
1	Refrigerator Door (Includes No.8) (Black)
1	Refrigerator Door (Includes No.8) (White)
4	W11745278 Whirlpool Bracket
5	Screw
6	WP2183003 Whirlpool Thimble
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	WP2212649 Whirlpool Refrigerator Button Plug
8	2177311 Whirlpool Refrigerator Magnetic Door Gasket
8	2159061 Whirlpool Refrigerator Door Gasket
9	WP8281206 Whirlpool Refrigerator Screw
10	Retainer, Insert (White)
10	Retainer, Insert (Black)
10	Retainer, Insert (Biscuit)
11	WP488921 Whirlpool Refrigerator Screw
14	Insert, Handle (White)
14	Insert, Handle (Biscuit)
14	Insert, Handle (Black)
15	Endcap, Bottom (Biscuit)
15	Endcap, Handle (White)
15	Endcap, Handle (Black)
16	WP489357 Whirlpool Recessed Screw
18	Spacer
19	Endcap (Biscuit)
19	Endcap
19	End Cap (Black)
20	Bin, Door Shelf (2)
21	WPW10421486 Whirlpool Refrigerator Door Trim
22	Door, Compartment
24	WP2189009 Whirlpool Refrigerator Handle Plug
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	WP2200936 Whirlpool Refrigerator Handle Plug
28	Gasket, Door Compartment
29	Bin, Door Shelf
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
