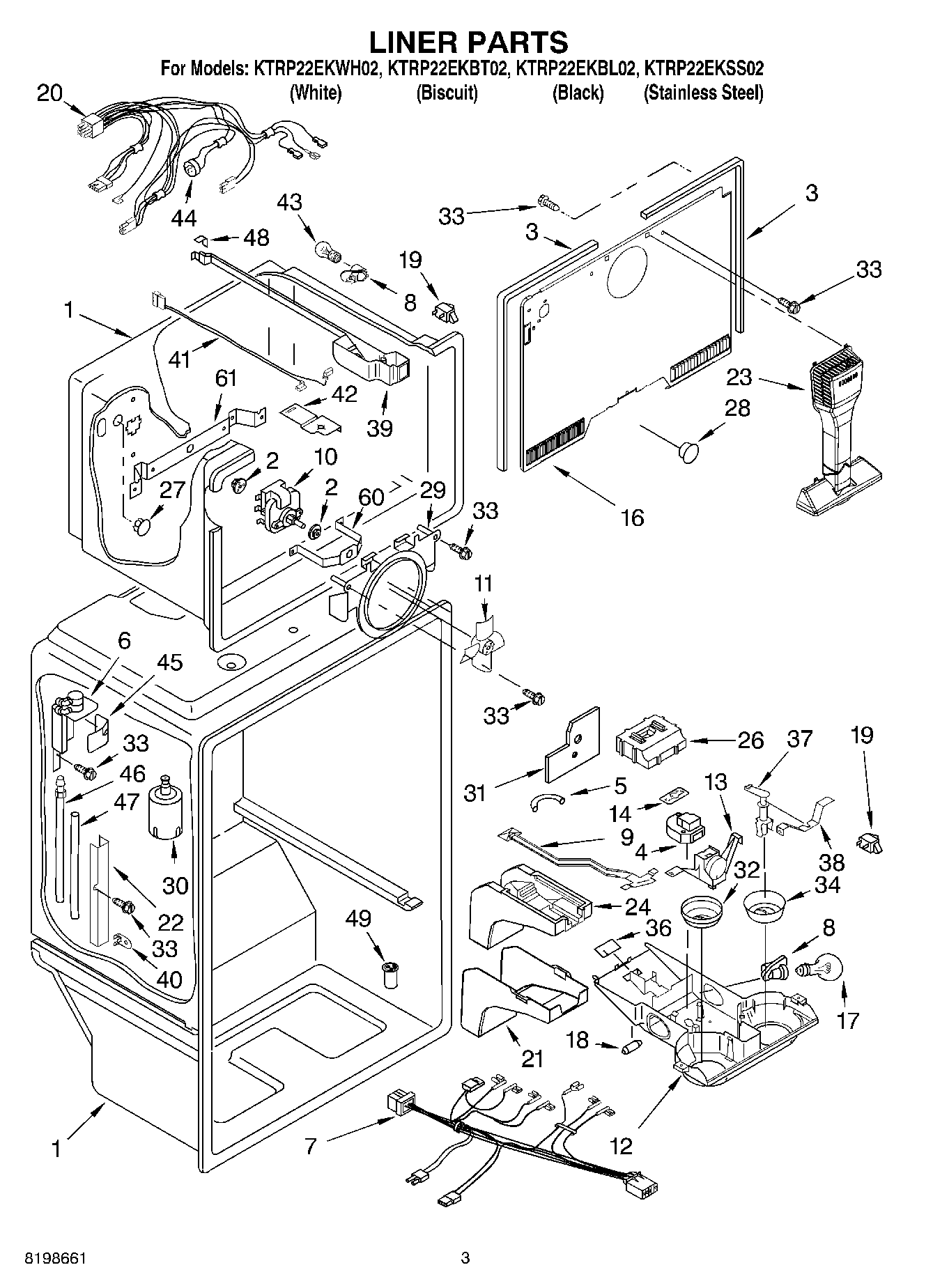

KTRP22EKBL02 02 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	Defrost Timer
5	Thermostat Tube Barrier
6	Bracket Assembly, Water Filter
7	Wire Assembly Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Items 5, 18 & 36)
14	Clip, Defrost Timer
16	Cover, Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Wire Assembly Fzr. Compartment (Includes Item 25)
21	Cover, Air Diffuser
22	Cover, Tubing
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
26	AIR SEPARATOR ASSEMBLY
27	940014 Whirlpool Refrigerator Primary Button Plug
28	WP941839 Whirlpool Refrigerator Button Plug
29	Bracket, Fan Motor
30	WPL 2213384
31	Shield, heat
32	W10829461 Whirlpool Refrigerator Thermal Knob
33	WP489478 Whirlpool Refrigerator Screw
34	Knob, Damper
36	WP2205079 Whirlpool Refrigerator Seal
37	Post, Damper
38	Bracket, Damper Knob
39	Housing Base
40	Clip, Retainer
41	Wiring Harness, Freezer Light
42	Electrical Shield, Freezer Light
43	4396822 Whirlpool Refrigerator Light Bulb
44	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
45	Cover, Filter
46	W10823511 Whirlpool Refrigerator Water Tube
47	Tube, Filter Inlet
48	Gasket, Rear
49	WP2210509 Whirlpool Refrigerator Tub Valve
60	Bracket, Evap. Fan, Front
61	Bracket, Evap. Fan, Rear
