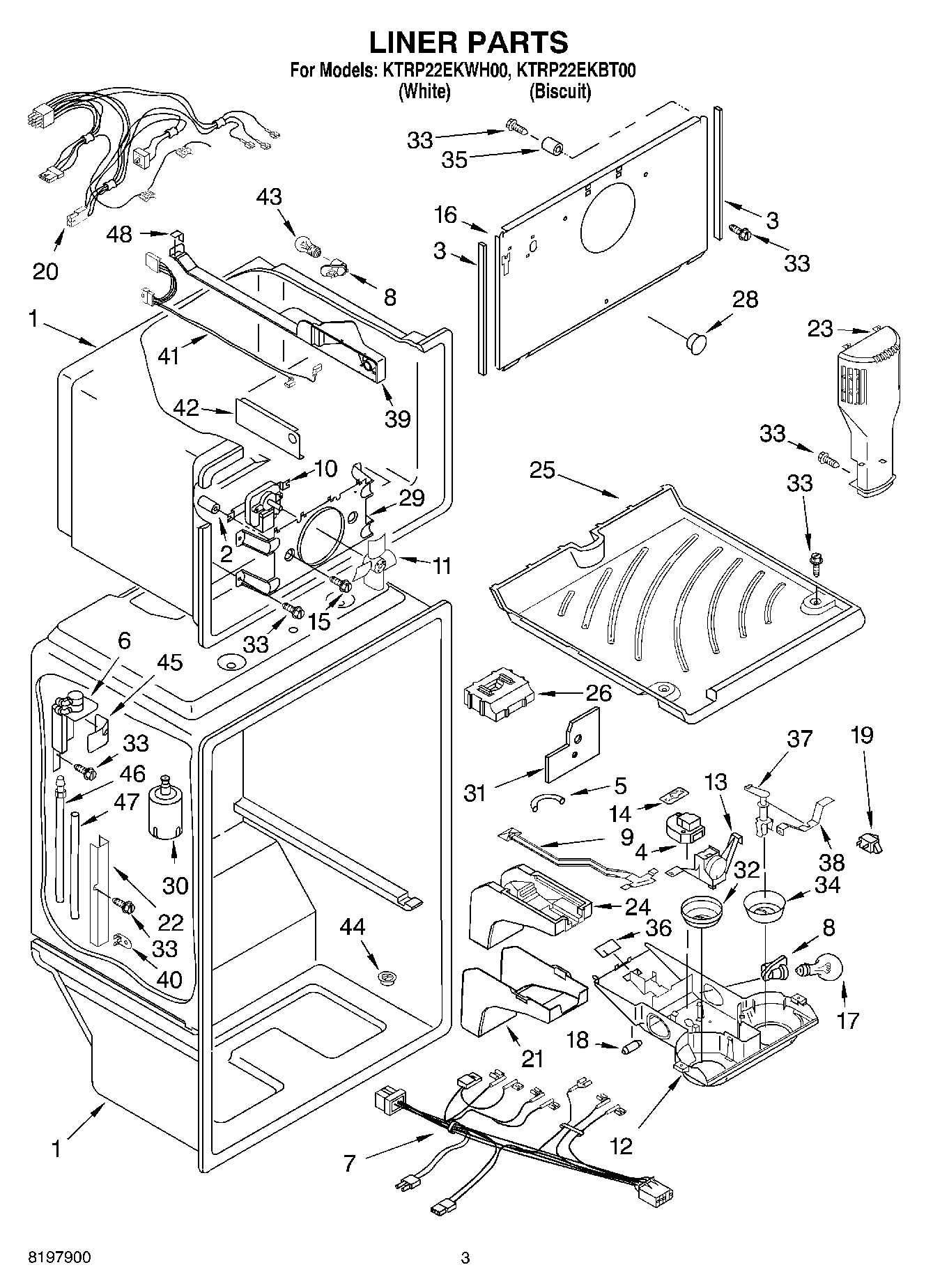

| 1 | Liner (Not A Serviceable Part) |
| 2 | Grommet |
| 3 | WP2254360 Whirlpool Refrigerator Gasket |
| 4 | Defrost Timer |
| 5 | Thermostat Tube Barrier |
| 6 | Bracket Assembly, Water Filter |
| 7 | Wire Assembly Control Box |
| 8 | 4387478 Whirlpool Refrigerator Light Socket |
| 9 | Damper, Air |
| 10 | Fan Motor |
| 11 | WP2163777 Whirlpool Refrigerator Fan Blade |
| 12 | Control Box |
| 13 | Thermostat Assy. (Includes Items 5, 18 & 36) |
| 14 | Clip, Defrost Timer |
| 15 | Screw |
| 16 | Cover, Evaporator |
| 17 | RANGE ONLY 40W 120V APPL BULB |
| 18 | Weight, Thermal |
| 19 | W11384469 Whirlpool Door Switch |
| 20 | Wire Assembly |
| 21 | Cover, Air Diffuser |
| 22 | Cover, Tubing |
| 23 | Air Tower |
| 24 | WP2189452 Whirlpool Refrigerator Diffuser |
| 25 | Floor, Freezer |
| 26 | AIR SEPARATOR ASSEMBLY |
| 28 | WP941839 Whirlpool Refrigerator Button Plug |
| 29 | Bracket, Fan Motor |
| 30 | WPL 2213384 |
| 31 | Shield, heat |
| 32 | W10829461 Whirlpool Refrigerator Thermal Knob |
| 33 | WP489478 Whirlpool Refrigerator Screw |
| 34 | Knob, Damper |
| 35 | WP487996 Whirlpool Refrigerator Cap Tube |
| 36 | WP2205079 Whirlpool Refrigerator Seal |
| 37 | Post, Damper |
| 38 | Bracket, Damper Knob |
| 39 | Housing Base |
| 40 | Clip, Retainer |
| 41 | Wiring Harness, Freezer Light |
| 42 | Electrical Shield, Freezer Light |
| 43 | 4396822 Whirlpool Refrigerator Light Bulb |
| 44 | WP2210509 Whirlpool Refrigerator Tub Valve |
| 45 | Cover, Filter |
| 46 | W10823511 Whirlpool Refrigerator Water Tube |
| 47 | Tube, Filter Inlet |
| 48 | Gasket, Rear |
