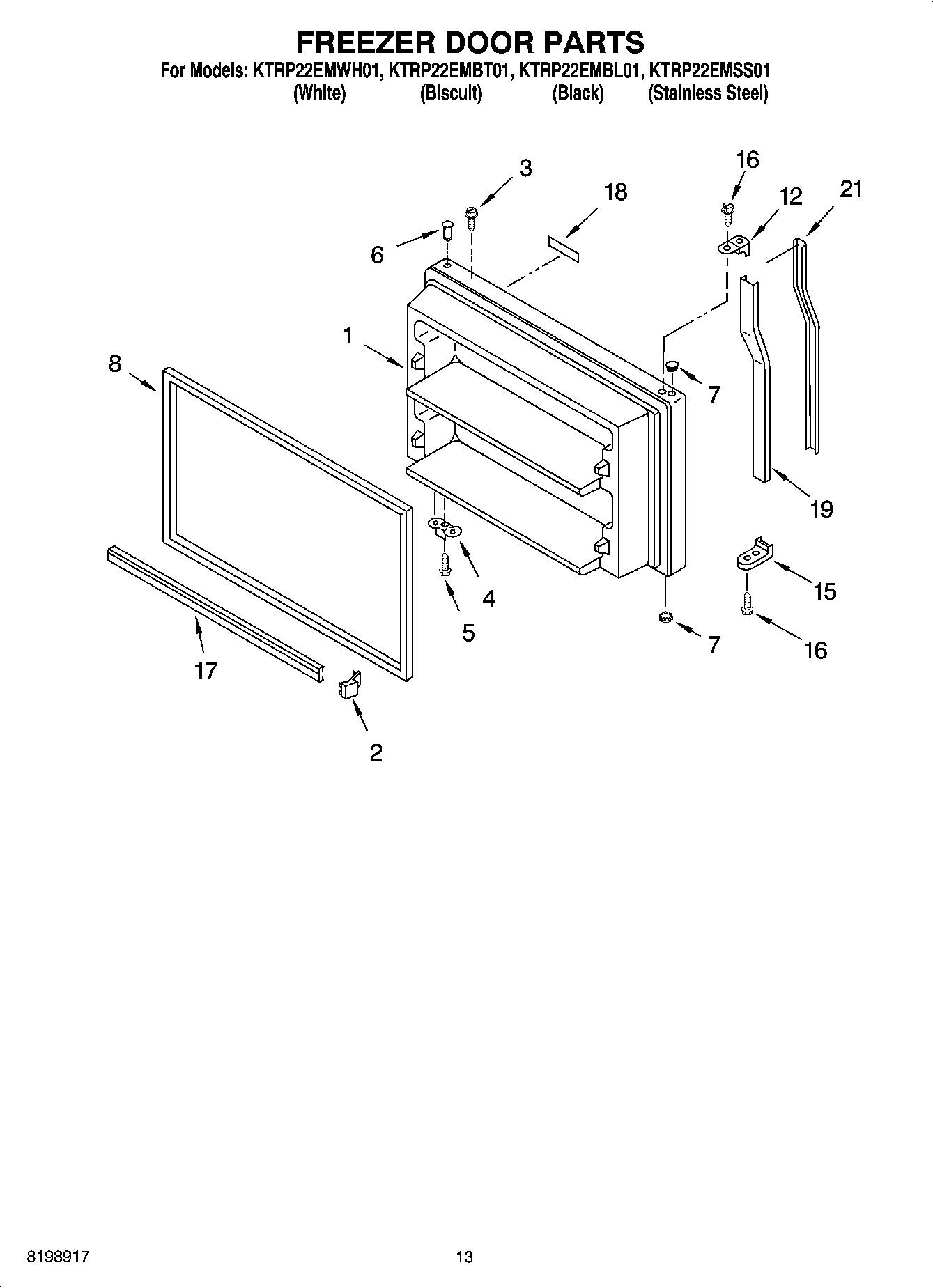

KTRP22EMBL01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Illus. 3,8 & 12) (Stainless)
1Freezer Door (Includes No.6 & No.8) (Biscuit)
1Freezer Door (Includes No.8) (Black)
1Freezer Door (Includes No.8) (White)
2ENDCAP
3WP8281206 Whirlpool Refrigerator Screw
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212651 Whirlpool Refrigerator Button Plug
82177310 Whirlpool Refrigerator Door Gasket
8WHITE DOOR GASKET-FIP
12Endcap
12Endcap, Handle (Black)
12Endcap (Biscuit)
15Endcap (Biscuit)
15End Cap (Black)
15Endcap
16WP489357 Whirlpool Recessed Screw
17Trim, Door Shelf (2)
18Nameplate (Black)
18Nameplate (Biscuit)
18Nameplate (White)
19Insert, Handle (Biscuit)
19Insert, Retainer (Black)
19Insert, Retainer (White)
21Insert, Handle (Biscuit)
21Insert, Handle (White)
21Insert, Handle (Black)
