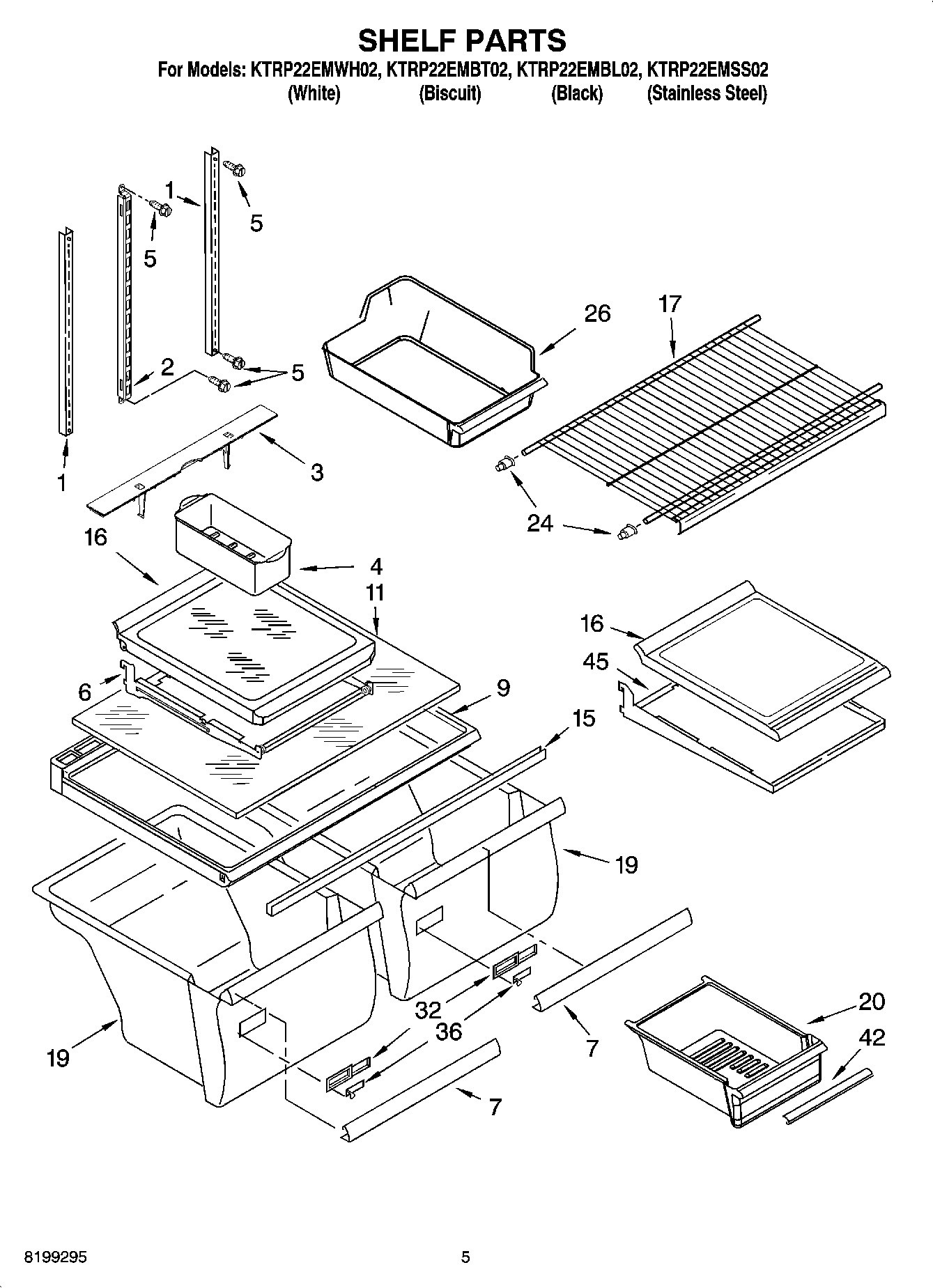

KTRP22EMBT02 03 – SHELF PARTS

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	Deflector-Air
4	W10136387A Whirlpool Refrigerator Egg Container
5	WP489478 Whirlpool Refrigerator Screw
6	Frame Assembly, Shelf
7	WP2195341 Whirlpool Refrigerator Pan Trim
9	WP2314549 Whirlpool Refrigerator Cover
11	WP2176225 Whirlpool Glass Shelf
15	WP2172748 Whirlpool Drawer Support
16	WP999520 Whirlpool Refrigerator Glass Shelf
17	Shelf, Freezer
19	W10854037 Whirlpool Refrigerator Crisper Pan
20	WP2218132K Whirlpool Crisper Meat Pan
24	2163762 Whirlpool Refrigerator Cup Assembly
26	2254352A Whirlpool Refrigerator Ice Container
32	WP2212446 Whirlpool Refrigerator Control Body
36	WP2176222 Whirlpool Refrigerator Slide
42	Trim, Meat Pan
45	Frame Assembly, Meat Shelf
