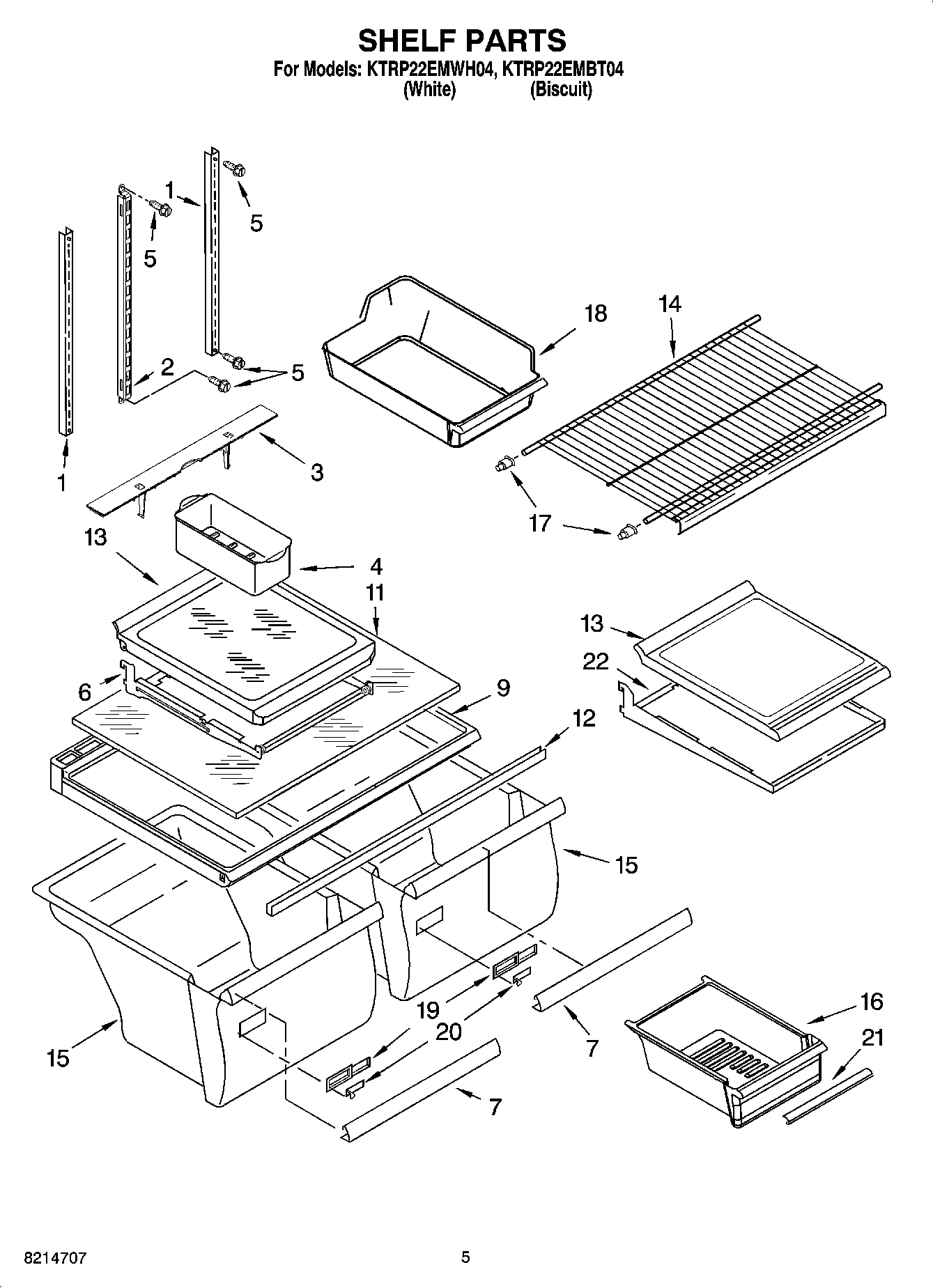

KTRP22EMBT04 03 – SHELF PARTS

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
3Deflector-Air
4W10136387A Whirlpool Refrigerator Egg Container
5WP489478 Whirlpool Refrigerator Screw
6Frame Assembly, Shelf
7WP2195341 Whirlpool Refrigerator Pan Trim
9WP2314549 Whirlpool Refrigerator Cover
11WP2176225 Whirlpool Glass Shelf
12WP2172748 Whirlpool Drawer Support
13WP999520 Whirlpool Refrigerator Glass Shelf
14Shelf, Freezer
15W10854037 Whirlpool Refrigerator Crisper Pan
16WP2218132K Whirlpool Crisper Meat Pan
172163762 Whirlpool Refrigerator Cup Assembly
182254352A Whirlpool Refrigerator Ice Container
19WP2212446 Whirlpool Refrigerator Control Body
20WP2176222 Whirlpool Refrigerator Slide
21Trim, Meat Pan
22Frame Assembly, Meat Shelf
