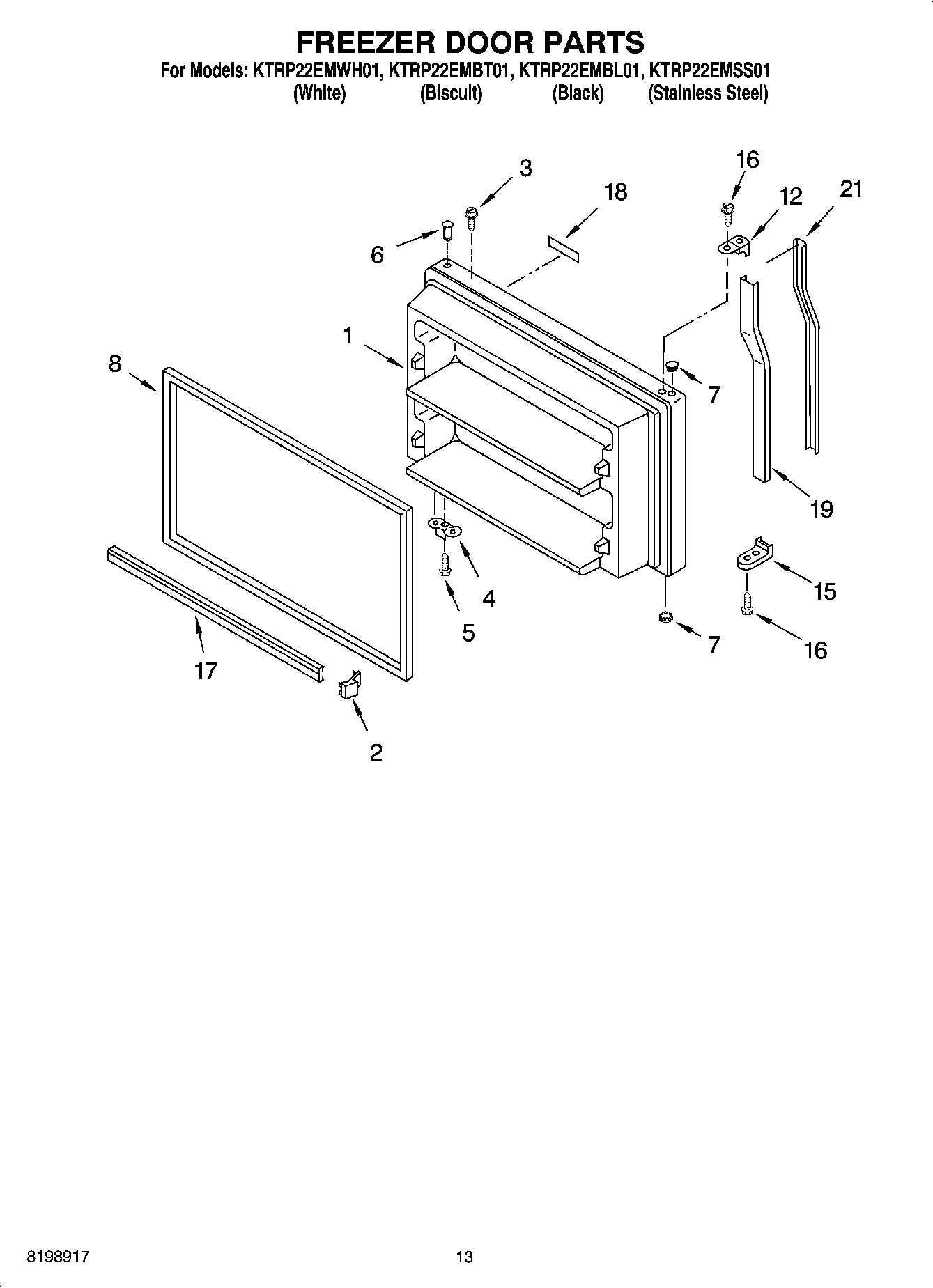

KTRP22EMSS01 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Illus. 3,8 & 12) (Stainless)
1	Freezer Door (Includes No.6 & No.8) (Biscuit)
1	Freezer Door (Includes No.8) (Black)
1	Freezer Door (Includes No.8) (White)
2	ENDCAP
3	WP8281206 Whirlpool Refrigerator Screw
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	WP2212649 Whirlpool Refrigerator Button Plug
7	WP2212651 Whirlpool Refrigerator Button Plug
8	2177310 Whirlpool Refrigerator Door Gasket
8	WHITE DOOR GASKET-FIP
12	Endcap
12	Endcap, Handle (Black)
12	Endcap (Biscuit)
15	Endcap (Biscuit)
15	End Cap (Black)
15	Endcap
16	WP489357 Whirlpool Recessed Screw
17	Trim, Door Shelf (2)
18	Nameplate (Black)
18	Nameplate (Biscuit)
18	Nameplate (White)
19	Insert, Handle (Biscuit)
19	Insert, Retainer (Black)
19	Insert, Retainer (White)
21	Insert, Handle (Biscuit)
21	Insert, Handle (White)
21	Insert, Handle (Black)
