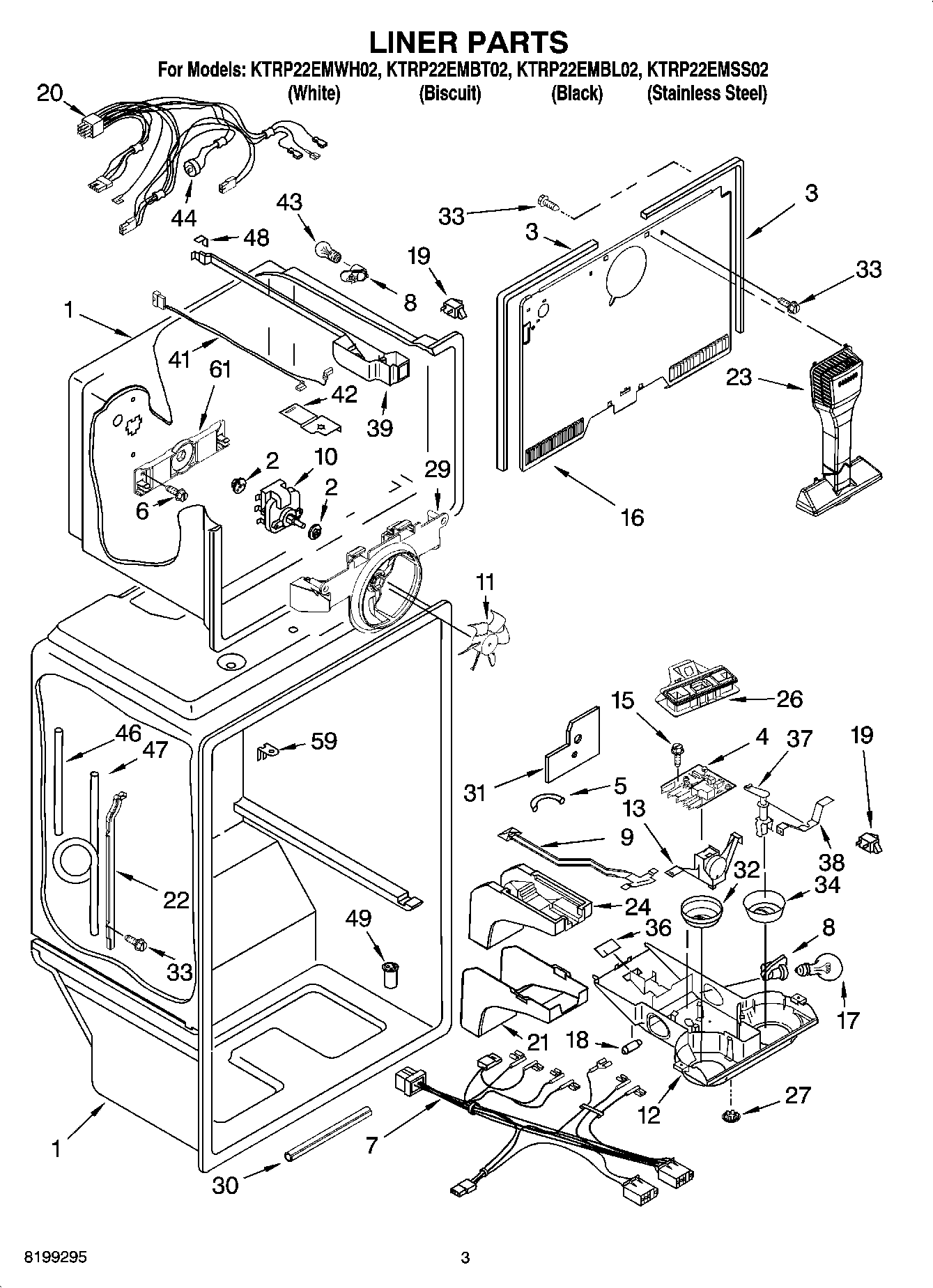

KTRP22EMWH02 02 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5Thermostat Tube Barrier
6WP488163 Whirlpool Refrigerator Screw
7Wire Assembly, Control Box
84387478 Whirlpool Refrigerator Light Socket
9Damper, Air
10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assy. (Includes Items 5, 18 & 36)
15Screw
16Cover, Evaporator
17RANGE ONLY 40W 120V APPL BULB
18Weight, Thermal
19W11384469 Whirlpool Door Switch
20Wire Assembly, Freezer Compartment (Includes Illus. 41)
21Cover, Air Diffuser
22Cover, Tubing
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
26Air Separator Assembly
27940014 Whirlpool Refrigerator Primary Button Plug
29BRACKET, FAN MOTOR
30Insulation, Water Tube
31Shield, heat
32W10829461 Whirlpool Refrigerator Thermal Knob
33WP489478 Whirlpool Refrigerator Screw
34Knob, Damper
36WP2205079 Whirlpool Refrigerator Seal
37Post, Damper
38Bracket, Damper Knob
39Housing Base
41Wiring Harness, Freezer Light
42Electrical Shield, Freezer Light
434396822 Whirlpool Refrigerator Light Bulb
44WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
46Tube, Water Filter
478201597 Whirlpool Inlet Water Fill Tube Kit Filter
48Gasket, Rear
49WP2210509 Whirlpool Refrigerator Tub Valve
59Clip, Retainer
612254454 Whirlpool Refrigerator Bracket
