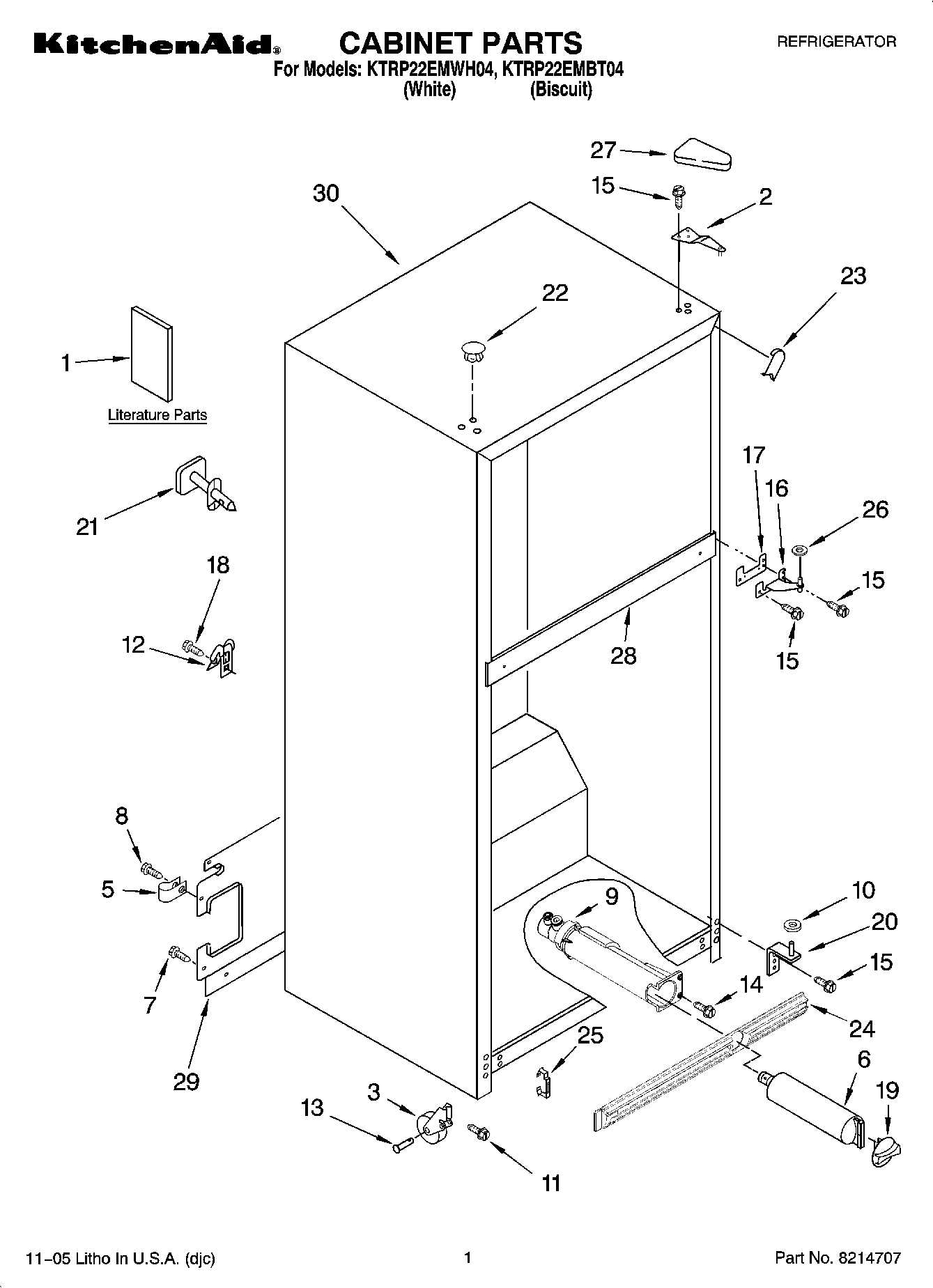

KTRP22EMWH04 01 – CABINET PARTS

Products

PositionProduct
1Modular Icemaker Service Sheet
1Customer Instruct Sheet, Wtr Filter
1Service & Wiring Sheet
1Customer Instructions
1Energy Label
1Use & Care Guide
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP488366 Whirlpool Refrigerator Clamp
6EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl
7WP489427 Whirlpool Refrigerator Screw
8WP488787 Whirlpool Refrigerator Screw
9WP2225521 Whirlpool Water Filter Housing
10WP487576 Whirlpool Washer
11WP3400504 Whirlpool Refrigerator Screw
12549193 Whirlpool Refrigerator Power Clamp
13W11594405 Whirlpool Axle
14SCREW
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
19WP2186494W Whirlpool Water Filter Cap
19WP2186494T Whirlpool Water Filter Cap
20WP2254473 Whirlpool Refrigerator Door Hinge
21Fitting, Water Tube (Not Serviced)
22Hole Plug (6) (Biscuit)
22WP2151652 Whirlpool Refrigerator Button Plug
23W10283958 Whirlpool Refrigerator Filler
23WPW10283959 Whirlpool Refrigerator Filler
24Grille (Includes Illus. 39) (Biscuit)
24Grille (Includes Illus. 27) (White)
25CLIP, GRILLE
26WP489467 Whirlpool Hinge Shim
272213364 Whirlpool Refrigerator Cover
27WP2213360 Whirlpool Refrigerator Cover
28Rail Center (Not Serviced)
29Cover, Unit
30Cabinet (Not A Serviceable Part)
