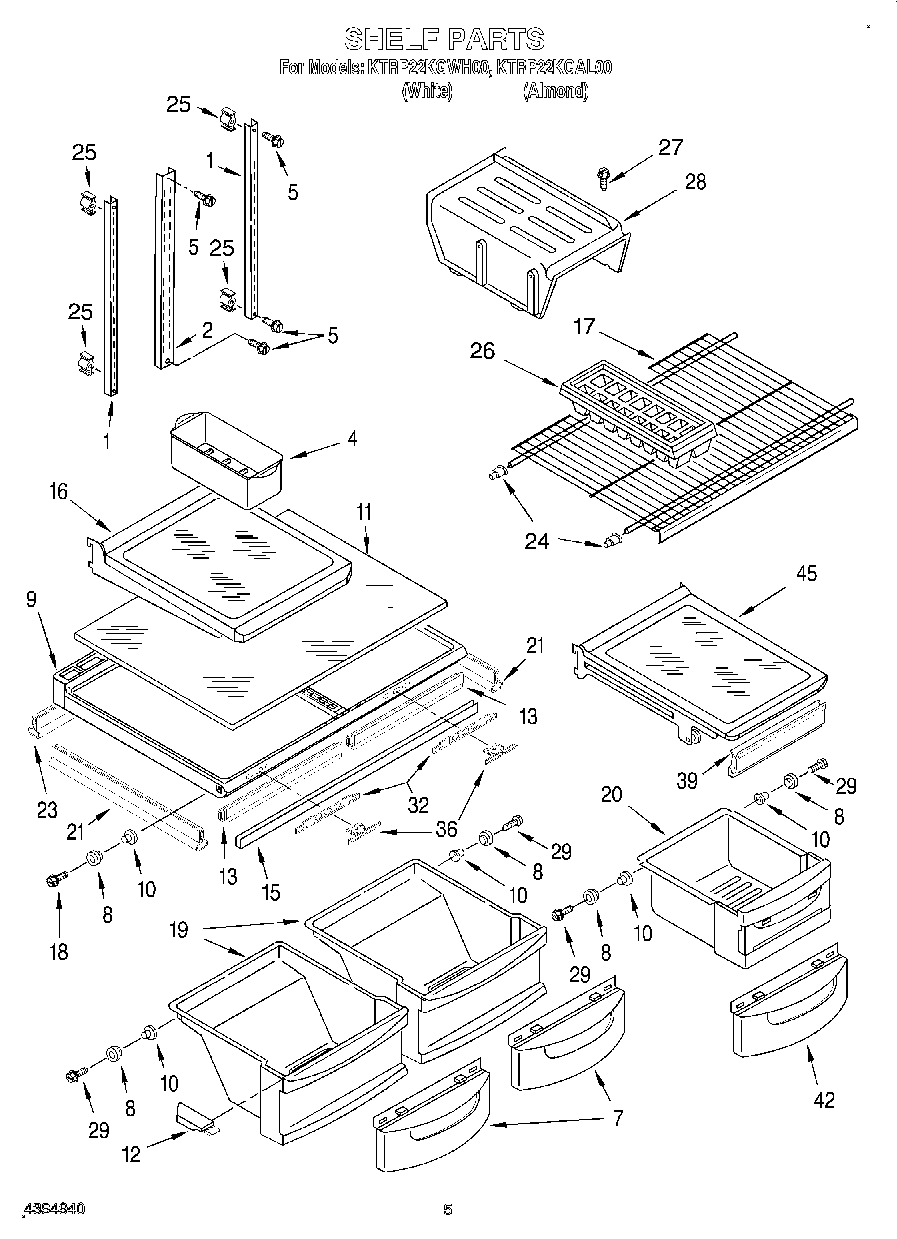

KTRP22KGAL00 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
4	W10136387A Whirlpool Refrigerator Egg Container
5	W11544659 Whirlpool Refrigerator Screw
7	Window
8	Roller
9	Crisper Cover (Includes Rollers)
10	Eyelet, Roller
11	Glass, Crisper Cover
12	Cap, Crisper (Left Side)
12	Cap, Crisper (Right Side)
13	WP1125528 Whirlpool Refrigerator Gasket
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard (3) (Includes Rollers)
17	Shelf, Freezer
18	WPW10272364 Whirlpool Refrigerator Screw
19	Pan, Crisper (Includes Rollers)
20	Pan, Meat (Includes Rollers)
21	Gasket, Crisper Cover (Side) (4)
23	Gasket, Pan Cover-Rear
24	2163762 Whirlpool Refrigerator Cup Assembly
25	Support, Screw
26	WP841180A Whirlpool Microwave Glass Turntable Tray
27	WP489478 Whirlpool Refrigerator Screw
28	Shelf, Ice Tray
29	WP489261 Whirlpool Refrigerator Screw
32	Slide, Humidity
36	Button, Humidity Control
39	Gasket, Front
42	Window, Meat Pan
45	Shelf Assembly, Spillguard
51	Featurepak (Includes 4, 6, 8, 10, 16, 20, 30, 41, 42,45) See also Refrigerator Door Parts and Freeze
