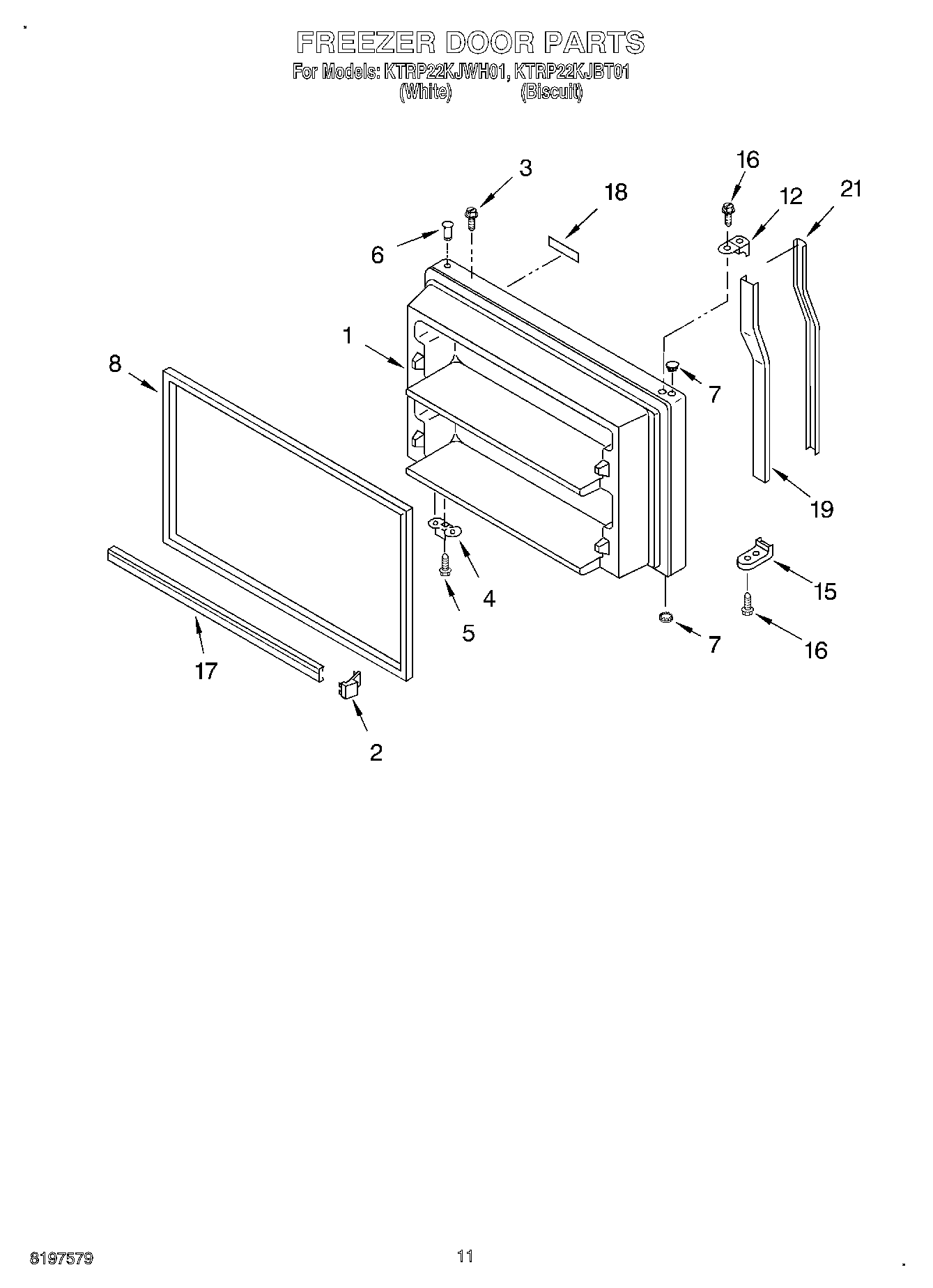

KTRP22KJWH01 06 – FREEZER DOOR, OPTIONAL

KTRP22KJWH01 06 – FREEZER DOOR, OPTIONAL

Written by

in

KTRP22KJWH01 06 – FREEZER DOOR, OPTIONAL

Products

PositionProduct
1Freezer Door (Includes No.6 & No.8) (Biscuit)
1Freezer Door (Includes No.8) (White)
2ENDCAP
3WP8281206 Whirlpool Refrigerator Screw
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212649 Whirlpool Refrigerator Button Plug
82177310 Whirlpool Refrigerator Door Gasket
8WHITE DOOR GASKET-FIP
12Endcap
12Endcap (Biscuit)
15Endcap
15Endcap (Biscuit)
16WP489357 Whirlpool Recessed Screw
17Trim, Door Shelf (2)
18Nameplate (White an
18Nameplate (Biscuit)
19Insert, Retainer (White)
19Insert, Handle (Biscuit)
21606755 Whirlpool Refrigerator Bag
21511873 Whirlpool Refrigerator Paint
214392901 Whirlpool Biscuit Spray Paint
21350942 Whirlpool Spray Paint
21212643 Whirlpool Refrigerator Permagum Sealer
21WPL 799832
21Insert, Handle (White)
214392899 Whirlpool Biscuit Touch-Up Paint
21799344 Whirlpool Refrigerator Paint
2172017 Whirlpool Appliance Touch-Up Paint White
21350930 Whirlpool White Spray Paint
2172032 Whirlpool Touch Up Paint Black
21285006 Whirlpool Spray
21WPL 799833
21WPL 876029
21CEMENT, ALUMILASTIC (1 1/4 OZ.)
21TAPE, VINYL (3/4 X 108“)
21PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
21Torx Key
21WP542638 Whirlpool Refrigerator Grease
21WP505587 Whirlpool Refrigerator Sealer
21Enamel, Black (1 Qt. Uncut)
21WP503695 Whirlpool Refrigerator Sealer
21876370 Whirlpool Refrigerator Insulation
21833938 Whirlpool Refrigerator Terminal
21Insert, Handle (Biscuit)
