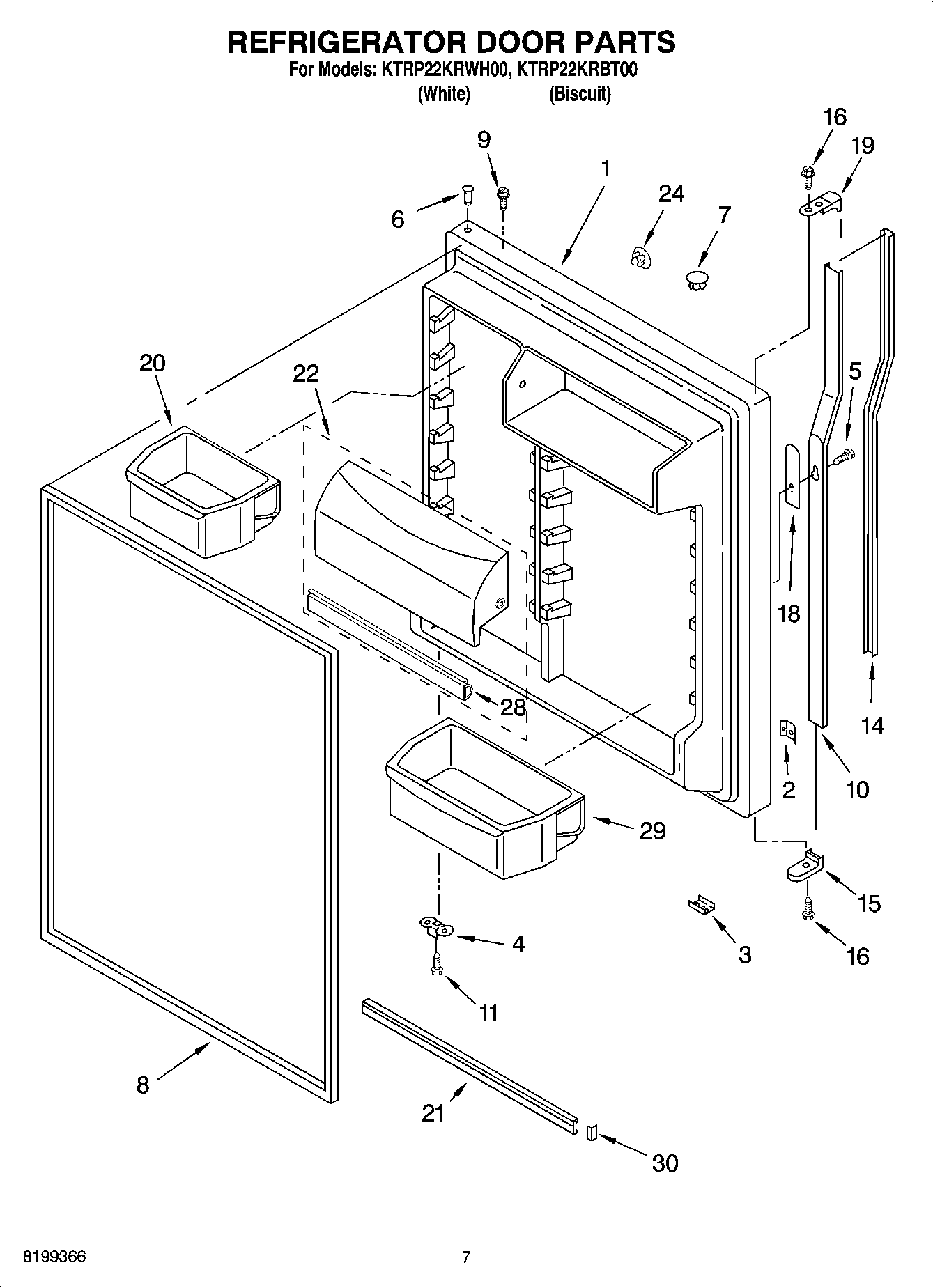

KTRP22KRBT00 04 – REFRIGERATOR DOOR PARTS

KTRP22KRBT00 04 – REFRIGERATOR DOOR PARTS

Written by

in

KTRP22KRBT00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes No.8) (White)
1Refrigerator Door (Includes No.6 & No.8) (Biscuit)
2WP939101 Whirlpool Refrigerator Plate
3Tap Plate
4W11745278 Whirlpool Bracket
5Screw
6WP2183003 Whirlpool Thimble
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159061 Whirlpool Refrigerator Door Gasket
9WP8281206 Whirlpool Refrigerator Screw
10Retainer, Insert (White)
10Retainer, Insert (Biscuit)
11WP488921 Whirlpool Refrigerator Screw
14Insert, Handle (Biscuit)
14Insert, Handle (White)
15Endcap, Bottom (Biscuit)
15Endcap, Handle (White)
16WP489357 Whirlpool Recessed Screw
18Spacer
19Endcap (Biscuit)
19Endcap
20Bin, Door Shelf (2)
21WPW10421486 Whirlpool Refrigerator Door Trim
22Door, Compartment (Includes 9)
24WP2200936 Whirlpool Refrigerator Handle Plug
24WP2189000 Whirlpool Refrigerator Handle Plug
28Gasket, Door Compartment
29Bin, Door Shelf
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
