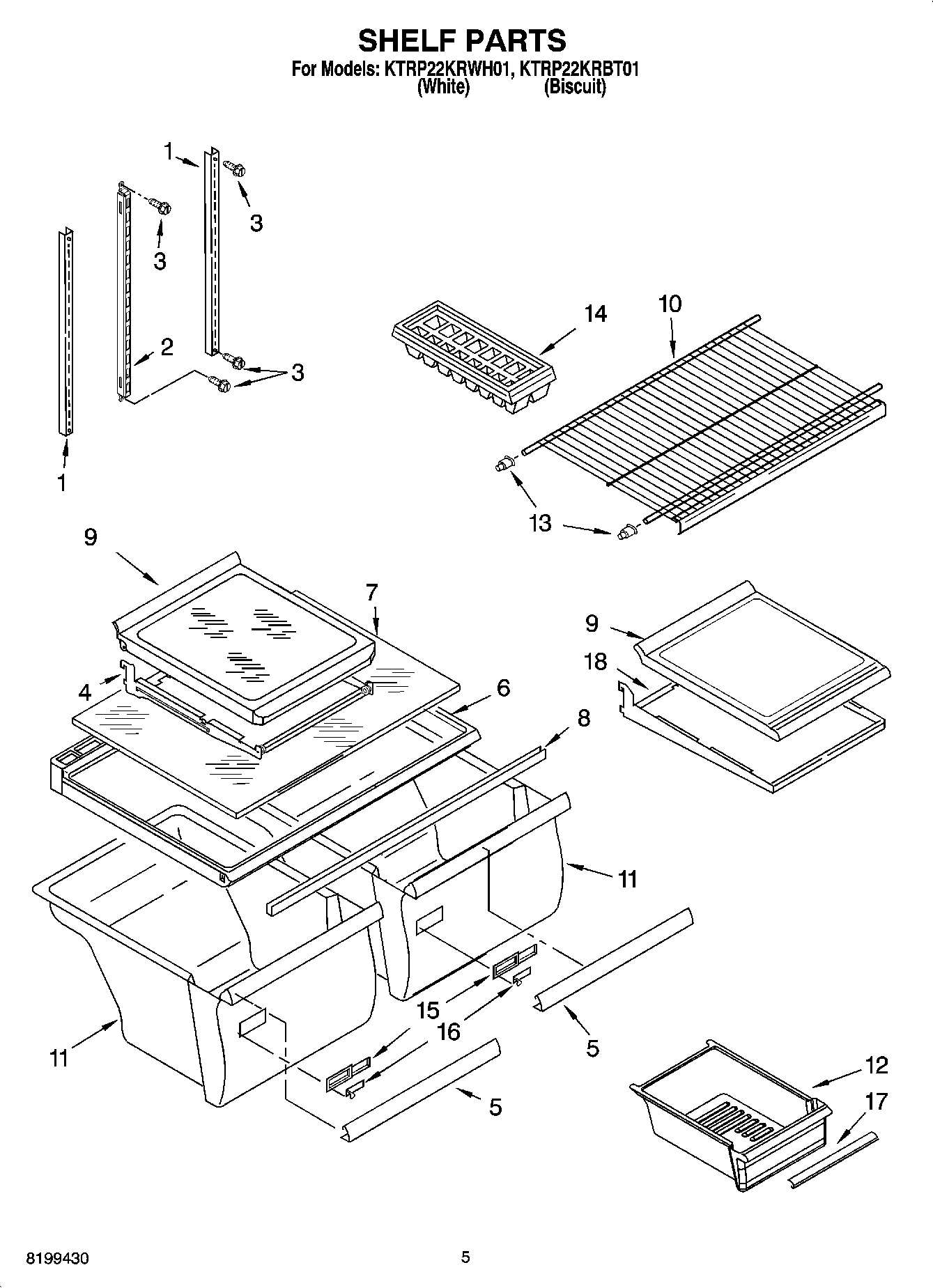

KTRP22KRBT01 03 – SHELF PARTS

KTRP22KRBT01 03 – SHELF PARTS

Written by

in

KTRP22KRBT01 03 – SHELF PARTS

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
3WP489478 Whirlpool Refrigerator Screw
4Frame Assembly, Shelf
5WP2195341 Whirlpool Refrigerator Pan Trim
6WP2314549 Whirlpool Refrigerator Cover
7WP2176225 Whirlpool Glass Shelf
8WP2172748 Whirlpool Drawer Support
9WP999520 Whirlpool Refrigerator Glass Shelf
10Shelf, Freezer
11W10854037 Whirlpool Refrigerator Crisper Pan
12WP2218132K Whirlpool Crisper Meat Pan
132163762 Whirlpool Refrigerator Cup Assembly
14WP841180A Whirlpool Microwave Glass Turntable Tray
15WP2212446 Whirlpool Refrigerator Control Body
16WP2176222 Whirlpool Refrigerator Slide
17Trim, Meat Pan
18Frame Assembly, Meat Shelf
